Composite Access Cover

composite access cover

Composite

Access Covers

With a large range of access covers to compliment our access chamber systems, individual needs can be met with a bespoke cable protection combination. Cubis AX-S™ Composite covers offer a lightweight solution with no reduction in loading performance. A wide range of sizes can be manufactured utilising multi-cover frames, with options for bespoke customer badging.

AX-S™ Composite covers are designed for use with STAKKAbox™ Modula chambers

How do access covers work? Cubis access covers are used in combination with access chamber systems to protect the infrastructure networks below. A suitable frame with additional cross pieces are fitted to the chamber top. The AX-S™ Composite covers are then placed carefully into the frame, with grommets added in the lifting points and the cover secured using supplied screws.

Composite Access Chamber Cover Installation

Composite Cover Installation

Access Covers

Composite Access Cover

Features & Benefits

Variable Sizes

Composite Covers can be manufactured in a variety of sizes, bespoke to unique requirements. Cross-beams and cross-pieces can be used to build multi cover units.

Bespoke Identity

Covers can be badged with bespoke information to enable easy identification by operatives.

Access Cover For Safety

When it comes to keeping infrastructures safe, composite access covers are a perfect solution. Covers are subtle and disguised as to deter attention from thieves. This eliminated the cost of additional safety measures such as the guarding of open chambers. AX-S™ Composite access covers are fitted with bolt-down locking which can be specified to the end user’s requirements – preventing access to the infrastructure network below.

Long lifespan

Cubis access covers have log lifespans, reducing costs for replacements by the end user.

Design

An anti-slip design results in a more efficient system, with this access cover featuring a non-slip tread pattern, exceeding a Slip Resistance Value of 80. Covers can also be easily removed due to its lightweight nature of under 30 kg.

Accessible Access Cover

Permeable to Radio Waves, the composite access cover allows for telemetry readings to take place easily, without removing the cover.

Composite Access Covers How It Works


How The Composite Cover Works

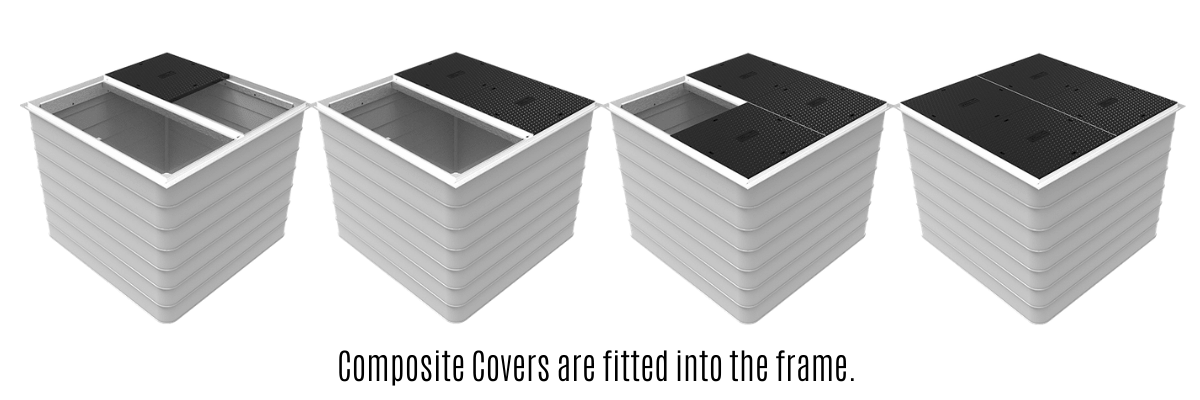

Covers are fitted into a suitable frame from the Cubis range of access chambers. Network infrastructures are then protected with a tamper-proof system. Being under 30kg, the composite cover’s lightweight properties make it easy to install and remove when needed.

AX-S™ frames are manufactured to meet the exact specification of each project. The range has been developed to offer installers tailored solutions to problems experienced on site.

AX-S™ Composite covers meet the vertical load classes of A15, B125 and C250 set by EN124.

➡ See also | Access Chambers | Cable Protection | Cable Trough



Composite Cover MaterialMaterials

GRP & Rolled Steel

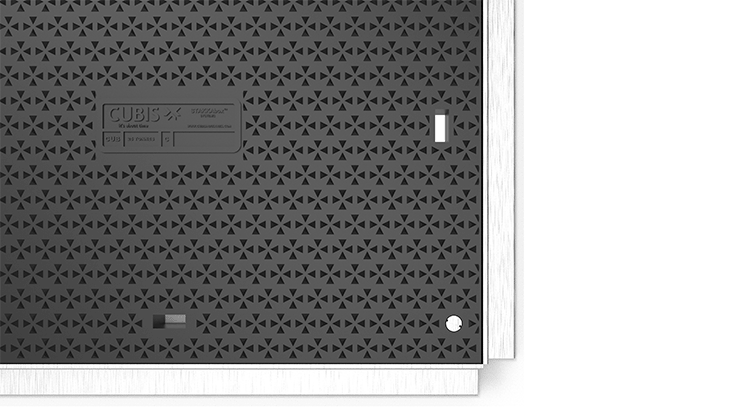

The frames, covers and cross pieces are manufactured from rolled steel section in compliance with BS1449 and galvanised in compliance with BS EN ISO 1461.

Covers are manufactured from Glass Reinforced Polyester Resin (GRP).







Composite Cover SizesComposite Cover Sizes

Composite covers are available in a range of standard sizes as well as available as bespoke covers using cross-beams and cross-pieces, to build multi-cover units, with options in security and badging.









Access Cover Load Rating

Load Rating

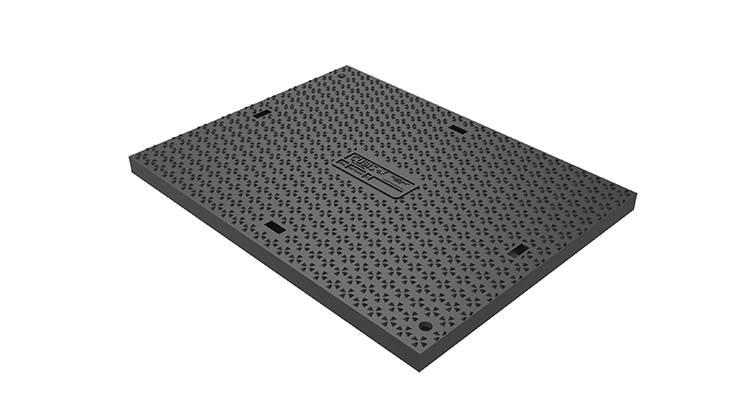

AX-S™ Composite covers meet the vertical load classes of A15, B125 and C250 set by EN124.

A15: Suitable for: pedestrians only areas

B125: Suitable for: footways, pedestrian areas and comparable areas, car parks or parking decks.

C250: Suitable for: kerbside channels







Access Cover

Technical Specification

Cover Size

Weight

Product Code

300 x 300 A15 7.8.0 kg FCCOMP-03000300-CR00*A**1
600 x 450 A15 21.0 kg FCCOMP-06000450-CR00*A**1
600 x 600 A15 24.6 kg FCCOMP-06000600-CR00*A**1
800 x 800 A15 68.4 kg FCCOS2-08000800-CR00*A**4
900 x 600 A15 38.4 kg FCCOMP-09000600-CR00*A**2
1000 x 1000 A15 98.9 kg FCCOS7-10001000-CR00*A**4
1200 x 1200 A15 100.6 kg FCCOS3-12001200-CR00*A**4
1220 x 1220 A15 100.0 kg FCCOMP-12201220-CFRM*A**4
1310 x 850 A15 95.0 kg FCCOMP-13100850-CR00*A**6
1500 x 900 A15 109.0 kg FCCOMP-15000900-CSRA*A**6
1900 x 1200 A15 158.6 kg FCCOS4-19001200-CR00*A**6
2000 x 1000 A15 161.0 kg FCCOMP-20001000-CRRS*A**8
2900 x 1200 A15 283 kg FCCOMP-29001200-CRRS*A**+
3000 x 1500 A15 353 kg FCCOMP-30001500-CSRS*A**+
 5200 x 1400 A15 542 kg FCCOMP-52001400-CRRS*A**+
 300 x 300 B125 7.8 kg FCCOMP-03000300-CR00*B**1
 450 x 300 B125 12.3 kg FCCOMP-04500300-CR00*B**1
 450 x 450 B125 17.4 kg FCCOMP-04500450-CR00*B**1
 500 x 500 B125 31.9 kg FCCOS1-05000500-CR00*B**1
 530 x 380 B125 25.6 kg FCCOMP-05300380-CSRS*B**1
 600 x 450 B125 22.6 kg FCCOMP-06000450-CR00*B**1
 600 x 600 B125 28.4 kg FCCOMP-06000600-CR00*B**1
 750 x 750 B125 90.1 kg FCCOMP-07500750-CR00*B**4
 800 x 800 B125 82.9 kg FCCOS2-08000800-CR00*B**4
 900 x 600 B125 45 kg FCCOMP-09000600-CR00*B**2
 900 x 900 B125 84.7 kg FCCOMP-09000900-CR00*B**4
 915 x 445 B125 38.7 kg FCCO04-09150445-CRFF*B**2
 915 x 610 B125 49.4 kg FCCOMP-09150610-CR00*B**2
 915 x 915 B125 85 kg FCCOMP-0915915-CR00*B**4
 1000 x 1000 B125 101.7 kg FCCOS7-10001000-CR00*B**4
 1200 x 600 B125 92.2 kg FCCOMP-12000600-CR00*B**2
 1200 x 900 B125 108.2 kg FCCOMP-12000900-CR00*B**4
 1200 x 1200 B125 129.3 kg FCCOS3-12001200-CR00*B**4
 1300 x 1300 B125 200 kg FCCOMP-13001300-CRRS*B**9
 1310 x 610 B125 66.9 kg FCCO06-13100610-CSR7*B**3
 1310 x 850 B125 127.4 kg FCCOMP-13100850-CR00*B**6
 1500 x 900 B125 142 kg FCCOMP-15000900-CRRS*B**6
 1500 x 1000 B125 165.9 kg FCCOMP-15001000-CRRS*B**6
 1500 x 1500 B125 225.0 kg FCCOMP-15001500-CR00*B**9
 1600 x 1600 B125 297 kg FCCOMP-16001600-CRRS*B**9
 1800 x 900 B125 163 kg FCCOMP-18000900-CRRS*B**6
 1800 x 1800 B125 328 kg FCCOMP-18001800-CRRS*B**9
 1900 x 600 B125 99 kg FCCOMP-19000600-CRRS*B**4
 1900 x 1200 B125 216.2 kg FCCOS4-19001200-CR00*B**6
 2000 x 1000 B125 258 kg FCCOMP-20001000-CRRS*B**8
 2500 x 1200 B125 320 kg FCCOS5-25001200-CR00*B**8
 2900 x 1200 B125 384 kg FCCOMP-29001200-CRRS*B**+
 3000 x 1200 B125 352.2 kg FCCOMP-30001200-CR00*B**+
 5000 x 1000 B125 582 kg FCCOMP-50001000-CRRS*B**+
 300 x 300 C250 19.5 kg FCCOMP-03000300-CR00*C**1
 445 x 445 C250 33.0 kg FCCOMP-04450445-CF***C**1
 450 x 300 C250 19.6 kg FCCOMP-04500300-80HS*C**1
 450 x 450 C250 24.1 kg FCCO45-04500450-80HS*C**1
 600 x 450 C250 37.2 kg FCCO01-06000450-80HS*C**1
 600 x 600 C250 41.5 kg FCCO66-06000600-CSHT*C**1
 900 x 900 C250 131.0 kg FCCOMP-09000900-CR00*C**4
 915 x 610 C250 88.2 kg FCCOMP-09150610-CR00*C**2
 915 x 915 C250 127.5 kg FCCOMP-09150915-CR00*C**4
 1000 x 600 C250 101.3 kg FCCOMP-10000600-CRRS*C**2
 1000 x 1000 C250 165 kg FCCOS7-10001000-CR00*C**4
 1200 x 1200 C250 173.6 kg FCCOS3-12001200-CR00*C**4
 1310 x 850 C250 168.1 kg FCCOMP-13100850-CR00*C**6
 1500 x 900 C250 224 kg FCCOMP-15000900-CRRS*C**6
 1700 x 1700 C250 391 kg FCCOMP-17001700-CRRS*C**9
 1800 x 900 C250 244.2 kg FCCOMP-18000900-CR00*C**6
 1800 x 1800 C250 443.0 kg FCCOMP-18001800-CRRS*C**9
 1900 x 1200 C250 342 kg FCCOS4-19001200-CR00*C**6
 2000 x 1500 C250 483 kg FCCOMP-20001500-CSRS*C**+
 2500 x 1200 C250 430 kg FCCOS5-25001200-CRRS*C**8
 2500 x 1500 C250 533.1 kg FCCOMP-25001500-CSRS*C**+
 2500 x 2500 C250 791.1 kg FCCOMP-25002500-CRRS*C**+
 2700 x 900 C250 364.6 kg FCCOMP-27000900-CRRS*C**8+
