12 Cal Arc Flash Clothing, PPE & Protection

Arc Flash Clothing

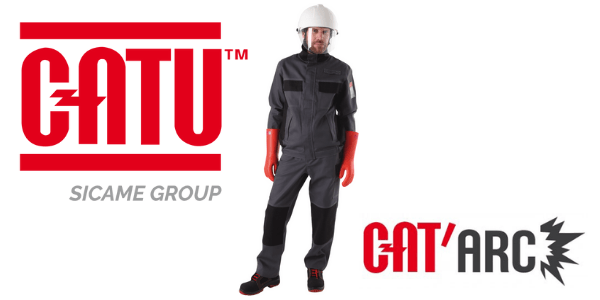

CATU KIT-ARC-12 is a comfortable, lightweight arc flash jacket and protective coverall kit (12 cal/cm²). 12 cal/cm² refers to the units of incident energy that the PPE and clothing kit can withstand – should you require guidance on selection and use of an Arc Flash Calculator please call T&D.

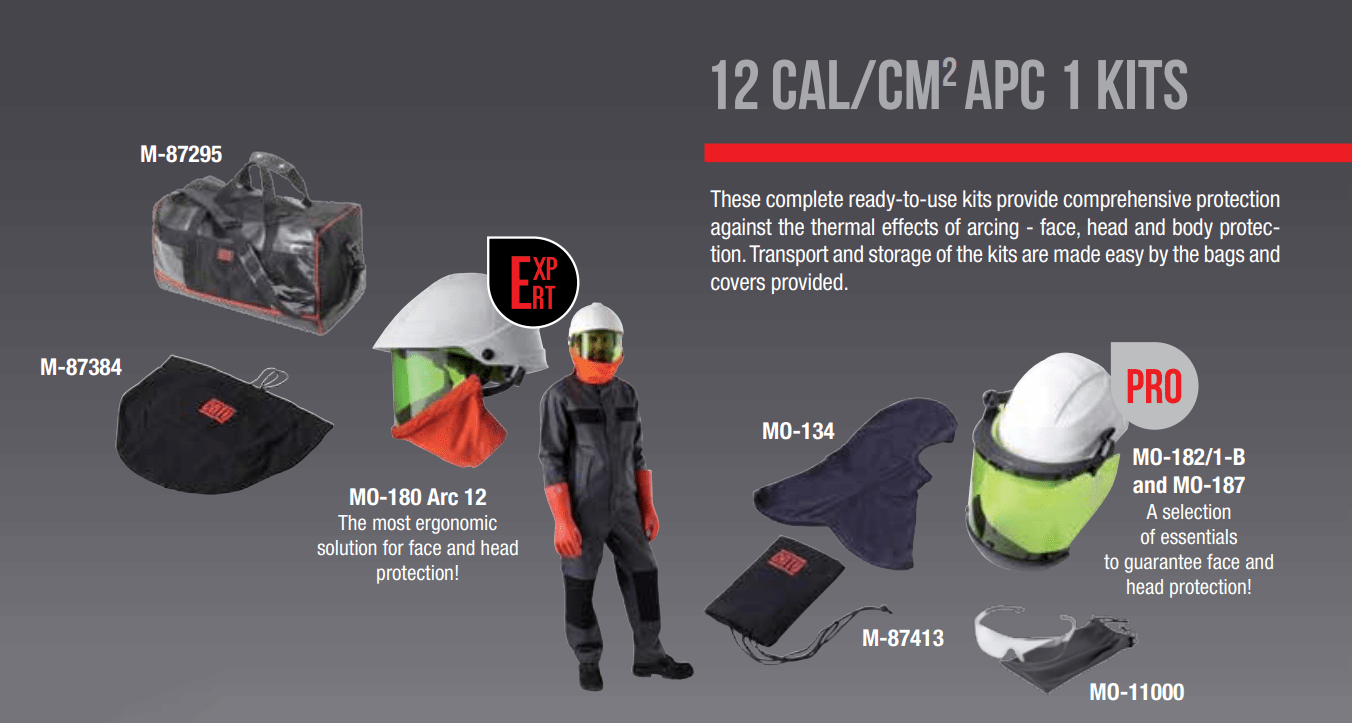

Each CATU KIT-ARC-12 arc flash protection kit includes:

  • Arc flash face shield – CATU MO-187
  • Helmet – CATU MO-182/1-B
  • Safety glasses – CATU MO-11000
  • Protective hood – CATU MO-134
  • Arc flash jacket or coverall made from Indura Ultra Soft Fabric
  • CATU kit provides 12 cal/cm² arc flash protection
  • Complete range of Arc Flash Products & Clothing Protection

Including  ➡



CATU KIT-ARC-12

IEC 61482-2 & NFPA 70E Compliant Arc Flash Clothing

CATU KIT-ARC-12 are both IEC 61482-2 (Standard Specification for Thermal Effects of an Electrical Arc Event) and NFPA 70E compliant. NFPA 70E assists companies and their employees in avoiding serious workplace injuries, accidents and fatalities caused by electrocution, arc flash and arc blast. CATU Electrical 12 cal arc flash kits are CE marked.

CATU KIT-ARC-12 Arc Flash Protective Clothing Kits 12 Cal

Arc flash clothing kit provides protection against arc hazards up to 12 Cal/cm²

CATU KIT-ARC-12 ARC FLASH PROTECTIVE CLOTHING KITS

Technical Specification

CATU Part Number Description
MO-187 1 x Face shield with chin cup 12 cal/cm², absorbs > 99.9% of harmful UV radiation, tested to ASTM F2178 specifications
MO-182/1-B 1 x ABS helmet electrically insulated EN397, EN50365, ANSI Z89.1, 20kV
MO-11000 1 x Safety Glasses EN 166/EN 170
MO-134 1 x Arc flash protective hood (12 cal/cm²), only with coverall and blue short jacket
N/A 1 x Protective coverall (12 cal/cm²) *1, ASTM F1506 and NFPA 70E Standards
or
1 x Arc flash protective jacket (12 cal/cm²), ASTM F1506 and NFPA 70E Standards
M-87413 1 x Carrying bag for face shield and helmet
M-87295 1 x All kit carrying bag

CATU KIT-ARC-12 Arc Flash Protective Clothing Kits

Product Selection

CATU Arc Flash Kit Part Number Description Arc Flash Protection & Capacity (cal/cm²) Weight (kg)
CATU KIT-ARC-12-C-(*) *1 Coverall 12 cal/cm² 4.2kg
CATU KIT-ARC-12-J-(*) *2 Long hooded jacket 12 cal/cm² 3kg
CATU KIT-ARC-12-JP-(*) *3 Short jacket without hood & pants 12 cal/cm² 4.4kg

(*) CATU reference to be completed by size required – M, L or XL as standard. Size S to 3XL available on request.



How to Sizes & Select Arc Flash Clothing

The following Tables provide the Chest (A), Waist (B) and Hip (C) measurements to enable the correct selection of arc flash clothing and garments to provide electrical protection including jackets, trousers and coveralls.

Arc Flash Jackets
Size to order XS S M L XL 2XL 3XL 4XL 5XL
A – Max chest measurement (cm) 90 94 98 101 105 109 113 117 121
C – Max hip measurement (cm) 92 94 98 102 106 110 113 117 121
The chest measurement defines the size of the garment as long as the hip measurement is less than or equal to the measurement shown in the table. If not, choose the next size up.
Arc Flash Trousers
Size to order XS S M L XL 2XL 3XL 4XL 5XL
C – Max hip measurement (cm) 90 94 98 102 106 110 113 117 121
Arc Flash Coveralls
Size to order XS S M L XL 2XL 3XL 4XL 5XL
A – Max chest measurement (cm) 90 94 98 101 105 109 113 117 121
B – Max waist measurement (cm) 92 96 100 104 108 111 115 119 123
C – Max hip measurement (cm) 102 106 110 113 117 121 125 129 133
The chest measurement defines the size of the garment as long as the hip measurement is less than or equal to the measurement shown in the table. If not, choose the next size up.
Arc Flash Clothing

Chest (A) Waist (B) Hip (C) | Clothing Size Guide

CATU Electrical Safety

T&D stock CATU Electrical Safety Equipment to protect Senior Authorised Persons (SAP’s), Overhead Linesmen, Cable Jointers and High Voltage Substation Engineers working on underground cables and overhead conductors – typical applications include LV, HV & EHV cable jointing and terminating, fuse pulling, switchgear commissioning, racking circuit breakers, electrical switching and live working on medium and high voltage electricity networks.
