Cable Cleats For Triplex Cables

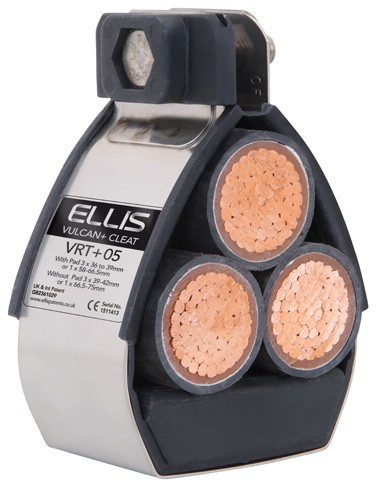

The triplex cable surround can be incorporated within a single cable cleat to secure three single core cables which are spirally twisted together (triplex cable).

The triplex cable cleat surround is manufactured from LSF zero halogen polymeric material. The surround overcomes the twist in the cable to allow triplex cable cleating at any point along the length.

UK Patent GB 238 9970 and tested in line with EN 50368.

Triplex Cable Range

Triplex Cable Part Number Triplex Cable Range Depth (mm) Weight (g)
Min dia (mm) Max dia (mm)
SFT26 24 28 62 67.3
SFT31 / SF2F+31 28 34 62 / 84 87 / 125
SFT36 / SF2F+36 33 39 62 / 84 113 / 160
SFT43 / SF2F+43 39 47 62 / 109 140 / 272
SFT51 / SF2F+51 47 55 62 / 134 212 / 447

NOTE: SFT2F+XX part numbers refer to a deeper SFT+ moulding to be used with 2F+ and 2A clamps, see below for more detail.

Maximum short circuit test level (within 2F Clamps), 76kA at 600mm cleat spacing.

Cable Cleat Selection

The below table shows the cable cleat selection details for cleats to be used with the SFT surround for Triplex cable

Cable Core Outside Diameter (mm) SFT Outside Diameter
(mm)
Adaptor Type Cleat Vulcan + Cleat Emperor 2F + Clamp 2A Clamp
24 56 SFT26 VRT+03 ES51-59 2F+09 2A-09
25 58 SFT26 VRT+03 ES51-59 2F+10 2A-10
26 59 SFT26 VRT+03 ES51-59 2F+10 2A-10
27 61 SFT26 VRT+04 ES58-66 2F+10 2A-10
28 63 SFT26 VRT+04 ES58-66 2F+10 2A-10
28 64 SFT31 VRT+05 ES58-66 2F+11 2A-11
29 66 SFT31 VRT+05 ES65-73 2F+11 2A-11
30 68 SFT31 VRT+05 ES65-73 2F+11 2A-11
31 70 SFT31 VRT+06 ES65-73 2F+1200 2A-1200
32 71 SFT31 VRT+06 ES65-73 2F+1200 2A-1200
33 73 SFT31 VRT+06 ES65-73 2F+1200 2A-1200
34 75 SFT31 VRT+06 ES73-85 2F+1200 2A-1200
33 76 SFT36 VRT+06 ES73-85 2F+1201 2A-1201
34 78 SFT36 VRT+06 ES73-85 2F+1201 2A-1201
35 80 SFT36 VRT+07 ES73-85 2F+1201 2A-1201
36 82 SFT36 VRT+07 ES73-85 2F+1201 2A-1201
37 83 SFT36 VRT+07 ES73-85 2F+1202 2A-1202
38 84 SFT36 VRT+07 ES73-85 2F+1202 2A-1202
39 86 SFT36 VRT+08 ES84-94 2F+1202 2A-1202
39 88 SFT43 VRT+08 ES84-94 2F+1202 2A-1202
40 89.5 SFT43 VRT+08 ES84-94 2F+1202 2A-1202
41 93 SFT43 VRT+09 ES84-94 2F+131 2A-131
42 94 SFT43 VRT+09 ES84-94 2F+131 2A-131
43 95 SFT43 VRT+09 ES94-118 2F+131 2A-131
44 97 SFT43 VRT+09 ES94-118 2F+131 2A-131
45 99 SFT43 VRT+10 ES94-118 2F+132 2A-132
46 102 SFT43 VRT+10 ES94-118 2F+132 2A-132
47 104.5 SFT43 VRT+11 ES94-118 2F+132 2A-132
47 105 SFT51 VRT+11 ES94-118 2F+132 2A-132
48 107 SFT51 VRT+11 ES94-118 2F+141 2A-141
49 110 SFT51 VRT+12 ES94-118 2F+141 2A-141
50 112 SFT51 VRT+12 ES94-118 2F+141 2A-141
51 114 SFT51 VRT+12 ES94-118 2F+142 2A-142
52 117 SFT51 VRT+12 ES94-118 2F+142 2A-142
53 119.5 SFT51 VRT+13 ES118-130 2F+142 2A-142
54 121 SFT51 VRT+13 ES118-130 2F+151 2A-151
55 123.5 SFT51 VRT+13 ES118-130 2F+151 2A-151

***For part numbers in red the wider SFT2F+ needs to be used to suit the increased depths of the clamps***

Cable Cleats For Triplex Cables

Cable Cleats For Triplex Cables

T&D also distribute a complete range of MV-HV Cable Accessories and Electrical Equipment to support the installation of medium/voltage cables including 11kV/33kV and 66kV/132kV networks.
