MULTIduct Micro Cable Duct Bank

MULTIduct Micro Cable Duct Bank

MULTIduct™ Micro, from Cubis Systems, is a multiple duct bank system used for constructing under road crossings, bridge crossings and linear routes. This multiple duct cable protection system offers a modern alternative to traditional cable ducting systems.

How does Multiduct Micro work?

Duct banks are built by connecting 500mm sections by push-fit system. The MULTIduct™ cable protection system is available in 4 way and 6 way profiles and each duct space offers a space of approximately 50mm x 50mm for cables.

Benefits Of Cubis Cable Protection Systems

  • Lightweight
  • Durable
  • Quick Assembly
  • Buried Cable Routes

See also Access Chambers STAKKAbox | Access Covers

Cable Protection Systems, like the MULTIduct™and MULTIduct™ Micro, can be installed in a variety of different applications and environments. It is also available with multiple different accessories and different sizes.

MULTIduct Micro

Installation Of Cubis' MULTIduct Cable Protection Systems

Installation Of Cubis’ MULTIduct Cable Protection Systems



MULTIduct Micro Cable Protection

Features & Benefits

Multiduct

High Crush Strength

Requiring shallower burial depths and with greater crush resistance than conventional methods, MULTIduct™ Micro does not require any concrete or specialist surround due to its high strength and robust nature. Excavated material can be reused during re-installation reducing time, cost and heavy plant.

Quick Assembly

With Secure One Click Connection System

The MULTIduct Micro cable Protection System offers a unique ‘plush fit system’ that is fast and easy to install. During cable pulling, the unique push-fit connection eliminates any disengagement of the units once installed.

Durable Cable Protection

Less susceptible to drop related damages, MULTIduct Micro offers a durable and lightweight unit that can be easily transported and moved on site.

MUTIduct Micro – A Multiple Duct Combination

Cubs MULTIduct Micro combines multiple cable ducts that would traditionally have been separated.

Lightweight

Weighing under 3kg MULTIduct™ Micro offers significant health and safety advantages. MULTIduct™ Micro is suitable for a single person lift and install, enabling compliance with manual handling regulations. Being lightweight and easy to deploy results in considerable project time and cost savings.

Buried Cable Routes

In conjunction with Cubis’ STAKKAbox™ access chamber systems, MULTIduct™ Micro can offer a more secure ducting system than surface routes. This can help the problem of theft or vandalism to cables.


How The Cubis Multiduct Micro Works

Duct banks are built by connecting 500mm sections by push-fit system. The system is available in 4 and 6 way profiles and each duct space offers a space of approximately 50mm x 50mm for cables.

See also | Access Covers | Access Chambers | Cable Trough

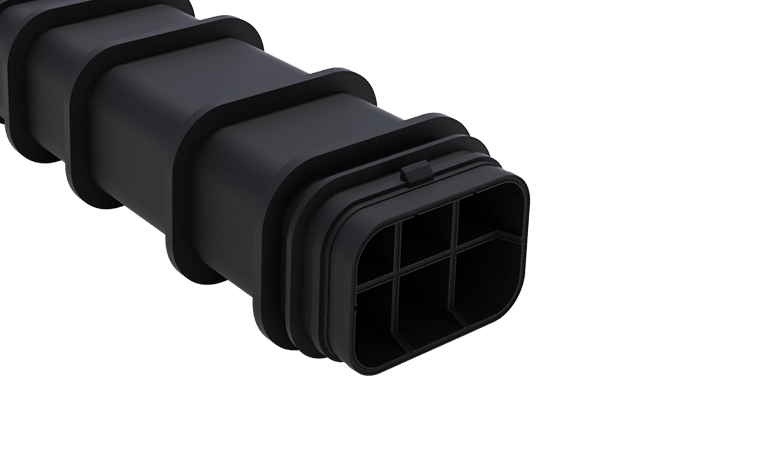

Multiduct Micro MaterialsMaterials

HDPE Cable Protection

Manufactured from high density polyethylene (HDPE), MULTIduct™ Micro offers a lightweight, high strength to weight unit.

MULTIduct™ Micro has a high crush resistance but falls under 3kg per unit in weight, thereby offering significant health and safety advantages.





Available SizesMultiduct Micro Available Sizes

MULTIduct™ Micro is available in the following sizes:

  • Micro – 4 Way
  • Micro – 6 Way









MultiDuct Available Sizes



Cable Protection Multiduct Micro

Technical Specification

Multiduct Micro Size

Weight

Product Code

MULTIduct™ Micro 4 Way 1.9 kg DUMDM4-00004WAY-BK0000000
MULTIduct™ Micro 6 Way 2.6 kg DUMDM6-00006WAY-BK0000000


For additional data sheets contact Thorne & Derrick


Thorne & Derrick are also distributors of Filoform duct sealing products.

Protection of Cables Against Water Ingress (Flood), Gas Migration (Explosion) & Fire – see duct sealing systems for further information
