MV HV Cable Stand

MV HV Cable Stands & Tools for Jointing & Preparation of Cable

Cable Stand for Jointing & Terminating Cables

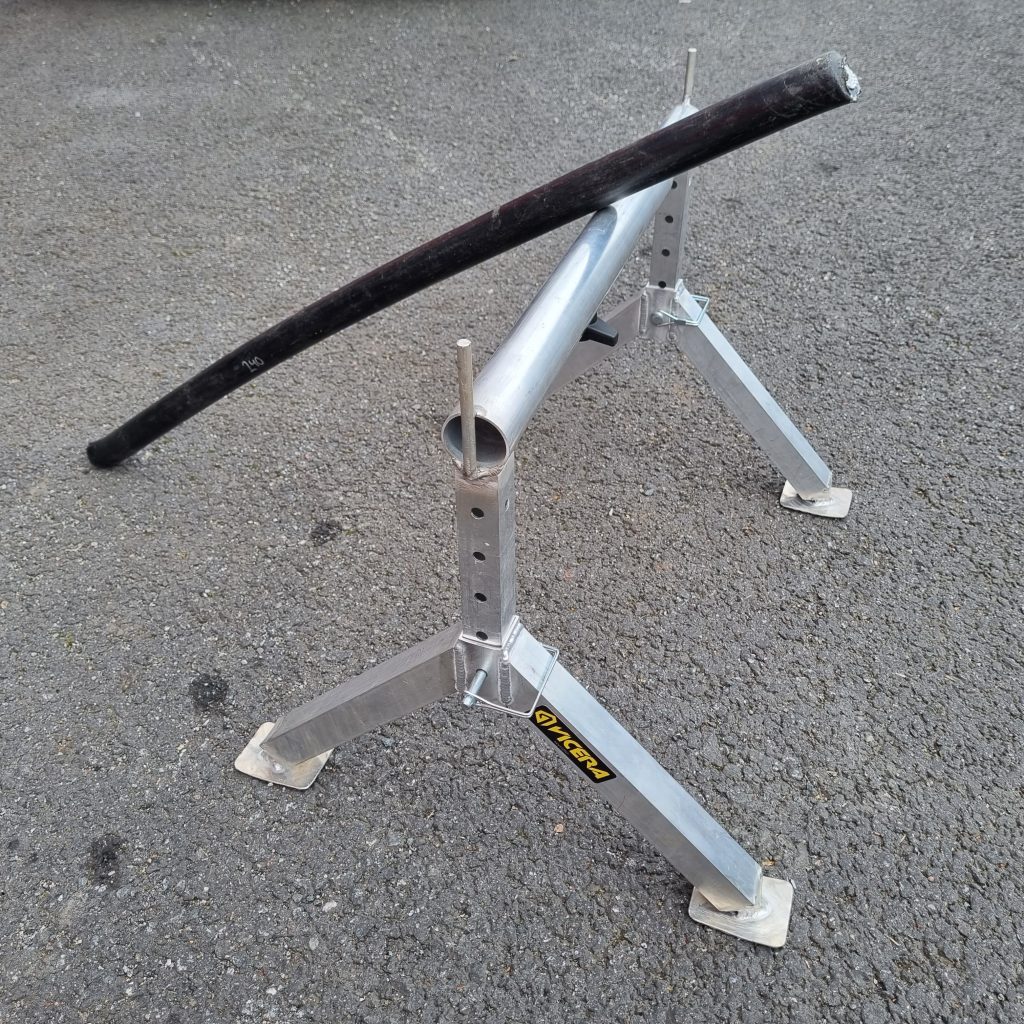

Vicera Cable Stand APU0.5


Vicera Products are Approved by & Used by Nexans | Ensto | Prysmian Group | TE-Connectivity (Tyco)


The Vicera Cable Stand APU0.5 can be used for the installation of medium voltage cables. The MV HV cable stand aids the jointing and preparation of cable and has extensive adjustment options. The end of the aluminium cable stand has pins that help to prevent the cables from falling sideways. Stepless width adjustment and height adjustment with cotter pins.

The legs of the cable stand can be placed in the transport position, so it can fit in a small space. Weighs less than 3 kg and has a load capacity of more than 90 kg.

The height of the horizontal tube can be adjusted between 75 and 640 mm The width is adjustable between 510 and 770 mm.

Thorne & Derrick distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation of low, medium and high voltage power cables into underground trench or duct.

 💡 Product Review | Bart Baeyens (Nexans Technical Customer Manager) – “the cable stands provide the necessary stable position to prepare any cable without issues, thanks to the weight and clever design. You can easily adjust height and position resulting on a comfortable position in every situation.”

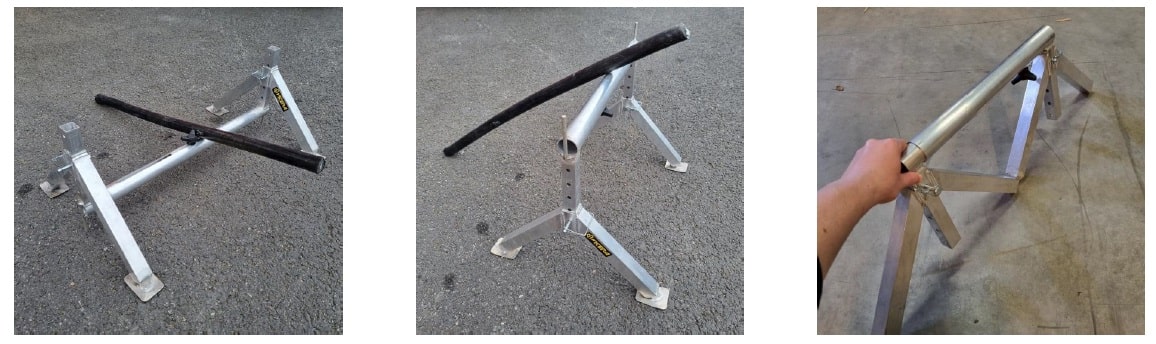

Cable Stand MV HV

Cable Stands for the Support & Stability of LV MV HV Cable During Jointing & Termination


APU0.5 Cable Stand Benefits

  • Good and easy adjustability during the preparation, jointing and termination of Medium & High Voltage Cables
  • Fits into a small cable duct
  • Takes up little space in the car
  • Lightweight, weighs less than 3 kg
  • Load capacity over 90 kg
  • Stepless width adjustment 20” 30” / 51 77 cm
  • Height adjustment 3” 64” / 7,5 64 cm
  • Made of aluminium
Product: Vicera Cable Stand APU0.5
Product Code: 64 136 21
Length: 570 mm
Width: 770 mm
Height: 640 mm
Weight: 2.8 kg


Pictured | Cable stand manufactured by Vicera providing support and stability to medium voltage cables undergoing the termination, connection and installation of Nexans Euromold type P909TB/G.

Pictured | Cable stand manufactured by Vicera providing support and stability to medium voltage cables undergoing the termination, connection and installation of Nexans Euromold type P909TB/G screened separable connectors.
