The KP-Test 5A outer cone voltage detector manufactured by PFISTERER and distributed by Thorne & Derrick can be used for indoor and outdoor medium voltage applications. The detector indicates operating voltage when brought into contact with a conductor.
The Pfisterer KP-Test 5A voltage detector provides a high level of user friendliness and user safety- KP-Test 5A is designed and type tested to Standard IEC 61243-1.
KP-Test 5A delivers reliable verdicts under any ambient conditions and thanks to its new surface layout the KP Test is suitable for internal as well as open air applications.
KP-Test 5A instruments detect the following voltage classes: 20-36kV
Voltage Detectors 33kV 36kV

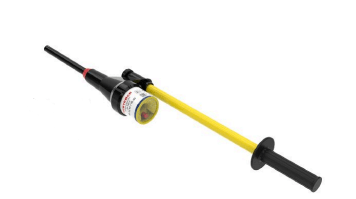

Pfisterer KP- Test 5A Voltage Detector
Technical Specification
- Integrated audible signal for reliable voltage detection even in high noise environments such as medium/high voltage substations
- Suitable for outdoor use on overhead lines in harsh weather including rain and snow
- Extremely bright LEDs in clear visual layout to provide voltage detection without confusion
- Extensive self-test at switch-on of the detector (including contact electrode extension)
- Removable contact electrode top piece included as forked electrode
- Nominal frequency 50Hz, optional 60 Hz
- Length of insulating element when assembled is 520mm
- Diameter of insulating element when assembled is 24mm
See also – Voltage Detectors LV MV HV
When using voltage detectors to establish presence of operating voltages on MV-HV power cables or overhead lines there may be a requirement to apply field equipment earths, portable earthing, to equipment which is working adjacent to Live conductors to discharge any induced voltages.

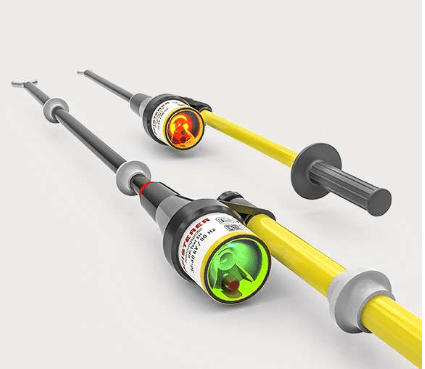

Voltage detectors in the KP-Test 5 range provide dual indication of voltage
Voltage Detectors | MV HV | Switchgear Substations Overhead Lines Up To 36kV
Pfisterer KP-Test 5A
Voltage Detector Technical Specification
Voltage detectors are devices to identify presences of electrical voltage in a given circuit or electrical system. They play a crucial role in ensuring the safety of individuals working with individuals working with electricity by indicating whether a particular area or equipment is energised
Pfisterer-KP-Test-5A-Voltage-Detector-Dimensions
| Product | KP-Test 5A |
| Nominal Voltage | 20-36kV |
| Nominal Frequency | 50Hz |
| Suitable Bag | A1 |
| Suitable Case | K3 |
| Voltage Type | AC |
| Area of Application | Capitative measuring point outer cone connectors according to DIN VDE 0278-629-1 |
| Type of Device | Complete |
| Design | Outdoor and Indoor |
| Handle | Made of ribbed solid rubber |
| Climate Class | W, N |
| Contact Electrode | Ring Electrode with MB internal thread |
| Power Supply | 2 x Lithium batteries |
| Type | KP-Test 5A |
| Type tested according to | IEC 61243-1 |

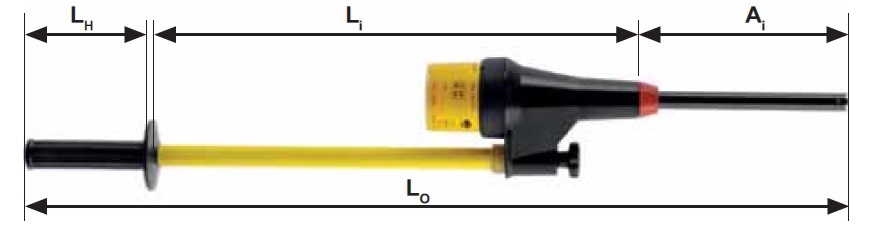

kp-test-5a dIMENSIONS
| Total Length Lg (mm) | 887 |
| Penetration Depth Ai (mm) | 220 |
| Length of handle Lh (mm) | 135 |
| Length of Insulating element Li (mm) | 520 |
| Diameter of Insulating element d (mm) | 24 |
