BT Feeder Pillars
Feeder Pillars

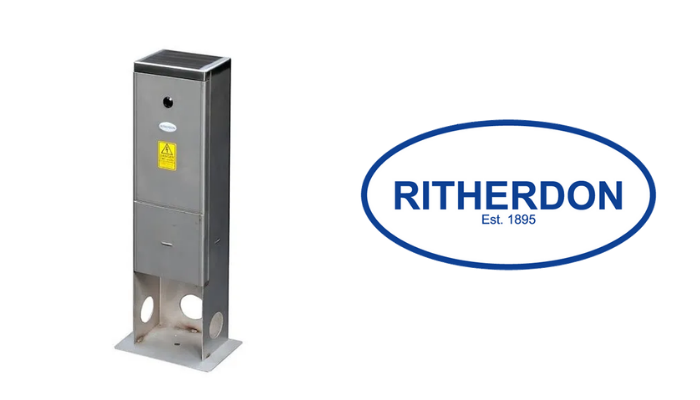

Terminal Interface BT Feeder Pillars form a part of the Ritherdon range of feeder pillars and are designed to house remote monitoring equipment safely away from the signal controller – the pillar is an ideal solution to allow telecommunications engineers to test their equipment without entering the signal controller cabinet.
The BT feeder pillars are root mounted pillars which are generally used for remote monitoring and are usually situated near a Traffic Signals Cabinet.
This is to allow for an engineer to access the remote monitoring equipment without the need to open the nearby signals cabinet.
BT feeder pillars are available in two different heights – 800 mm and 950 mm and two different widths – 90 mm for slim pegs and 150 mm for wide pegs. The unit is designed and manufactured to withstand moderate forced entry, and to ensure a long service life the pillars are manufactured from 2mm thick stainless steel.
features & benefits
The feeder pillars can either be left in their natural state or polyester powder coated, with a choice of standard colours included in the price;
- Black
- Dark Green
- Dark Grey
- Light Grey
- Natural
- Other colours, including an anti-graffiti finish, are available on request. Contact T&D for details
A length of wire provides earth bonding of the door to the body using M6 studs complete with nuts and washers and access for cable ducting is provided through the lower front section of the pillar.
- All BT feeder pillars are supplied with a full-width external grade plywood backboard for the fitting of BT termination equipment.
- The Ritherdon BT terminal interface pillar is designed for housing remote monitoring equipment safely away from the signal controller
- High quality powder coated finish and natural, stainless steel finish available as standard
- Fitted with a standard Tri-key camlock including one key
Pillar dimensions
| Feeder Pillar Designation | Overall Dimensions (Height x Width x Depth) |
Base Plate (Height x Width x Depth) |
Pillar Backboard (Height x Width x Depth) |
| BT PILSM | 800mm x 200mm x 150mm | 280mm x 140mm | 180mm x 400mm |
| BT PILLRG | 950mm x 200mm x 150mm | 180mm x 650mm |
