EV Charging Pillars | Electric Vehicle Power Supply Feeder Pillars for EV Charge Points
EV Charging Pillars
Feeder Pillars
100 Amp 200Amp 400Amp & 630Amp
Standard & Custom Design Pre-Wired EV Charging Pillars | “Site Ready”
Lucy Zodion manufacture a wide range of products suitable to provide Low Voltage Electrical Power Distribution for EV charge points – from distribution network operator (DNO) accredited cut-outs and isolators for on-street chargers, to feeder pillars for electrical vehicle charging. Due to the growing demand for Electric Vehicles (EV) around the world and the resulting strain that the charging infrastructure has on our electrical network, a wide range of safe and compliant electrical power and connection solutions are needed.

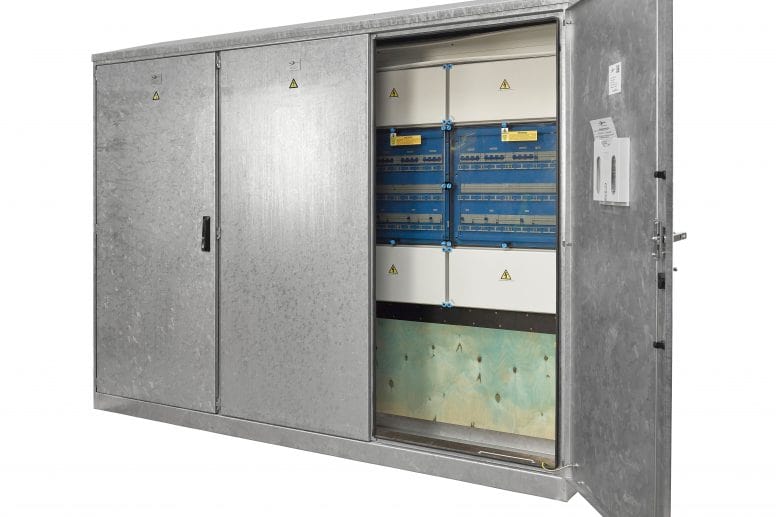

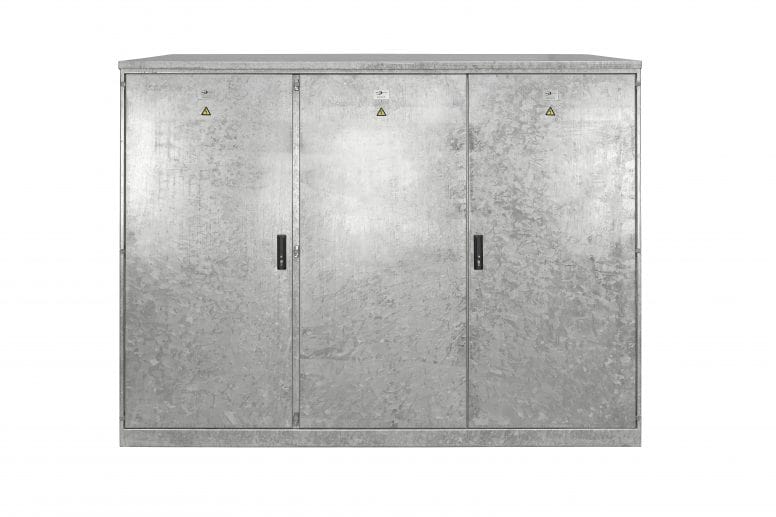

The feeder pillar types are used for LV Power Connections to the electricity grid – these GRP models typically accommodate various LV power requirements including 100A single phase, 100A 3-phase and 200A 3-phase, 400A and 630A. Contact us to discuss your pre-wired or empty enclosure requirements for Low Voltage Power Distribution.
EV charge points fall into four main categories according to the charge speed – fast, rapid and Ultra-rapid.
There are a number of electrical components required for each of these EV Charging Pillars depending on the specified charge speed.
The latest range of Lucy Zodion EV Charging solutions, the EVIS range, utilises the marketing leading Fortress street lighting pillars providing a modular solution for EV infrastructure that simplifies the installation process. The EVIS Pillar Range is designed to meet a wide range of application requirements from 100A – 630A for both Private Supply and New DNO Supplies, in both TT and PME earthing installations.
The EVIS range is available in several configurations designed to meet all onsite layouts, including those with a mix of EV Chargepoints. Outgoing devices include both single-phase and three-phase enabling EV Chargers to be powered, from 7kW – 50kW.
Contact Thorne & Derrick to order a feeder pillar with EV installation, available with fast market-leading delivery times. In the event a non-standard mix is required, our technical sales team can support bespoke solutions tailored to your needs.
fast ev charging power supply feeder pillars
EV charging points rated as ‘Fast’ usually provide power from 7 kW up to 22 kW and can fully charge an Electric Vehicle in under 4 hours. Most often found in retail car parks or on-street where people generally have more time available for vehicle charging.
Common fast electrical power connectors are a tethered Type 1 or a Type 2 socket – these provide electrical charge via a connector cable which is supplied with the vehicle.
Fast EV Charging Pillars – Product Selection
100Amp 200Amp 400Amp & 630Amp Feeder Pillars
EV Charging Pillars Type |
100A Private | 100A DNO | 200A Private | 200A DNO |
7kW (40A SPN) | ✔ | ✔ | ✔ | ✔ |
Max no. of charge points per pillar | 8 | 8 | 16 | 16 |
22kW (40A TPN) | ✔ | ✔ | ✔ | ✔ |
Max no. of charge points per pillar | 3 | 3 | 6 | 6 |
EV Charging Pillars Type |
400A Private | 400A DNO | 630A Private | 630A DNO |
7kW (40A SPN) | – | – | – | – |
Max no. of charge points per pillar | – | – | – | – |
22kW (40A TPN) | ✔ | ✔ | ✔ | ✔ |
Max no. of charge points per pillar | 12 | 12 | 18 | 18 |

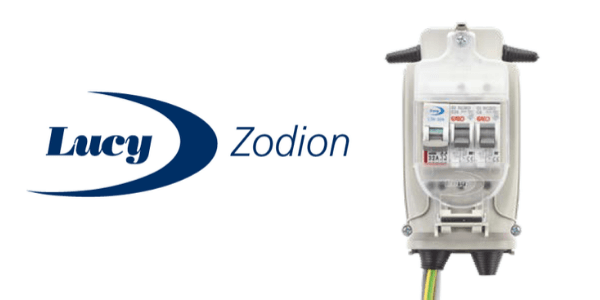

Street Fast EV Charging – Cut-Outs
Cut Out Type | Trojan Midi |
THM0122926 | |
5.8kW (32A SPN) | 2 x RCBO’s (25A/30mA and 6A/30mA) |
Max no of charge points | 1 (per lamppost) |
rapid ev charging power supply feeder pillars
Current ‘Rapid’ AC chargers for electric vehicles are rated at 43kW, while ‘Rapid’ DC units are at least 50 kW.
Lucy Zodion EV supply pillars support both AC and DC charge points and have the scope to allow charging for the majority of electric vehicles up to 80% in up to 60 minutes (dependant on battery capacity).
Rapid AC devices use a tethered Type 2 connector. Rapid DC chargers are fitted with either a CCS, CHAdeMO or Tesla Type 2 connector.
Rapid EV Charging Pillars – Product Selection
100amps & 200amps
EV Charging Pillars Type |
100A Private | 100A DNO | 200A Private | 200A DNO |
43kW (63A TPN) | ✔ | ✔ | ✔ | ✔ |
Max no. of charge points per pillar | 2 | 2 | 4 | 4 |
50kW (80A TPN) | ✔ | ✔ | ✔ | ✔ |
Max no. of charge points per pillar | 1 | 1 | 3 | 3 |
400amps & 630amps
EV Charging Pillars Type |
400A Private | 400A DNO | 630A Private | 630A DNO |
43kW (63A TPN) | ✔ | ✔ | ✔ | ✔ |
Max no. of charge points per pillar | 8 | 8 | 10 | 10 |
50kW (80A TPN) | ✔ | ✔ | ✔ | ✔ |
Max no. of charge points per pillar | 5 | 5 | 7 | 7 |
Ultra-Rapid ev charging power supply feeder pillars
400A & 630A
Ultra-rapid EV charge points can provide up to 150kW of power. Ultra EV charging supply solutions from Lucy Zodion feed power to EV charge points at a maximum rated speed.
This allows electric vehicles which have the battery capacity, to have up to 80% of charge in approximately 30 minutes.
Ultra-Rapid EV Charging Pillars – Product Selection
EV Charging Pillars Type |
400A Private | 400A DNO | 630A Private | 630A DNO |
120/150kW (250A TPN) | ✔ | ✔ | ✔ | ✔ |
Max no. of charge points per pillar | 2 | 2 | 3 | 3 |
lucy zodion EV Charge Point Supply Feeder Pillars
Features & Benefits
- Cut-out installation area with meter tails tailored to specific DNO’s
- Bespoke in house design centre ensuring the engineered design meets customer specification
- Class II distribution in polycarbonate enclosures
- Expandable for future supplies
- Tailored for private or DNO incoming supply
- Main incoming device with residual current protection and enclosure interlocked to prevent unauthorised access
- Neat and simplified design feeder pillar design
- Suitable for a range of supply combinations from 7kW through to 150kW
- RCCB/RCBO protection for charge points if required
- Accommodate different earthing arrangements i.e TNC-S, TT
- O-PEN monitoring available on 3 phase supplies offering a safer alternative to earth electrodes
- Single point termination for field cabling
- Manufactured in accordance with current BS7671 IET Wiring Regulations 18th Edition
- Utilise any preferred manufacturer’s equipment
EV Charging & Connection at 600/100V and 11kV/33kV Substations
Where large-scale, multi-point EV Charging schemes are installed to support electric vehicle fleets it is often required to build and connect an 11kV or 33kV substation – depending upon the MVA (Megavolt-Amperes) required load and the charger layouts with kW capacity a dedicated 33kV HV Substation would need to be built and energised. The size of the required capacity determines whether an 11kV Connection is appropriate and a feed to the 33kV primary substation. LV cabling will then be pulled and laid underground to energise the EV Chargers according to the client specification. Should you require assistance with the Medium & High Voltage Cable Accessories to joint, terminate and connect power cables distributing electricity at 11kV or 33kV please do not hesitate to contact us – this includes Cold Shrink, Heat Shrink and EPDM Rubber from market-leading Nexans Euromold, Pfisterer Connex and 3M Electrical brands.
