HV Cable Termination 17.5kV Heat Shrink Kits 1 Core 50-95sqmm SPS 1TES-12P-A

17.5kV cable termination kits using heat shrink technology are suitable for terminating medium/high voltage (MV-HV) single core paper insulated lead covered cables (PILC) into switchgear, substations and cable termination boxes – indoor cable terminations also available.

SPS 1TES-12P-A cable termination kit suits 15kV 17.5kV cables with 50sqmm, 70sqmm, 95sqmm 1 core conductors.

15kV 17.5kV Cable Termination

HV High Voltage – Outdoor

• Cable Termination Type – Heat Shrink
• Termination Location – Outdoor
• Number of Cores – 1 Core
• Conductors – 50sqmm, 70sqmm, 95sqmm
• Cable Type – PILC (Paper Insulated Lead Covered)
• Heat Shrink Standard Tail Length – 500mm
• Termination Kit Order Code – SPS 1TES-12P-A

➡ High Voltage Cable Termination 17.5kV Kit List

Also Terminations : 3 Core Indoor 17.5kV PILC | 3 Core Outdoor 17.5kV PILC

15kV Cable Termination Bushing Boots | Cable Glands | Screen Earth Kits | Cable Lugs

Single Core PILC 15kV Terminations

15KV 17.5KV Outdoor CABLE TERMINATION KITS

The following enables the termination kit selection for 17.5kV 1 core outdoor cables:

HV Terminatons For Paper Cables

Thorne & Derrick can supply cable joints, terminations and connectors for the connection of paper insulated cables into 11kV/33kV medium and high voltage switchgear and substations.

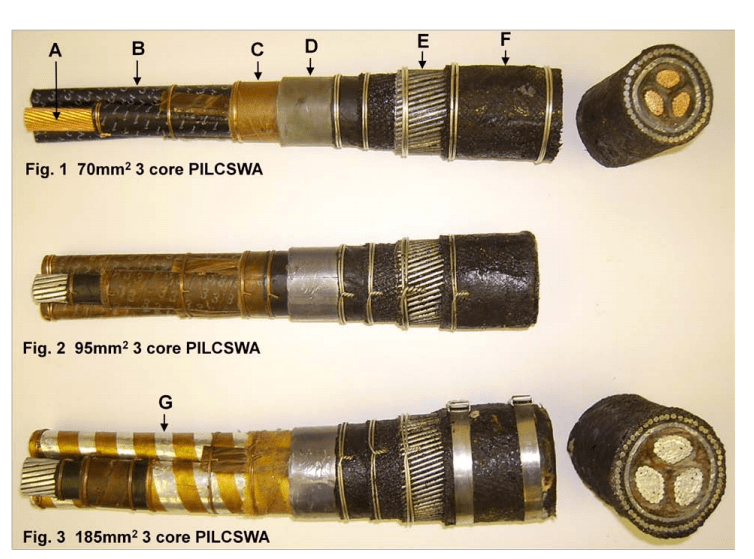

11kV Paper Insulated Lead Covered Steel Wire Armoured (PILCSWA)

A. Aluminium or copper conductors –  stranded sector | rounded circular
B. Layers of paper insulation impregnated with mineral oil compound
C. Figs. 1 & 2 show additional (paper belt) insulation layer on HV cable
D. Lead sheath, covered with bitumen coated paper and hessian layers, as a bedding for the steel armour wires
E. Steel wire armours (SWA)
F. Bitumen coated hessian tape serving (oversheath)
G. Fig 3. Shows an HV screened cable with a conductive layer applied over each core

11kV Cables | 3 Core | PILC SWA

33kV Paper Insulated Lead Covered Cables

A. Copper or aluminium conductors
B. Layers of paper insulation impregnated with mineral oil compound
C. Conductive layer on each core – insulation screening
D. Lead sheath with bitumen coating
E. PVC oversheath
F. Bitumen coated paper and hessian bedding layers
G. Steel wire armours (SWA)
H. Bitumen coated hessian tape serving (oversheath)
I. Separate lead sheath around each core, on 3 core HSL cable

33kV Cables | 3 Core | PILC SWA

Cable terminations using heat shrink technology for MV-HV (6.6kV 11kV 33kV) cable connection to switchgear, transformers, overhead line and pole-mounted – see also Heat Shrink HV Cable Joints
