3M 90-NA-2-IR

Resin Cable Joint

3M 90-NA-2-IR Scotchcast resin cable joints are used to straight joint, splice or connect multi-core non shielded polymeric cables with XLPE insulation and core conductors 16sqmm-25sqmm – complete range of cable joints are available in both Cold Shrink and heat shrink technology for LV (Low), MV (Medium) and HV (High) Voltage power cables.

3M 90-NA-2-IR joint kit sELECTION

• Manufacturer – 3M Electrical
• Stock Order Code – 90-NA-2-IR
• Cable Diameter – 16-25sqmm
• Accepted Cable Diameters – 14-30mm
• Cable Voltage 600/1000V (up to 3.3kV)
• 3M 90-NA-2-IR utilises 3M Scotchcast 470 resin
• Hazardous Area Cable Joints also available

3M 90-NA-X-IR Scotchcast Cable Joint Selection

Multi Core Non Shielded Unarmoured Cable Joints

See also the 3M Electrical range of products to repair damaged cables in both non-hazardous industrial (“safe areas”) and potentially explosive atmospheres (“hazardous areas”).

3M SCOTCHCAST 470W RESIN

Scotchcast 470W resin is in compliance with EU regulation 1907/2007/EC (REACH) and has a shelf life of at least 36 months when stored between 15°C and 35°C with a humidity level < 75 % in the originally sealed bag.

The expiration date of each cable joint appears on the product label. Storage beyond the date specified on the Scotchcast resin label does not necessarily mean that the product is no longer usable. In this case however, it is the responsibility of the user to determine applicability of the cable jointing resin.

T&D Stock & Distribute the complete range of 3M Cable Joints & Cable Terminations using resin and cold shrink for LV, MV & HV cables.

➡ More: Joints – Cold Shrink | Joints – Heat Shrink

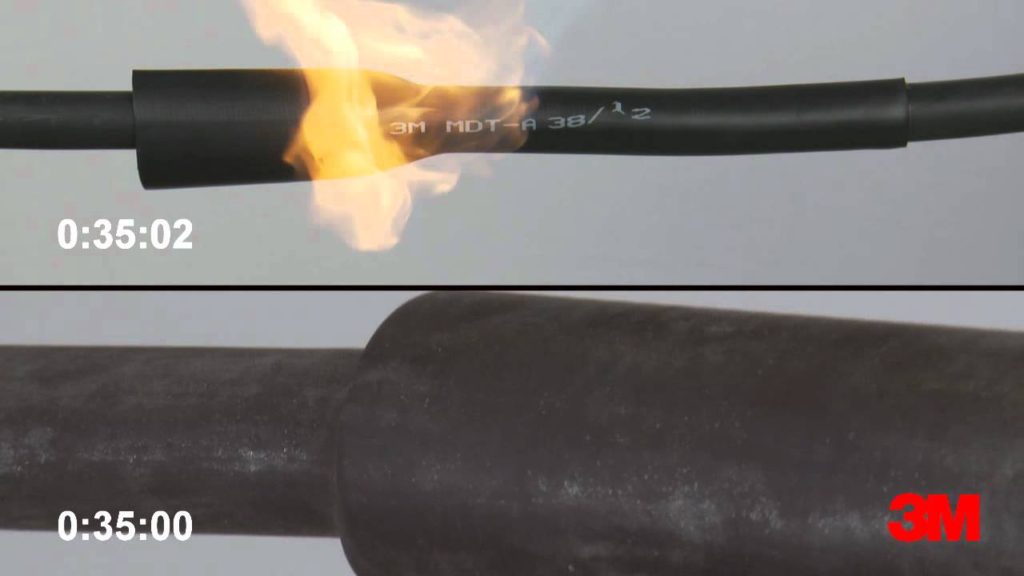

This video by 3M Electrical shows the benefits of using 3M Cold Shrink compared to heat shrink cable accessories to insulate, joint, repair and terminate cables.

Watch Video – Cold Shrink v Heat Shrink Joints
