Scotchcast 470W Resin

3M Scotchcast Resin 470W is a non-filled, 2 part polyurethane cable jointing resin for temperature curing – the Scotchcast Resin has been specifically designed for electrical insulation and mechanical protection of resin cable joints.

3M Scotchcast Resin 470W once hardened provides impact resistance and durability against moisture and atmospheric corrosion and has an operating temperature of installed product -40°C to + 110°C.

470W resin is used to encapsulate 3M LVI-1 armoured power cable joints.

Scotchcast 470W  mechanical protection and electrical insulation of low voltage electrical joints installed for indoor and outdoor, underground and submerged applications.

Availability: Contact Thorne & Derrick Sales for price, delivery and 3M Scotchcast 470W stocks – 3M Electrical distributor since 1985.

3M Scotchcast 470W Resin

2 Part Polyurethane Cable Jointing Resin (Standard) Features

  • Resin has excellent hydrolytic stability
  • Available with closed mix and pour delivery system
  • Low exothermic reaction temperature
  • Mechanical protection and electrical insulation of low voltage electrical joints installed for indoor and outdoor, underground and submerged applications

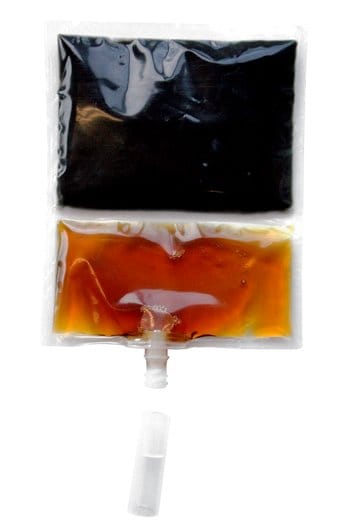

Scotchcast 470W Resin is contained in two chamber bags for quick mixing – the cable jointer must ensure careful mixing of the resin/hardener prior to pouring into the 3M Scotchcast cable joint. No gloves are required, 470W utilises 3M Closed Mix & Pour resin delivery system.

3M Scotchcast 470W resin DESCRIPTION

3M Scotchcast Resin 470W will be supplied, in two-chamber plastic pouches with peelable barrier in the correct stoichiometric proportion. This type of packaging will assure the correct mixing ratio for applying the resin – a Closed Mix and Pour Delivery System.

The integrated pouring spout is opened while attaching the mixed resin bag to the housing of the cable joint shell, or by using the supplied opener. Scotchcast resin 470W has a shelf life of 36 months when stored between 10°C and 40°C with a humidity level < 75 % in the originally sealed bag.

3M Scotchcast 470W Resin – Technical Specification

3M Resin Type Polyetherurethane
Form 2 Part
Density (g/cm3)  1.16
Viscosity at 23°C (Pas) 0.9
Hardness (Shore D) 59
Elongation at break (%) 90
Pot life at 23°C (min) 20
Dielectric strength (kV/mm) 20
Exotherme Reaction (°C) – Temp 40°C 90
Electrical Insulating Resin 470W
Typical Properties
Property Value Specification
Part A
Density 1,01 g/cm³ ISO 3675
Viscosity 23°C 1600 mPas EN ISO 2555
Part B
Density 1,22g/cm³ ISO 3675
Viscosity 23°C 135 mPas EN ISO 2555
Part A&B (mixed)
Density 1,15 g/cm³ ISO 3675
Viscosity 5°C 4400 mPas EN ISO 2555
Viscosity 23°C 900 mPas EN ISO 2555
Exothermic Reaction Temp 40°C 90 °C HD 631.1 S2
Hydrophobic Behaviour Passed HD 631.1 S2
Volume Shrinkage 3,9 % EN ISO 3521



Property Value Specification
Part A&B (cured*)
Mechanical properties
Hardness Shore D 59 EN ISO 868
Tensile Strength 13 MPa EN ISO 527
Elongation at Break 90 % EN ISO 527
Impact Strength (without notch) No breakdown EN ISO 179
Electrical properties
Volume resistivity
at 23 °C
at 80 °C
2,0E+14 Ωcm
7,0E+10 Ωcm
IEC 60250
Dielectric Strength
at 23 °C
20 kV/mm EN 60243-1
Dissipation factor
at 23 °C
at 80 °C
0,02
0,04
IEC 60250
Dielectric constant
at 23 °C
at 80 °C
<6
9,5
IEC 60250
Thermal conductivity 0.206 W/mK ASTM D5470-12

*curing and aging cycles according to Cenelec HD631.1 S2

3M Scotchcast 470W Resin

Scotchcast 470W resin is in compliance with EU regulation 1907/2007/EC (REACH) and EU directive 2002/95/EC (RoHS).

Cable Joints

T&D stock the complete range of resin cast, heat shrink and cold shrink LV Cable Joints
