804PB Nexans Euromold – Interface C – Coupling Connector

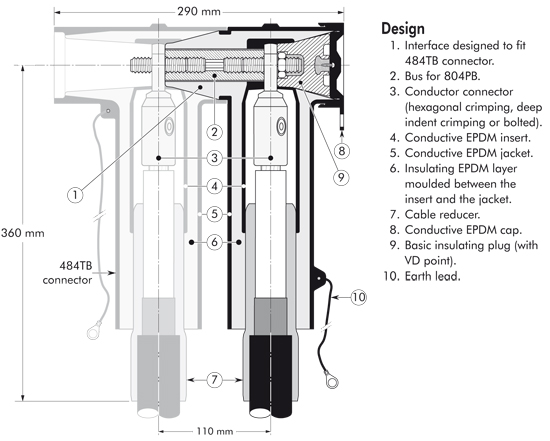

Separable coupling connector (bolted type) for dual cable arrangement. It has been designed to be used with 484TB separable Tee connector.

For complete technical and specification on this Interface C product please see Nexans Euromold 804PB

Characteristics

• Connector shape – T-Shaped
• Connector type – Male
• Technology – Slip-On
• Conductor Material – Copper or Aluminium
• Conductor Cross Section Range – 50sqmm-630sqmm
• Maximum Partial Discharge At 2Uo – 10pc
• Dielectric Withstand Voltage 50Hz 1mn  93.5kV
• Rated Voltage Uo/U (Um) – 20,8/36 (42) kV
• Interface C – (630 – 1250A)
