Alroc CMV-3F-PGNP

Ex Stock Alroc Tools | Alroc CMV-3F-PGNP

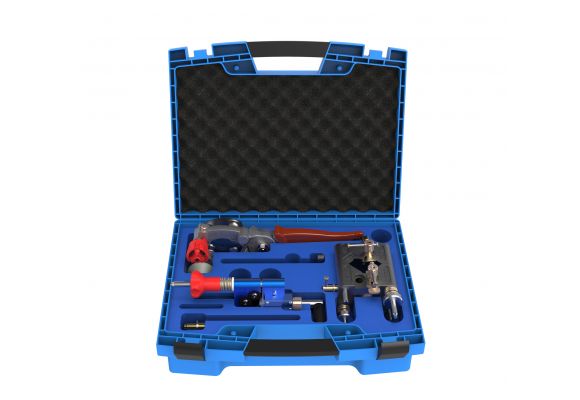

The Alroc CMV-3F-PGNP case contains the tools necessary to remove the outer sheath, work on the bonded semiconductor and strip the insulation of cables.

Tool Order Code | Alroc CMV-3F-PGNP
Tool Function | Remove the outer sheath | Remove the outer semi-conductor | Remove the insulation | Tool kits overview
Tool Diameter | ø38 – 75 mm | ø1.496 – 2.953 in
PRG4/C25-L283335 : Ø47 – 75mm (Ø1,850 – 2,953 in)
CWB/18-60-FEP : Ø18 – 60mm (Ø0,709 – 2,362 in)
LH2 : Ø38 – 60mm (Ø0,709 – 1,496 in)
Availability | Contact Thorne & Derrick for Stocks
Outer Sheath | Yes
Semi – conductor | Bonded
Insulation | Yes

Alroc CMV-3F-PGNP Benefits

No silicon needed
Compact case
For further information, technical support or to check stock for Alroc CMV-3F-PGNP please contact Thorne & Derrick

Spare blades for use with tool reference Alroc CMV-3F-PGNP:

LCWB-FEP – Spare blade for bonded semiconductor with chamfer 13°
MTC4/25 – Spare blade for circular cutting 2,5 mm / 0,098 in (x4)
TRL/28-33-35 – Spare interchangeable longitudinal cutting head
LAC2 – Spare blade for insulation

Tools for Jointing, Termination & Preparation of LV MV HV Cables manufactured by Alroc, from 660V to 66kV. Precision-engineered, highest-quality tools for all stages of the Cable Preparation procedure including Cable Sheath/Jacket Stripping, Insulation Removal (XLPE EPR) and Semicon Stripping Stripping (Bonded & Peelable). Thorne & Derrick stock and supply Jointing & Termination Tools and extensive range of Cutting & Crimping Tools from Cembre and Klauke.

Complementary Tools to Alroc CMV-3F-PGNP | Alroc LH2 | Alroc CWB/18-60-MVS | Alroc CMV-3F-NP
