Alroc CWE/14-50-MVS Tool – Easy Peel / Strip Semiconductor Stripper With Chamfered Screen Cutback
Semiconductor Screen Stripping Tools
Alroc CWE/14-50-MVS
The Alroc CWE/14-50-MVS Cable Stripping Tools is part of the Cable Jointing Tools range, manufactured by PENTA Alroc, which enables MV-HV jointers to remove the semi-con screen to prepare the cable ready for the installation of cable joints, terminations or connectors. Alroc CWE/14-50-MVS scores the peelable semiconductor on cable diameters between 14mm – 50mm (0.551in – 1.969 in), in order to remove it and performs a chamfer on the semicon cutback of the medium voltage power cable.

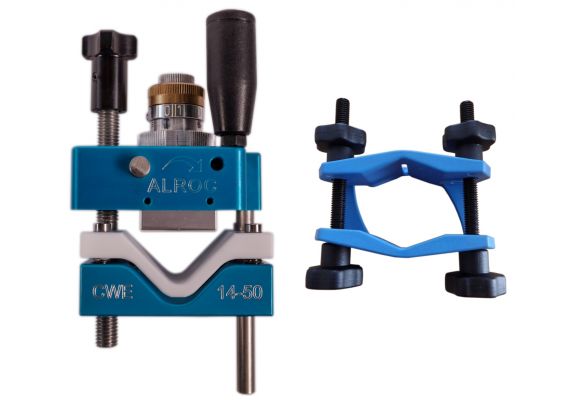

The Alroc cable preparation tool design enables the user to fine tune the scoring depth, chamfer on the transition and make circular, longitudinal and helicoidal cuts. An MVS stop tightens on the cable to prevent the Alroc CWE/14-50-MVS from slipping.
➡ Alroc CWB/18-60 Tool – Bonded Semiconductor Stripper With Chamfered Screen Cutback
Alroc CWE/14-50-MVS Technical Specification
- Function: Remove the outer semi-conductor
- Diameter: ø14 – 50 mm (ø0.551 – 1.969 in)
- Maximum Scoring Depth: 1,4mm / 0,055 in
- Remaining Length Of Semicon: 10mm / 0,394 in
- Similar Products: Alroc BRMRD1E | Alroc CWB/18-60-MVS
Part Number |
Diameter |
Cable Stripping Tool Capacity |
Dimensions |
Packaging |
|||
| Maximum Scoring Depth | Remaining Length Of Semicon | Length | Width | Height | |||
| CWE/14-50-MVS | 14 – 50 mm 0,551 – 1,969 in |
1,4mm / 0,055 in | 10 mm / 0,394 in | 150 mm 5,906 in |
80 mm 3,150 in |
48 mm 1,890 in |
Box |
How To Use ALROC CWE/14-50-MVS SemiCon Stripper Tool
The following video provides a complete in-depth tutorial for the Alroc CWE/14-50-MVS Tool, including opening the tool, setting the scoring depth (according to the thickness of the peelable semicon), setting cut positions, tightening the tool on the semicon, as well as a demonstration of the MV HV Power Cable cutting and peeling process.
The following video provides an in-depth guide for Alroc CWE/14-50-MVS Tool blade replacement and adjustment, including assembly and disassembly.
Jointers Tools
MV HV EHV
- MV Medium Voltage Cables 11kV 33kV
- HV High Voltage Cables 66kV
- EHV Extra High Voltage Transmission & Distribution Cables 132kV 245kV 400kV
➡ For further information about Alroc cable tools for removing cable screen from MV-HV cables please see below.
T&D also distribute Cembre tools for cable cutting and cable crimping of copper and aluminium conductors.
Pfisterer | 3M | Nexans | Prysmian – Joints, Terminations & Connectors MV HV
Alroc CWE/14-50-MVS Tool – Easy Peel/Strip Semiconductor Stripper With Chamfered Screen Cutback | Technical DatasheetDownload
