Alroc LH2 Insulation Stripping Tool MV HV Medium & High Voltage Cables 38-60mm
Stocked in the UK by Thorne & Derrick | Alroc LH2
Insulation Stripping Tools
Alroc LH2
LH2 cable jointing tools manufactured by Alroc are used by MV-HV jointers to remove the insulation to prepare the cable ready for the installation of joints, terminations or connectors.
The LH2 enables ruler to set the length of insulation to be removed and back-iron to set the pitch of the tool making easy to rotate the tool.

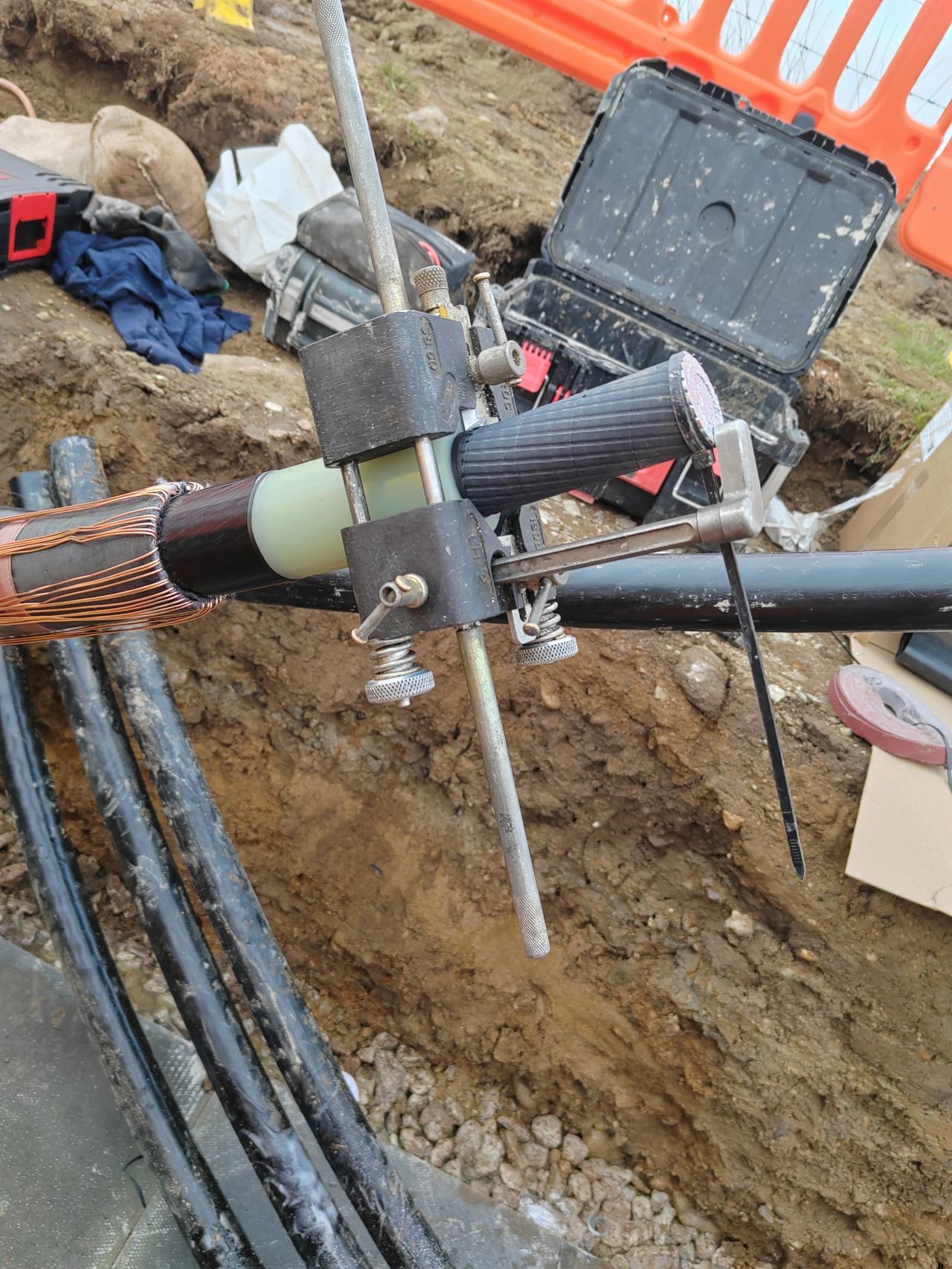

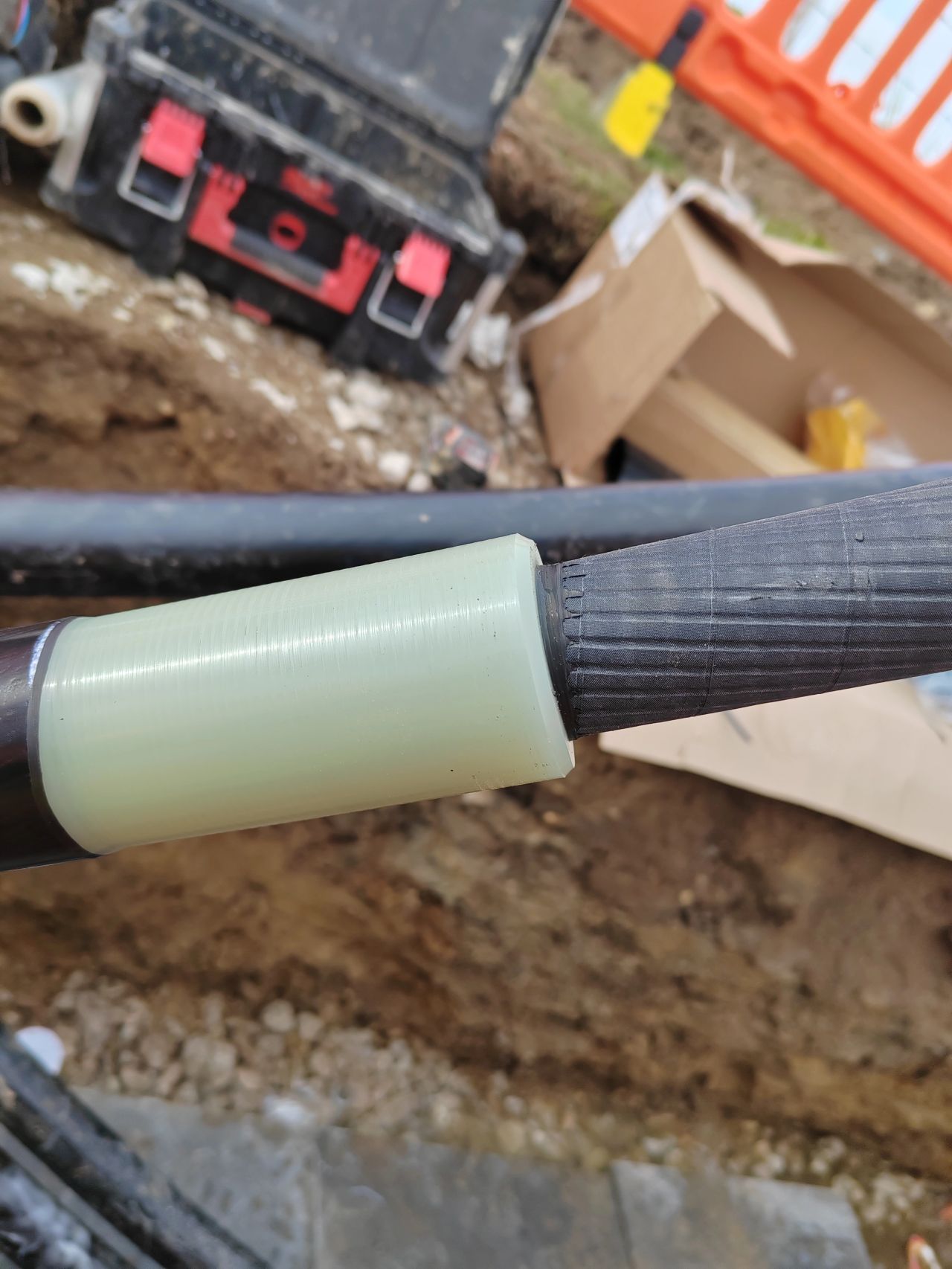

Pictured | Alroc LH2 | Here the LH2 is shown in use on 33kV BS7870 XLPE Copper Wire Screen single core 1000sqmm cables – note the neat, straight and clean cut of the primary XLPE insulation.
Image Courtesy | JK Jointing Ltd
LH2 XLPE Insulation Stripping Tool Range
38 – 60mm (Metric)
1.496 – 2.362 in (Imperial)
LH2 Spare Parts | LAC2 Spare Blade for Insulation
The LH2 tool manufactured by Alroc is used primarily for the stripping and removal of polymeric (XLPE) insulation from medium and high voltage power cables up to 33kV with outside insulation diameters up to 60mm. LH2 provides an insulation cutting depth of 17mm / 0.669 inches. Contact is for Multi-Function Jointing Tools and the preparation of EHV Extra High Voltage cables.
For price, customer support or to place an order for LH2 please contact Thorne & Derrick.
Alroc LH2 – Technical Specification
Jointers Tools
MV HV EHV
- MV Medium Voltage Cables 11kV 33kV
- HV High Voltage Cables 66kV
- EHV Extra High Voltage Transmission & Distribution Cables 132kV 245kV 400kV
Pfisterer | 3M | Nexans | Prysmian –Â Joints, Terminations & Connectors MV HV
➡ For further information about Alroc cable tools for removing cable screen from MV-HV cables please see below.
T&D also distribute Cembre tools for cable cutting and cable crimping of copper and aluminium conductors.
Jointing & Preparation Tools For Cable Jointers & Linesmen Working On MV-HV-EHV Cables & Lines
Alroc LH2 – Data SheetDownload
