ALROC MF3/60-SR

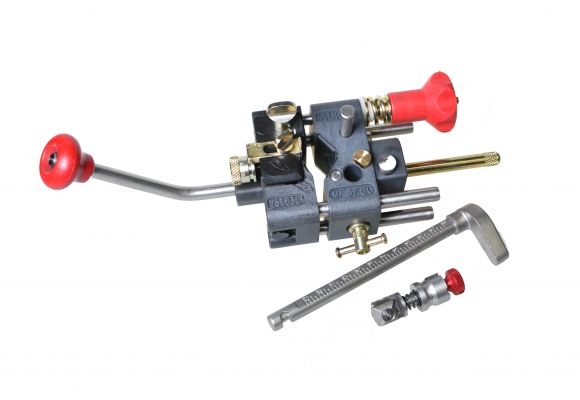

MF3/60-SR cable tools are manufactured by Alroc and used by MV-HV jointers to remove the outer sheath (PE-PVC-PR) with a straight and neat cut, score the peelable semiconductor with a chamfer on the edge of the semiconductor cutback (with the SR scoring stylus delivered with the tool), set the length to be removed and remove the insulation.

The benefits of the Alroc MF3/60-SR Cable Jointing & Preparation Tool include tuning of the pitch of the tool and embedded wear pads to protect the tool from the contact with the outer sheath of the medium/high voltage cable. The Alroc MF3/60-SR multifunction tool is available with one of the following scoring stylus options;

SRC – Scoring stylus for peelable semiconductor with chamfer,
SCH – Chamfering stylus for insulation,
SR – Scoring stylus for peelable semiconductor.

Alroc Scoring Styluses For Use With Multifunction Cable Jointing Tools

Alroc Scoring Styluses For Use With Alroc Multifunction Cable Jointing Tools

Alroc MF3/60-sr – Technical Specification

Cable Tool Part Number	Diameter	Tool Capacity			MF3/60-SR Dimensions			Packaging
Cable Tool Part Number	Diameter	Peelable semiconductor thickness capacity	Insulation thickness capacity	Stylus included	Length	Width	Height	Packaging
Alroc MF3/60	16 – 58 mm 0,630 – 2,283 in	0.4 – 1.5 mm	7 mm	SR	305 mm 12,008 in	115 mm 4,528 in	165 mm 6,496 in	None
Alroc MF3/60-C		0.4 – 1.5 mm	7 mm	SRC
Alroc MF3/60-SR		0.4 – 1.5 mm	11 mm	SR
Alroc MF3/60-SRC		0.4 – 1.5 mm	11 mm	SRC
Alroc MF3/60-SSR		Option	7 mm	None

SPARE TOOL PARTS FOR USE WITH ALROC MF3/60-sr

KIT-MF3/40 – Protective wear pads
SR – Scoring stylus for peelable semiconductor
LS – Spare blade for peelable semiconductor
LMF2-S – Spare blade for outer sheath and thick insulation
BR – Thrust to set the length of insulation to be remove
VBB1 – Screw for locking the thrust
PCR – Quick set up right angled 45° handle
196855 – Straight handle M10
108098 – Clamping knob for blade

Cable Jointing Tool Options

SRC – Scoring stylus for peelable semiconductor with chamfer
SCH – Chamfering stylus for insulation

Associated Preparation & Jointing Tools for MV HV Cables

ALROC-FENTE – Tool to perform slits on cable’s outer sheath
ROTO-TMG – Connector holder for bolted and clamping connections
DSP – Peelable semiconductor lifter

Alroc MF2 40 Tool – Strip Outer Sheath & Insulation up to 40mm Diameter
