Alroc Pintel 3 Fiber Cable Jacket Stripping & Removal Tool

Pintel 3

Alroc Pintel 3 tool is used to strip and remove the cable jacket sheath from fibre optic cables prior to splicing and terminating FO cable.

The cable stripping tool must be used when the cable is out of tension by skilled workers, splicers or cable jointers who are competent with cable preparation – it is obligatory that the user of the Alroc Pintel 3 tool wears anti-cut gloves to provide adequate electrical safety and worker protection.

The cable jacket stripping tool must be cleaned after every use by the operator.

Preparation of Cable Stripping Tool

Remove the security (1) and then loosen the knurled nut (2) from the stripping tool.

Remove the security and then loose the knurled nut

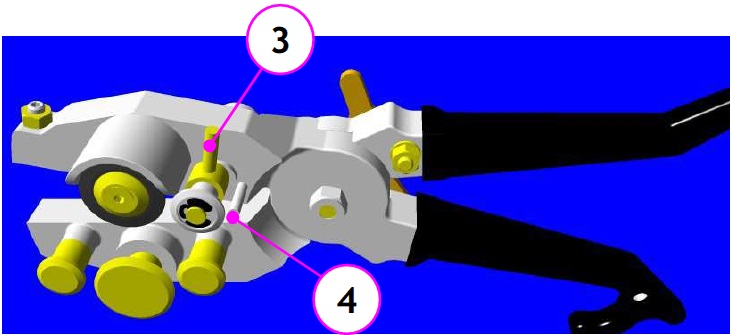

Open the cable pliers and then with the rod (3) displace the exocentric until the stop point (4).

Open the pliers and then with the rod displace the exocentric until the stop point

Position the pliers on the cable

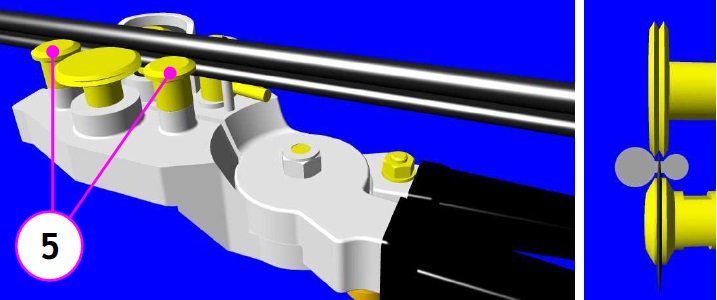

Position the cable on the guiding rollers (5).

Position the cable on the guiding rollers insuring yourself that they are well in the cable lodging. (see drawing)

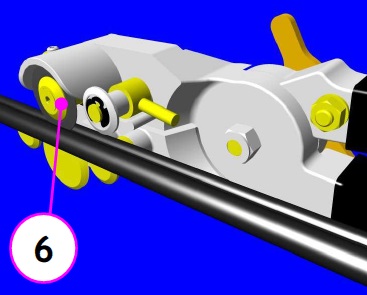

Penetrate the cutting blade (6).

Penetrate the blade

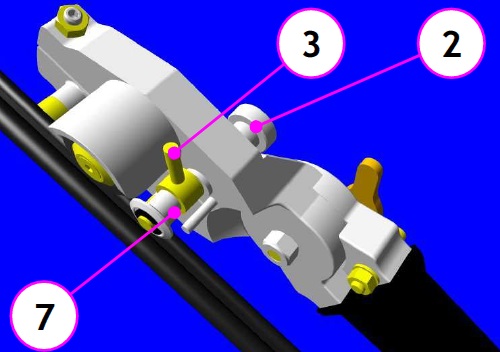

With the rod (3) place the rollers in support in the cable lodging (7) then tighten the knurled nut (2).

With the rod place the rollers in support in the cable lodging then tighten the knurled nut

Separate carrier

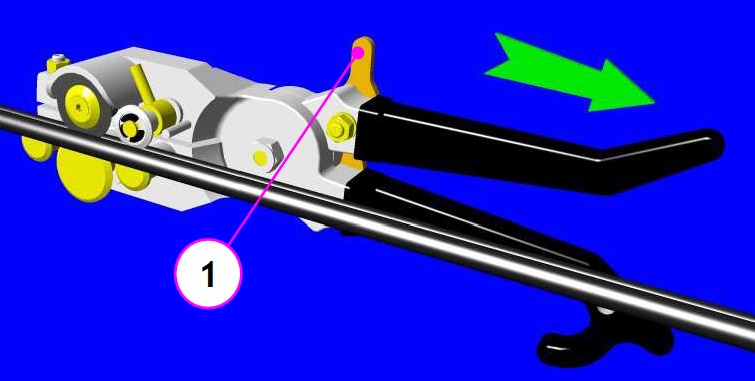

Put the security (1) then pull out in the direction of the arrow.

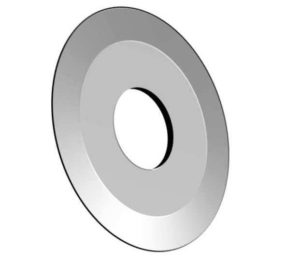

Spare Part : Ref : MTLP3

Spare part - Ref - MTLP3
