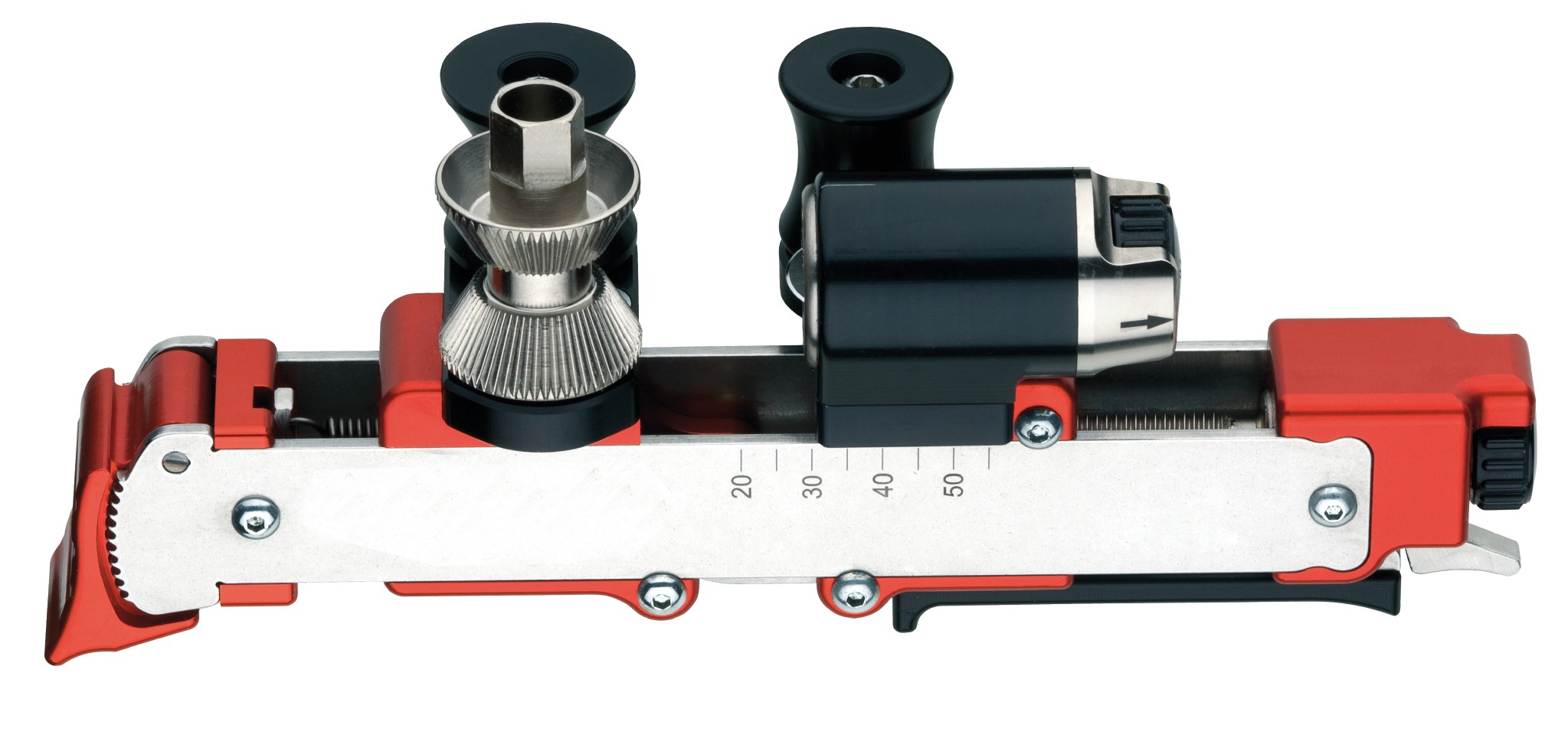

Universal Heavy Duty Cable Sheath Cutter Up To 16-54mm Diameter

Cable Jointing Tools

Cable Jointers Tooling For Preparing LV MV HV Cables  – cable tools for installing 3M, Nexans and Pfisterer joints, terminations or connectors

Boddingtons 244300 Tool

LV MV HV Cable Sheath Cutting Tools

  • Cutting tool for stripping aluminium armed outer cable sheath from LV and MV-HV cables
  • Longitudinal and circular cutting of the cable sheath
  • Additional claw to break hard cable insulation
  • The initial setting on correct cable diameter is done by adjusting the handle
  • The fixation of the device on the cable is performed by a quick-release system with toggle lever principle
  • The cutting depth is adjustable in steps of 0.1mm
  • Switchable between longitudinal and circular cutting
  • Max rotation diameter of the tool: 300mm
  • Cable cutting application range: diameter Ø 16 – 54mm
  • Cable insulation thickness: 0 – 5mm
Boddingtons Electrical Part Number 244300
Cable Tool Weight (g) 1300
Insulated or Uninsulated Cable Sheath Cutter Aluminium Outer Insulation
Suitable Cutting Cable Types Polyethylene / Fully Bonded



➡ See Outer Cable Sheath Removal Tools for more cable tooling.

Universal Heavy Duty Cable Sheath Cutter Up To 16-54mm Diameter - Boddingtons 244300 Tool

Boddingtons 244300 Tool – Cut, Strip & Remove Cable Sheath Jackets
