Cable Drum Trailers Up To 2500mm Diameter Drums – SEB CD60S

Cable Drum Trailers

Mobile Safe Transportation of Cable Drums for Pulling & Laying of Low & High Voltage Power Cables

SEB CD60S is a cable drum trailer suitable for use “off road” with the ability to handle up to 2500mm diameter drums – cable drum trailers ensure safe loading, transportation and unreeling of LV, MV, HV or EHV cable from drums with a payload up to 3000Kgs.

The SEB60S cable drum trailer is available from the standard product range – if there is not a trailer listed to accommodate your cable drum size and weight please do not hesitate to contact us customised engineered solutions to support your cable pulling installations up to 400kV.

CABLE DRUM TRAILER

TECHNICAL SPECIFICATION

SEB CD60s

This table provides the specification details for the CD60S drum trailer manufactured by SEB:

SEB Part Number	Axle Type	Payload (Approx)	Gross Vehicle Weight	Max Drum Width	Cable Drum Dia max/min	Spindle Dia	Tow Eye/Coupling Height Unladen	Cable Trailer Width	Towing Speed	Tyres	Brake System
CD60S	Single	3000kgs	3750kgs	1280mm	2500/1060mm	76mm	50/610	2300mm	40Kmh	215/75R17.5	Overrun

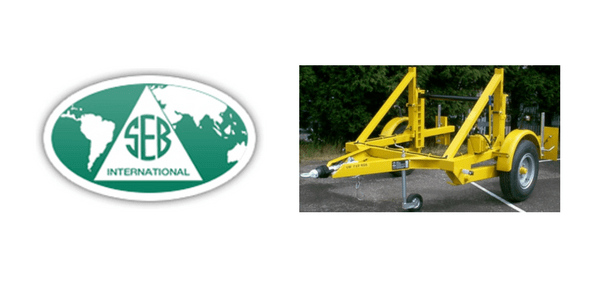

SEB CD60S Cable Drum Trailer
