Cable Drum Trailers Up To 3200mm Diameter Drums – SEB CD210S

Cable Drum Trailers

Mobile Safe Transportation of Cable Drums for Pulling & Laying of Low & High Voltage Power Cables

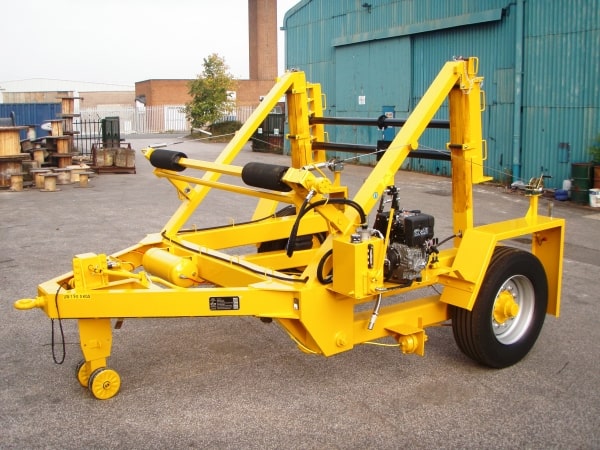

SEB CD210S is a cable drum trailer suitable for use “off road” with the ability to handle up to 3200mm diameter drums – cable drum trailers ensure safe loading, transportation and unreeling of LV, MV, HV or EHV cable from drums with a payload up to 8000Kgs.

The SEB CD210S cable drum trailer is available from the standard product range – if there is not a trailer listed to accommodate your cable drum size and weight please do not hesitate to contact us customised engineered solutions to support your cable pulling installations up to 400kV.

CABLE DRUM TRAILER

TECHNICAL SPECIFICATION

SEB CD210s

This table provides the specification details for the CD210S drum trailer manufactured by SEB – should you require any technical guidance or advice in the selection of the most suitable cable drum trailer from our range of pulling/laying equipment for Low, Medium & High Voltage (LV MV HV) applications please do not hesitate to contact us;

SEB Part Number	Axle Type	Payload (Approx)	Gross Vehicle Weight	Max Drum Width	Drum Dia max/min	Spindle Dia	Tow Eye/Coupling Height Unladen	Trailer Width	Towing Speed	Tyres	Brake System
CD210S	Single	8000kgs	10300kgs	2000mm	3500/2300mm	89mm	76/945	3200mm	32Kmh	315/70Rx22.5	2 Line Air

SEB CD120S Cable Drum Trailer

Cable Drum Trailers - EWVTA Highways Range

T&D distribute the complete range of LV-HV Cable Pulling and Laying Equipment including cable rollers, cable socks, drum jacks, drum trailers, cable lubricant, underground cable protection and conduit duct rod.

Duct Seals – T&D distribute cable duct sealing systems to prevent water ingress, gas migration or fire spread into MV-HV substations. Sealed cable entries for low voltage, medium voltage and high voltage cables.
