Cable Drum Trailers

Mobile Safe Transportation of Cable Drums for Pulling & Laying of Low & High Voltage Power Cables


SEB CD900S is a cable drum trailer suitable for use “off road” with the ability to handle up to 5000mm diameter drums – cable drum trailers ensure safe loading, transportation and unreeling of LV, MV, HV or EHV cable from drums with a payload up to 40,000Kgs.

The SEB CD900S cable drum trailer is available from the standard product range –  if there is not a trailer listed to accommodate your cable drum size and weight please do not hesitate to contact us customised engineered solutions to support your cable pulling installations up to 400kV.


CABLE DRUM TRAILER

TECHNICAL SPECIFICATION

SEB CD900s

This table provides the specification details for the CD900S drum trailer manufactured by SEB – should you require any technical guidance or advice in the selection of the most suitable cable drum trailer from our range of pulling/laying equipment for Low, Medium & High Voltage (LV MV HV) applications please do not hesitate to contact us;

SEB Part Number Axle Type Payload (Approx) Gross Vehicle Weight Max Drum Width Drum Dia max/min Spindle Dia Tow Eye/Coupling Height Unladen Trailer Width Towing Speed Tyres Brake System
CD900S Twin 40,000kgs 48,000kgs 2800mm 5000/2900mm 152mm 76/Pivot Type 4300mm 10Kmh 14.00×24, Bogie: 295/60 2 Line Air
Cable Drum Trailers Up To 5000mm Diameter Drums - SEB CD900S

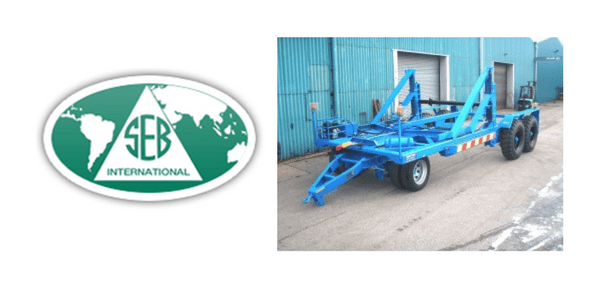

SEB CD900S Cable Drum Trailer
