Cable Drum Trailers Up To 4540mm Diameter Drums – SEB CD360S

Cable Drum Trailers Up To 4540mm Diameter Drums - SEB CD360S

Cable Drum Trailers Up To 4540mm Diameter Drums – SEB CD360S

Cable Drum Trailers

Mobile Safe Transportation of Cable Drums for Pulling & Laying of Low & High Voltage Power Cables

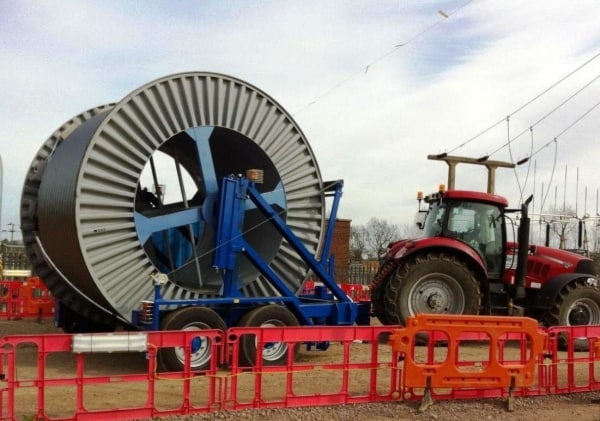

SEB CD360S is a cable drum trailer suitable for use “off road” with the ability to handle up to 4540mm diameter drums – cable drum trailers ensure safe loading, transportation and unreeling of LV, MV, HV or EHV cable from drums with a payload up to 15,000Kgs.

The SEB CD360S cable drum trailer is available from the standard product range –  if there is not a trailer listed to accommodate your cable drum size and weight please do not hesitate to contact us customised engineered solutions to support your cable pulling installations up to 400kV.


CABLE DRUM TRAILER

TECHNICAL SPECIFICATION

SEB CD360s

This table provides the specification details for the CD360S drum trailer manufactured by SEB – should you require any technical guidance or advice in the selection of the most suitable cable drum trailer from our range of pulling/laying equipment for Low, Medium & High Voltage (LV MV HV) applications please do not hesitate to contact us;

SEB Part Number Axle Type Payload (Approx) Gross Vehicle Weight Max Drum Width Drum Dia max/min Spindle Dia Tow Eye/Coupling Height Unladen Trailer Width Towing Speed Tyres Brake System
CD360S Twin 15,000kgs 18,500kgs 2400mm 4540/2400mm 127mm 76/960 3600mm 16Kmh 11.00×22.5 2 Line Air
Cable Drum Trailers Up To 4540mm Diameter Drums - SEB CD360S

SEB CD360S Cable Drum Trailer

Cable Drum Trailers - EWVTA Highways Range

T&D distribute the complete range of LV-HV Cable Pulling and Laying Equipment including cable rollers, cable socks, drum jacks, drum trailers, cable lubricant, underground cable protection and conduit duct rod.

Duct Seals Duct Sealing

Duct Seals – T&D distribute cable duct sealing systems to prevent water ingress, gas migration or fire spread into MV-HV substations. Sealed cable entries for low voltage, medium voltage and high voltage cables.
