ACVOKE® Cable Spiker Jack
Cable Spiking Tools

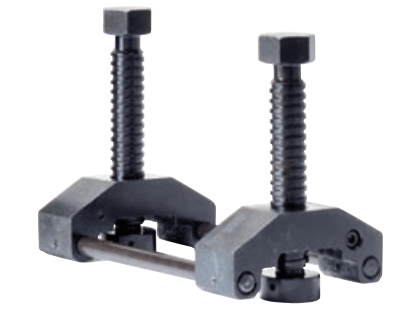

The Accles & Shelvoke cable spiker jack is an accessory which is included with the ACVOKE Standard Cable Spiking Tool and is used to remove the blade after spiking LV, MV or HV polymeric cables.
Sold as a separate accessory for the ACVOKE cable spiking tool range to aid blade removal.
Cable Spiking Tool Jack
Features & Benefits
- Easy blade withdrawal from spiked cables, including polymeric 11kV and 33kV cables
- Reduces operator fatigue
- Protects spiking tool from damage during removal
- Cable jack is low cost modification to cable spiker tools
CABLE SPIKER CARTRIDGES & ACCESSORIES
| Part Number | Cable Tool Description |
| 2260 | Jack Assembly |
| 2191 | Conversion Clamp for 11kV Aluminium-Sheathed Cables |
| 2238 | Clamp for Polymeric Cable |
| 2241 | Clamp for Triplex Cable |
| 7925 | Box of 25 Yellow Mark Cartridges – Extra light charge for small polymeric type cables having no outer metallised sheath |
| 7920 | Box of 25 Silver Mark Cartridges – light charge for all aluminium-sheathed cables up to 300mm square |
| 7900 | Box of 25 Green Mark Cartridges – medium charge for plain-covered cables and for armoured cables up to 85mm |
| 7900 | Box of 25 Red Mark Cartridges – heavy charge for armoured cables over 85mm with Standard cable spiker and up to 150mm with Heavy Duty Spiker |
Accles & Shelvoke range of tools include Heavy Duty Cable Spiking Tool, Mini Cable Spiking Tool & Standard Cable Spiking Tool
