CATU MT-8408 12.5kA Short Circuit & Portable Earthing Kits

Portable Earth Kits

CATU’s MT-8408 is a 12.5kA short circuit & portable earthing kit used with insulating sticks to protect workers against electric shock while carrying out maintenance or repair on MV-HV substations, switchgear, busbars, capacitor units, overhead lines and installation on fixed permanent points.

For portable earth kits, manufactured by CATU Electrical, with 30kA/1 second rating please see CATU MT-1920.

CATU MT-8408

Medium voltage mv

Short Circuit & Portable Earthing Kits

Part Number – CATU MT-8408
Portable Earth Kit Rating – 12.5kA/1s
Installation On Permanent Fixed Points – Ø 18-33
Clamp Composition – 3 clamps CATU MT-814/3 1 MT-840/1
Earth Cable Connection Set – 3 cables 70sqmm plus 1 earth cable 35sqmm
Standards – IEC 61230

CATU MT-8408 portable primary earths, commonly referred to as short-circuiting leads, are manufactured from flexible stranded copper conductor shrouded with clear protective insulating material and are used to safely discharge fault current leakages in the event of inadvertent energisation of medium/high voltage power systems.

IEC 61230 Live Working – Portable Equipment for Earthing & Short-Circuiting

IEC 61230 is an International Standard applicable to portable equipment, with or without matching connection points, for temporary earthing or earthing and short-circuiting of electrically isolated or de-energized a.c. and d.c. installations, distribution and transmission networks, whether they are overhead or underground or of low or high voltage power systems.

Contact T&D for price, delivery and technical support for CATU MT-8408.

Short Circuit & Portable Earthing Kits (Substation & Overhead Lines) – MT-8408

Short Circuit & Portable Earthing Kits

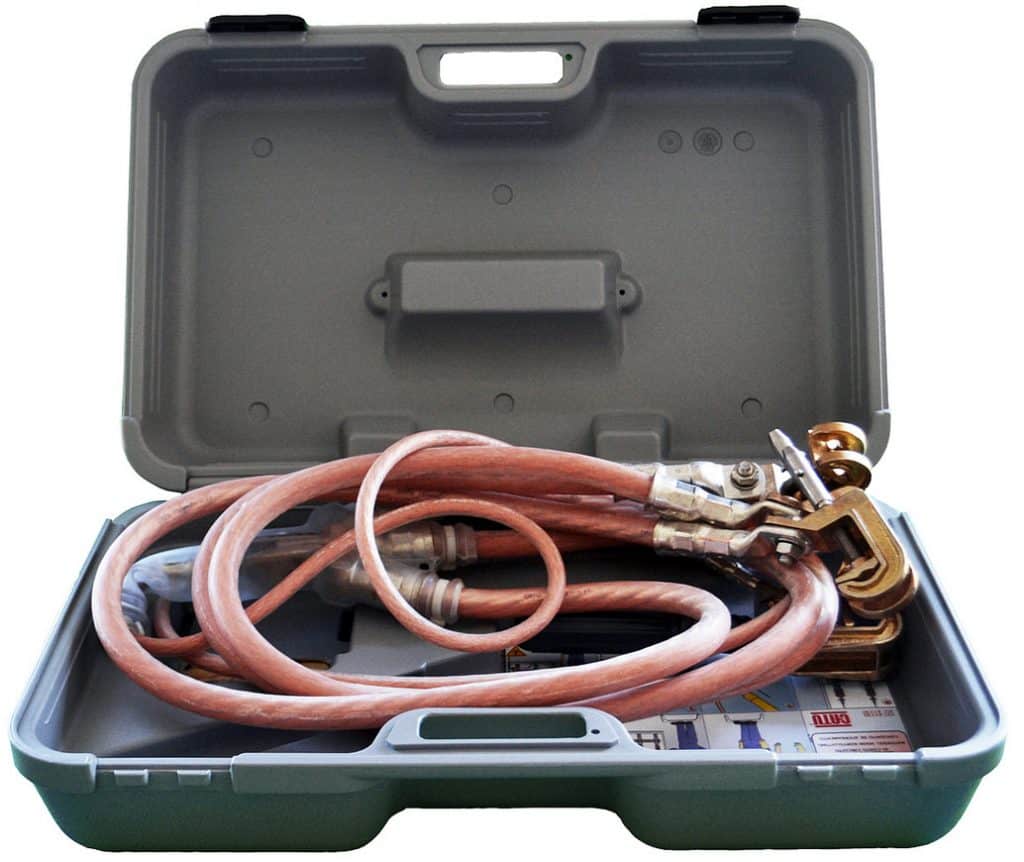

CATU short circuiting earthing kits include 3 earthing clamps for connection to the MV-HV substation/switchgear and another remote clamp at the opposite end of the cable – the earth clamps are connected to 3 x copper flexible insulated cables. Full range of portable earthing lead kits: Circuit Main Earths, Field Earths, Drain Earths, NSI24 Earth Kits and Transmission & Distribution Earthing Lead Kits are available for 132kV, 245kV up to 400kV.

Custom design MV-HV portable earth kits are available, including for 11kV-33kV earthing requirements.

Short Circuit & Portable Earthing Kits (Substation & Overhead Lines)

CATU MT-8408 | Stocked & Distributed by Thorne & Derrick

CATU Electrical Safety

Thorne & Derrick stock and distribute portable earthing leads in kit form for substations including; Field Earths, Trailing Earths, Bridging Earths, Circuit Main Earths, Drain Earths and NSI24 Kits. We also supply Transmission Earth Leads, Distribution Earth Leads and Rail Earth Leads with certified approvals from National Grid, Network Rail (PADS) and UK DNO’s – an extensive range of Line End Clamps, Earth End Clamps and Aluflex Earth Leads are available for use up to 400kV and covers a range of busbar sizes. Both standard and customised copper and aluminium portable earthing kits are available as Field Equipment Earths for earthing of scaffolds, cranes, MEWPs, and other pieces of field equipment including overhead line steel towers.

T&D distribute a full range CATU Electrical Safety equipment including Arc Flash Kits, Insulating Boots & Safety Shoes and Insulating Sticks for use with Portable Earthing Kits

Enquire
