Concrete Cable Troughs & Lids – Straight

CONCRETE CABLE TROUGHS

STRAIGHT

***Please note this range has been superseded by the lightweight Anderlite Straight Concrete Cable Trough range***

Concrete cable troughs from Anderton are used to provide cable containment and protection and can be used within rail industry applications.

Straight cable troughs & lids are non-conductive to electricity and ensure cables are protected from environmental damage.

Anderton’s straight cable troughs & lids are for pedestrian traffic only. Additionally once the lid is fitted, the internal capacity of the concrete cable trough will be reduced.

Concrete Cable Troughs & Lids - Straight

Concrete Cable Trough Part Number	PADS Number	Internal Dimensions		External Dimensions		Weight (kg)	Pack Size
Concrete Cable Trough Part Number	PADS Number	Width (W)	Depth (D)	Width (WE)	Depth (DE)	Weight (kg)	Pack Size
C.1.6 Trough	0004/105351	100	90	190	130	37	36
C.1.7 Trough	0004/105353	130	130	220	170	49	35
C.1.8 Trough	0004/105355	150	200	250	240	71	20
C.1.9 Trough	0004/105357	190	130	280	170	55	24
C.1.10 Trough	0004/105359	250	130	340	170	62	24
C.1.29 Trough	0004/105361	350	130	440	170	70	20
C.1.43 Trough	0004/105363	350	300	440	340	115	9

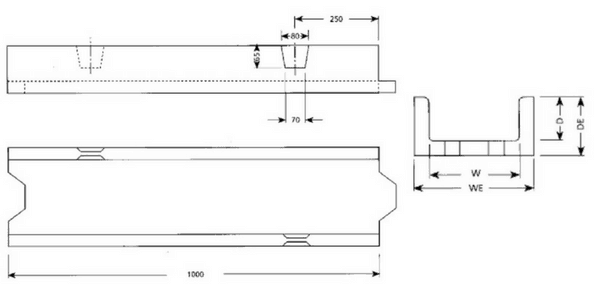

Straight Concrete Cable Troughs – Dimensions Illustration

Straight Concrete Cable Trough Lids

Concrete Cable Trough Lid Part Number	PADS Number	Internal Dimensions	Lid External Dimensions		Weight (kg)	Pack Size
Concrete Cable Trough Lid Part Number	PADS Number	Internal Dimensions	Length L	Width WE	Weight (kg)	Pack Size
C.1.6 Lid	0004/105282	100 x 90	1000	190	22	60
C.1.7 Lid	0004/105285	130 x 130	1000	220	27	50
C.1.8 Lid	0004/105288	150 x 200	1000	250	29	48
C.1.9 Lid	0004/105291	190 x 130	1000	280	34	48
C.1.10 Lid	0004/105294	250 x 130	1000	340	42	36
C.1.29 Lid	0004/105297	350 x 130	1000	440	66	24
C.1.43 Lid	0004/105297	350 x 300	1000	440	66	24
