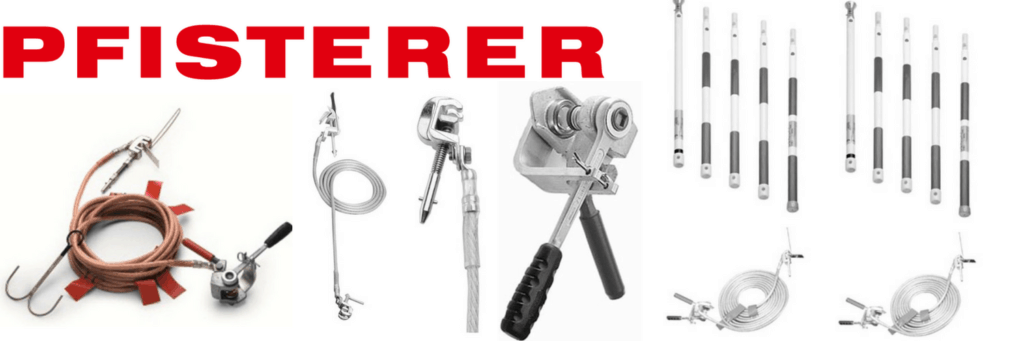

Earthing Devices For Rail Power Systems

Earthing devices that meet the highest quality and reliability area a prerequisite for work on overhead lines of electric railways. Pfisterer has been developing and producing earthing & short circuiting devices symbolising quality and reliability with a wide variety of options.

• Earthing and short-circuiting devices for short-circuit currents from 4.9 to 29. kA/s
• Copper earthing and short-circuiting cables can be supplied with cross-section from 25 mm2 to 150 mm2
• Individual conductors can be replaced by the appropriate connecting cluster
• Optimised protection from damage and atmospheric influences on cable ends
• Components suitable for different types of application
• Components dimensioned for high short-circuit currents

Thorne & Derrick also stock and distribute the CONNEX range of medium voltage electrical equipment and cable accessories manufactured by Pfisterer to support the construction and operation of Gas Insulated Switchgear, Transformers & Power Systems – this includes cable connectors, bushings, surge arresters and ancillary substation connection products.

Railway Earthing Devices for Overhead Lines

This railway earthing device is designed for use on overhead catenaries. It can be used for contact wire heights between 4.8m and 6.25m. The use of rail earthing clamp R50 allows non-protruding earthing, thus allowing diesel locomotive operation in earthed conditions.

• 1 contact wire earthing clamp 361 499 001
• 1 rail earthing clamp 363 322 005
• 1 earthing cable 8.5m or 12m long 362 138 138
• 1 suspension hook 360 453 453
• 1 telescopic type earthing pole (two-piece) 362 744 744

Railway Earthing Devices for Overhead Lines

This railway earthing device is designed for mobile use and is suitable for transport in cars and service vehicles of emergency services and fire brigades. The use of rail earthing clamp R50 allows non-protruding earthing thus allowing diesel locomotive operation in earthed conditions. To secure the working site the earthing pole and ratchet cab be removed.

• Transport length of 5-piece earthing pole approx 1.100mm
• Short-circuit capacity lk = 36.5kA/012s
• 1 segmented earthing pole No. 364 784 001
• 2 rail earthing clamps No. 363 322 005
• 2 contact wire earthing clamps No.361 499 001
• 2 short-circuiting cables 50mm
• 2 length 8.5m or 12m² length 8.5m 12m with red marking flags
• 1 storage case for earthing pole No. 364 786 001
• 1 storage case for 2 earthing devices No. 364 785 001

Railway Earthing Devices for Railway Power Lines

This railway earthing device is designed for use on railway power lines.

• 1 telescopic type earthing pole, two-piece, No 362 744 001
• 1 Earth clamp U2, No 361 346 001
• 1 contact wire earth clamp P50 with feeler rod No 363 418 003
• 1 short-circuiting cable 50mm², length 4m

Railway Earthing Devices for Transformers

This railway earthing device is designed for use on pole-mounted transformers on overhead lines.

• 1 telescopic type earthing pole 362 744 001
• 2 earth connection clamp U2 361 346 001
• 2 line connection clamps P4 , 360 332 001
• 2 short-circuiting cables 50mm² length 4m

Railway Earthing Devices For Construction Machines

This railway earthing device is suitable for protective earthing of construction machines

• 1 earth terminal clamp U2. 361 346 001
• 1 rail earthing clamp R50 363 32 005
• 1 short- circuiting cable 50mm² length 12m

Single-Pole Earthing & Short-Circuiting Cables

Fitted on both sides with compression type of cable lugs with 30º angled palms and 13mm mounting hole for M12 connecting screw. The conductor egress at the mouth of the cable lugs is provided with bending protection.
