Earthing & Short Circuiting

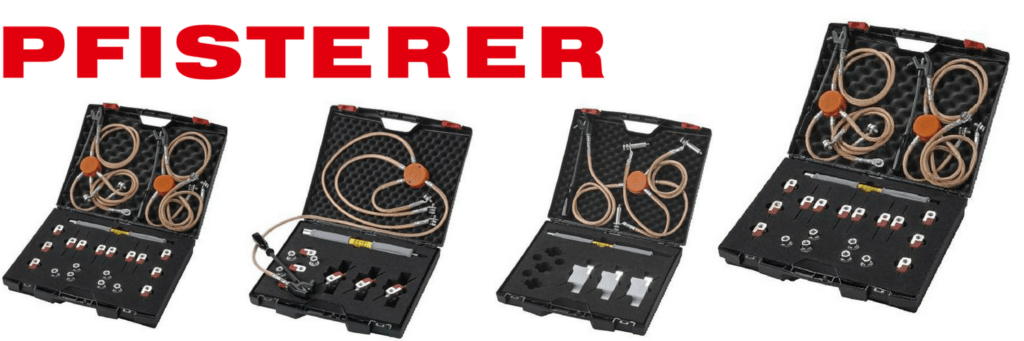

Pfisterer earthing and short circuiting devices are designed for use on LV low voltage distribution boards, cable distribution cabinets and fuse boxes – the earthing leads are supplied as a set consisting of the following components.

Further versions with different conductor lengths and types and different contents available on request.

Thorne & Derrick also stock and distribute the CONNEX range of medium voltage electrical equipment and cable accessories manufactured by Pfisterer to support the construction and operation of Gas Insulated Switchgear, Transformers & Power Systems – this includes cable connectors, bushings, surge arresters and ancillary substation connection products.

LV Earthing Case 1

• One Three-pole Earthing & Short-circuiting Device DIN VDE 0683 Part 100
• conductor cross-section: 25 mm²
• conductor lengths:
  • a = 300 mm
  • b = 600 mm
  • d = 800 mm
  • c = 1000 mm
• threaded screw connection for earthing cartridges
• earthing clamp for flat tape with flexible grip and two spindle settings
• 1 earthing grip, 350 mm
• 3 earthing cartridges, sizes 1 – 3
• 3 earthing cartridges, size 00
• 3 HRC fuse elements, size E33
• 1 plastic storage case with foam liners

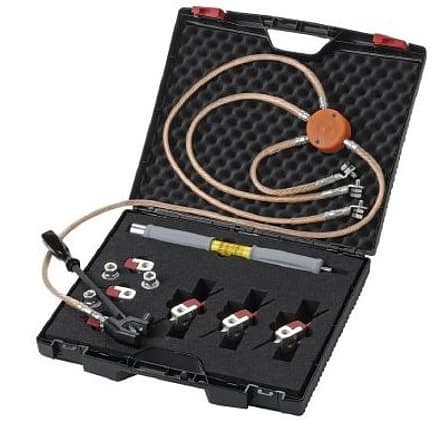

LV Earthing Case 1

LV Earthing Case 2

• Two Three-pole Earthing & Short-circuiting Device DIN VDE 0683 Part 100
• conductor cross-section: 25mm²
• conductor lengths:
  • a = 300 mm
  • b = 600 mm
  • d = 800 mm
  • c = 1000 mm
• threaded connector for earthing cartridges
• earthing clamp for flat tape with flexible grip and two spindle settings
• 1 earthing grip, 350 mm
• 6 earthing cartridges, sizes 1-3
• 6 earthing cartridges, size 00
• 6 HRC fuse elements, size E33
• 1 plastic storage case with foam liners

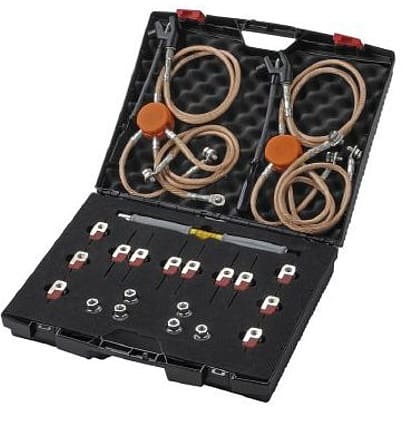

LV Earthing Case 2

LV Earthing Case 3

• One Three-pole Earthing & Short-circuiting Device DIN VDE 0683 Part 100
• conductor cross-section: 25 mm²
• conductor lengths:
  • a = 300 mm
  • b = 600 mm
  • d = 800 mm
  • c = 1000 mm
• threaded screw connection for earthing cartridges
• earthing clamp for flat tape with flexible grip and two spindle settings
• 1 earthing grip, 350 mm
• 3 earthing cartridges with electromagnetic interlock, size 1 – 3
• 1 plastic storage case with foam liners
