ENSTO SO118.425S Tension Clamps
Tension Clamp
Overhead Line EquipmentÂ
Low Voltage LV Overhead Lines
- ENSTO SO118.425S
- GTIN 6418677442261
- Clamp Application: 4 x (25 – 35) mm² Conductors
- Conductor Diameter: 8.4 – 9.2mm
- SMFL kN: 4 x 25 mm² 14.5 kN / 4 x 35 mm² 20 kN
- Also Suspension Clamps

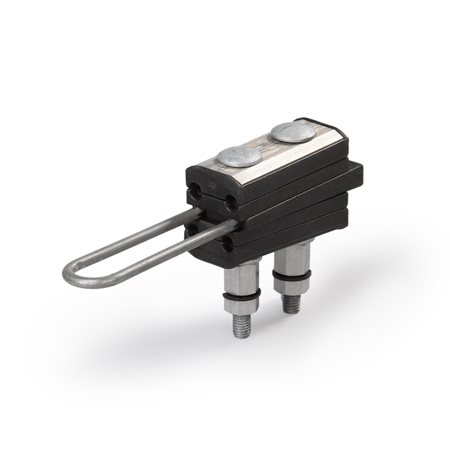

ENSTO SO118.425S is a tension clamp for the termination of four core LV ABC cable with hook fixing. Clamp is equipped with shear-head nuts.
The overhead line clamps have strong springs which keep the clamp in an open position during the installation of conductors. The clamping action functions through wedges.
The body is made of weather resistant aluminium alloy and the plastic parts of special fibreglass reinforced plastic.
