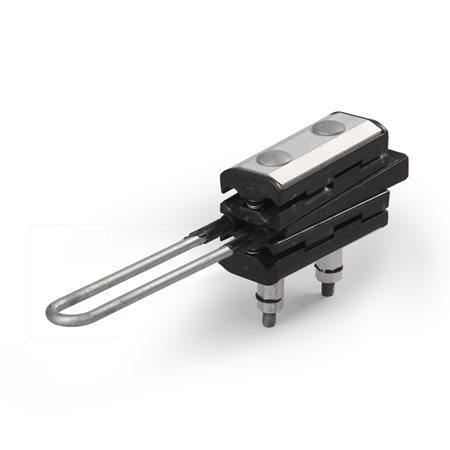

ENSTO SO118.1201S Tension Clamps
Tension Clamp
Overhead Line EquipmentÂ
Low Voltage LV Overhead Lines
- ENSTO SO118.1201S
- GTIN 6418677442247
- Clamp Application: 4 x (50 – 120) mm² Conductors
- Conductor Diameter: 10.8 – 16.7mm
- SMFL kN: 4 x 50 mm² – 23 kN / 4 x 70 mm² – 33 kN / 4 x 95 mm² – 35 kN / 4 x 120 mm² – 35 kN
- Also Suspension Clamps
ENSTO SO118.1201S is a tension clamp for the termination of four core LV ABC cable with hook fixing. The clamps have strong springs which keep the clamp in an open position during the installation of conductors.
The clamping action functions through wedges. The body is made of weather resistant aluminium alloy and the plastic parts of special fibreglass reinforced plastic.
