ENSTO SO158.1S Tension Clamps
Tension Clamp
Overhead Line EquipmentÂ
Low Voltage LV Overhead Lines
- ENSTO SO158.1S
- GTIN 6438100304669
- Clamp Application: 4 x (16 – 35) mm² Conductors
- Conductor Diameter: 7 – 10.2mm
- SMFL kN: 8,5 kN (4 x 16 mm² 5.0 kN, 4 x 35 mm² 8.5 kN)
- Also Suspension Clamps

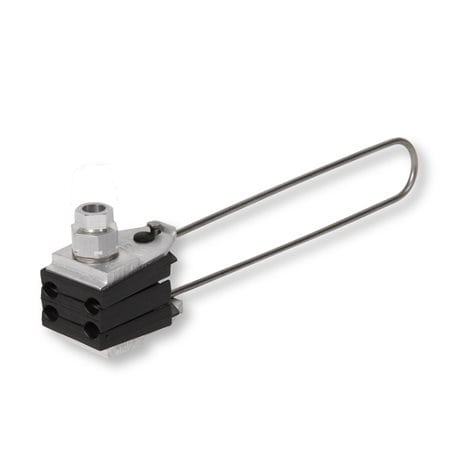

ENSTO SO158.1S tension clamp is used for the tensioning of a four core overhead cable to poles or walls by means of standard hooks.
The overhead line tension clamp is equipped with shearhead nuts.
