Euromold 480TB Tee Connector 11kV 33kV 42kV

Dead Break Elbow Connector

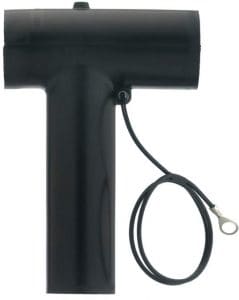

Euromold 480TB Plug-In Separable Tee Connector MV HV

Nexans Euromold 480TB elbow connectors (bolted tees) are used to terminate MV-HV XLPE/EPR (polymeric) insulated cables up to 42kV into Interface C Bushings according to CENELEC EN50180 and EN50181.

  • 1250A Connector Continuous Current Rating
  • 42kV Connector Maximum Voltage Rating

Euromold 480TB is a screened separable tee connector (bolted type) specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV
  • 18/30 (36) kV
  • 19/33 (36) kV
  • 20.8/36 (42) kV

To select the correct Euromold 480TB connector for termination of MV HV power cables with copper wire screen or tape screen to Interface C bushings (1250 Amp) full cable specification with dimensional information is required – see the Euromold 480TB download opposite for complete technical specification of the elbow connector.

Euromold connectors should be installed only by competent jointers trained in good safety practices involving high voltage electrical equipment.

Euromold 480TB

The Euromold 480TB tee connector with 630A – 1250A current rating is designed for Interface C and covers voltages from 12kV to 42kV with a maximum conductor size of 300sqmm.

Euromold 480TB plug-in tee connectors can be supplied as a straight connector (450SR) or a coupling connector (800PB, 804PB or 809PB) and with surge arresters (800SA or 300SA) – all suitable for use with Interface C Compact type bushings on SF6 gas-insulated switchgear.

Euromold 480TB separable tee connectors are designed to connect all polymeric screened cables to suit CENELEC Interface Type C (630-1250amp) equipment bushings up to 42kV.

Designed to connect polymeric insulated cables with a copper wire screen but can be used on wire armoured, copper tape screen cables with the use of additional screen earth kits and accessories.

Euromold Kit MT is required for use with copper tape screened cables, typically BS6622 cable – this comprises 3 lengths of tinned copper earth braid and constant force springs, the earth braid includes a soldered end with stud hole for the earthing connection to the HSGK cable gland or grounding point.

480TB connectors are suitable for terminating MV-HV cables with either “easy-peel” or bonded semicon screens – the 400 Series bolted tee connectors are specified for indoor cable termination applications, apply suffix (MWS) for outdoor cable connections where additional water-sealing and blocking mastic is required.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type C Compact interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface C Compact
  • Maximum Operating Current – 630A or 1250A (Amps)
  • Voltage Classes – 12kV 24kV 33kV 36kV 42kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Conductor Cross Section Sizes – 35-300sqmm
  • Core Insulation Diameter Range – 12.0-40.5mm
  • Applications – MV HV Switchgear, Transformers, Motors
  • Dead-Break or Load-Break – Dead Break Connectors

➡ See complete range of Nexans Euromold Connectors

Euromold 480TB Tee Connector 11kV 33kV 42kV

Euromold 480TB Tee Connector 11kV 33kV 42kV

EUROMOLD 480TB Specification

Euromold separable
connector
type 480TB
Voltage
Um
(kV)
Current Ir (A) – Interface C Bushings Current lr (A) Conductor sizes (sqmm)
When using a copper (CU-2) or a bolted (UN-5) conductor contact min max
480TB/G 11kV 12kV 630 Amps 1250 Amps 35 300
K480TB/G 11kV 24kV 630 Amps 1250 Amps 35 300
M480TB/G 11kV 24kV 36kV 630 Amps 1250 Amps 50 300
P480TB/G 11kV 24kV 36kV 42kV 630 Amps 1250 Amps 50 240
Euromold 480TB Tee Connector 11kV 33kV 42kV - Design

Euromold 480TB Tee 11kV 33kV 42kV – Design

Separable tee connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer moulded between the insert and the jacket.
  4. Type C interface as described by CENELEC EN 50180 and 50181.
  5. Conductor contact.
  6. Basic insulating plug (with VD point).
  7. Cable reducer.
  8. Conductive rubber cap.
  9. Clamping screw.
  10. Earthing lead.

The thick conductive EPDM jacket provides a safe to touch screen which ensures safety for personnel, cables and electrical equipment in medium/high voltage installations. The screen break design enables cable outer sheath testing without removing or dismantling the connector.

Euromold 480TB Selection Table

For Screened MV HV Tee Connectors

Select the Euromold 480TB the ordering part number which gives you the best centring of your core insulation diameter and substitute X using table X, according to the conductor size (sqmm) and type (copper or aluminium). Order Euromold MT connector kit to enable termination of copper tape screened MV-HV cables in voltage range 11kV (12kV) to 42kV – suitable for copper wire screened cables.

The complete Euromold 480TB tee connector kit comprises the following components – cable lubricant, field control mastic, installation rod, gloves, wipers, roll adhesive tape, installation instructions and crimp chart.

Kit Contents for Euromold 480TB Connectors

Kit Contents for Euromold 480TB Connectors



Euromold 480TB
Part Number
Dia. over core insulation (mm)
min max
3 x 480TB/G-11-X 12.0 17.5
3 x 480TB/G-16-X 17.0 23.5
3 x 480TB/G-18-X 19.0 28.0
3 x 480TB/G-22-X 23.5 32.0
3 x 480TB/G-27-X 28.5 37.5
3 x 480TB/G-30-X* 36.0 40.5

*Will include an adapted installation instruction.

Conductor
sizes
(sqmm)
Aluminium Cable Aluminium & Copper Conductor Copper Cable
DIN Hexagonal Crimp Deep Indent Crimp Bolted DIN Hexagonal Crimp
35sqmm 35AL2 35AL1 16.95UN5 35CU2
50sqmm 50AL2 50AL1 16.95UN5, 50.150UN5 50CU2
70sqmm 70AL2 70AL1 16.95UN5, 50.150UN5 70CU2
95sqmm 95AL2 95AL1 16.95UN5, 50.150UN5, 95.240UN5 95CU2
120sqmm 120AL2 120AL1 50.150UN5, 95.240UN5, 120.300UN5 120CU2
150sqmm 150AL2 150AL1 50.150UN5, 95.240UN5, 120.300UN5 150CU2
185sqmm 185AL2 185AL1 95.240UN5, 120.300UN5 185CU2
240sqmm 240AL2 240AL1 95.240UN5, 120.300UN5 240CU2
300sqmm 300AL2 N/A 120.300UN5 300CU2

SELECTING EUROMOLD 480TB CONNECTORS

Provide complete manufacturers cable specification and actual bushing interface type to ensure compatibility of the Euromold connector with the medium/high voltage cable, switchgear or electrical equipment. Specification and design of the Euromold 480TB bolted tee connectors are available as a download opposite.
