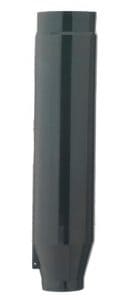

Euromold 450SR is a screened separable straight connector specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV

The Euromold 450SR straight connector with 630A current rating is designed for Interface A and covers voltages from 12kV to 24kV with a maximum conductor size of 300sqmm.

Euromold 450SR plug-in straight connectors can be supplied as a tee connector (480TB484TB or 489TB)  or a coupling connector (800PB804PB or 809PB) and with surge arresters (800SA or 300SA) – all suitable for use with Interface C Compact type bushings on SF6 gas-insulated switchgear.

Euromold 450SR straight connectors are designed to connect all polymeric screened cables to suit CENELEC Interface Type C (630amp) equipment bushings up to 24kV.

Designed to connect polymeric insulated cables with a copper wire screen but can be used on wire armoured, copper tape screen cables with the use of additional screen earth kits and accessories.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type C Compact interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface C Compact
  • Maximum Operating Current – 630A (Amps)
  • Voltage Classes – 12kV 24kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Conductor Cross Section Sizes – 250-300sqmm
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 450SR Specification

Euromold separable
connector
type
Voltage
Um
(kV)
Current Ir (A) Conductor sizes (sqmm)
min max
450SR 11kV 12kV 630 Amps 50 300
K450SR 11kV 24kV 630 Amps 25 300
Euromold 450SR Straight Connector 11kV 24kV - Design

Euromold 450SR Straight 11kV 24kV – Design

Separable straight connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer moulded between the insert and the jacket.
  4. Type C – 630 A interface as described by CENELEC EN 50180 and 50181.
  5. Conductor connector assembly.
  6. Retaining ring.
  7. Cable reducer.

The thick conductive EPDM jacket provides a safe to touch screen which ensures safety for personnel, cables and electrical equipment in medium/high voltage installations.

Euromold 450SR Selection Table

For Screened MV HV Straight Connectors

Select the Euromold the ordering part number which gives you the best centring of your core insulation diameter and substitute X using table X, according to the conductor size (sqmm) and type (copper or aluminium). Order Euromold MT connector kit to enable termination of copper tape screened MV-HV cables in voltage range 11kV (12kV) to 24kV – suitable for copper wire screened cables.

The complete Euromold 450SR straight connector kit comprises the following components – cable lubricant, wipers, installation instructions and crimp chart.

Kit Contents for Euromold 450SR Connectors

Kit Contents for Euromold 450SR Connectors



Euromold 450SR
Part Number
Dia. over core insulation (mm)
min max
450SR-06-X+11TL 16.5 21.5
450SR-08-X+11TL 19.9 24.4
450SR-10-X+11TL 23.2 28.0
450SR-12-X+11TL 26.1 31.0
450SR-14-X+11TL 30.0 36.1



Conductor
sizes
(sqmm)
Conductor Contact Type (DIN Standards Only)
Type 1 Type 2
Aluminium Copper Aluminium Copper
25sqmm N/A 25KM-11-2 N/A N/A
35sqmm 35KM-12-2 35KM-11-2 35KM-12-2-L 35KM-11-2-L
50sqmm 50KM-12-2 50KM-11-2 50KM-12-2-L 50KM-11-2-L
70sqmm 70KM-12-2 70KM-11-2 70KM-12-2-L 70KM-11-2-L
95sqmm 95KM-12-2 95KM-11-2 95KM-12-2-L 95KM-11-2-L
120sqmm 120KM-12-2 120KM-11-2 120KM-12-2-L 120KM-11-2-L
150sqmm 150KM-12-2 150KM-11-2 N/A N/A
185sqmm 185KM-12-2 185KM-11-2 N/A N/A
240sqmm 240KM-12-2 240KM-11-2 N/A N/A
300sqmm 300KM-12-2 300KM-11-2 N/A N/A
