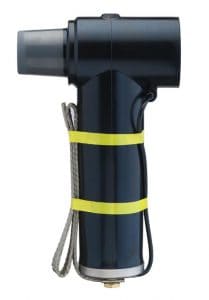

Euromold 300SA Surge Arrester 11kV 33kV

Euromold 300SA Surge Arrester 11kV 33kV

Euromold 300SA is a surge arrester (11kV-33kV) specified to protect MV-HV cables terminated into substations and connecting medium/high voltage cables in the following voltage classes:

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV
  • 18/30 (36) kV
  • 19/33 (36) kV

Euromold 300SA are surge arresters suitable for use with 430TB type Euromold connectors.

This surge arrester is a metal oxide varistor surge arrester in an elbow configuration that is tested for AC withstand and partial discharge prior to leaving the factory.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type C Compact interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Surge Arrester – Interface C Compact
  • Nominal Discharge Current – 10A (Amps)
  • Voltage Classes – 12kV 24kV 36kV 40.8kV Maximum
  • Surge Arrester Suits – 11kV 12kV 24kV 33kV Polymeric XLPE EPR Cables
  • High Current Impulse Withstand – 100kA
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 300SA Specification

Euromold 300SA Surge Arrester - Design

Euromold 300SA Surge Arrester – Design

Surge arrester comprising:

Surge Arresters MV HV

Surge Arresters MV HV

  1. Interface designed to fit the 430TB tee connector.
  2. Conductive EPDM insert.
  3. Conductive EPDM jacket.
  4. Insulating EPDM layer moulded between the insert and the jacket.
  5. Receptacle for contact rod.
  6. Metal oxide valve elements.
  7. Steel cap.
  8. Earth connection.
  9. Earth lead.

11kV 33kV Surge Arresters

To order the correct surge arrester for 11kV to 33kV power distribution systems please refer to the information below. Surge arresters provide lightning protection for MV-HV power systems installed within gas insulated substations operating at 11kV-33kV.

SELECTION TABLE FOR 11kv 33kv surge arresters

Euromold surge arrester Nominal discharge current Rated voltage Ur Max continuous operating voltage Steep current residual voltage @ 10 kA Lightning current residual voltage [8/20 µs] (kV) Switching impulse residual voltage [36/90 µs] (kV) High current
impulse
withstand
type In (kA) (kV) Uc (kV) [1/20 µs] (kV) @ 5kA @ 10kA @ 20kA @ 125A @ 500A (kA)
300SA-10-6N 10 6 4.8 20.4 16.8 18.3 20.5 12.9 13.7 100
300SA-10-9N 10 9 7.2 28.5 23.5 25.6 28.7 18.0 19.2 100
300SA-10-12N 10 12 9.6 38.0 31.4 34.2 38.3 24.1 25.7 100
300SA-10-15N 10 15 12.0 48.1 39.7 43.2 48.4 30.5 32.5 100
300SA-10-18N 10 18 14.4 58.1 48.0 52.2 58.5 36.8 39.2 100
300SA-10-22N 10 22 17.6 70.1 57.9 63.0 70.6 44.4 47.3 100
300SA-10-24N 10 24 19.2 77.0 63.6 69.2 77.6 48.8 52.0 100
300SA-10-30N 10 30 24.0 97.0 80.1 87.2 97.7 61.5 65.5 100
300SA-10-33N 10 33 26.4 103.4 85.4 93.0 104.2 65.6 69.9 100
300SA-10-36N 10 36 28.8 115.9 95.7 104.2 116.8 73.5 78.3 100
300SA-10-45N 10 45 36.0 144.1 119.0 129.5 145.1 91.3 97.3 100
300SA-10-51N 10 51 40.8 166.0 137.1 149.2 167.2 105.2 112.1 100
Euromold 300SA Surge Arrester - Typical Application & Dimensions

Euromold 300SA Surge Arrester – Typical Application & Dimensions

Why Install Surge Arresters?

Surge arresters provide primary circuit protection to MV-HV cable and power systems against high voltage surges caused by atmospheric (lightning) and switching over voltages. Nexans medium and high voltage surge arresters protect substation switchgear (both air and SF6 gas insulated type), transformers, cables, overhead transmission lines and capacitors. Protection levels include 6.6kV, 11kV and 33kV (up to 42kV) – call to discuss your requirements.
