Euromold 909PB Coupling Connector 11kV 33kV 42kV

Euromold 909PB is a screened separable coupling connector specified to terminate and connect medium/high voltage cables in the following voltage classes:

• 6/10 (12) kV
• 6.35/11 (12) kV
• 8.7/15 (17.5) kV
• 12/20 (24) kV
• 12.7/22 (24) kV
• 18/30 (36) kV
• 19/33 (36) kV
• 20.8/36 (42) kV

The Euromold 909TB coupling connector with 2500A current rating is designed for Interface F and covers voltages from 12kV to 42kV with a maximum conductor size of 1200sqmm.

Euromold 909PB plug-in tee connectors can be supplied as a tee connector (909TB or 944TB) or as plug-in type epoxy bushings – all suitable for use with Interface F type bushings on SF6 gas-insulated switchgear.

Euromold 909PB coupling connectors are designed to connect all polymeric screened cables to suit CENELEC Interface Type F (2500amp) equipment bushings up to 42kV.

Designed to connect polymeric insulated cables with a copper wire screen but can be used on wire armoured, copper tape screen cables with the use of additional screen earth kits and accessories.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type F interfaces.

• Manufacturer – Nexans Euromold
• MV HV Equipment Bushing Connector – Interface F
• Maximum Operating Current – 630A, 1250A or 2500 (Amps)
• Voltage Classes – 12kV 24kV 36kV 42kV Maximum
• Terminate & Connect Cables – Polymeric XLPE EPR
• Conductor Cross Section Sizes – 240-1200sqmm
• Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 909PB Specification

Euromold 909PB Coupling Connector 11kV 33kV 42kV – Design

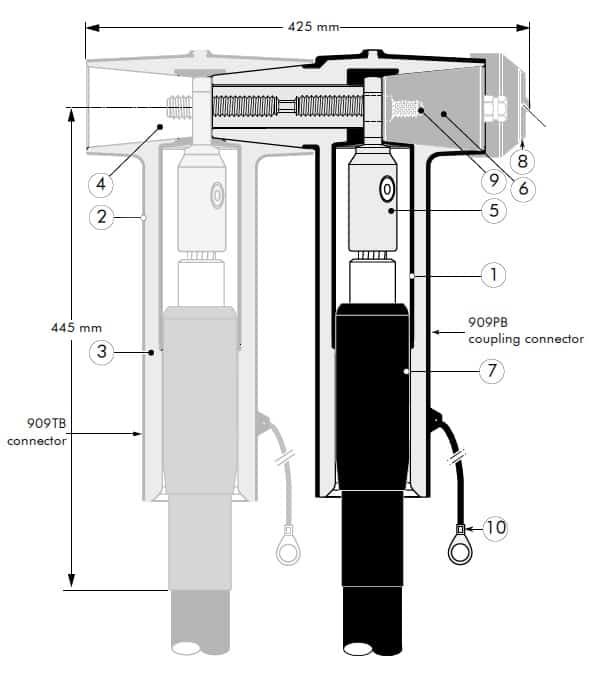

Separable tee connector comprising:

1. Conductive EPDM insert.
2. Conductive EPDM jacket.
3. Insulating EPDM layer moulded between the insert and the jacket.
4. Interface to fit 909TB.
5. Conductor contact.
6. Basic insulating plug.
7. Cable reducer.
8. Conductive rubber cap.
9. Stud+nut+washer.
10. Earthing lead.

The thick conductive EPDM jacket provides a safe to touch screen which ensures safety for personnel, cables and electrical equipment in medium/high voltage installations. The screen break design enables cable outer sheath testing without removing or dismantling the connector.

Euromold 909PB Selection Table

For Screened MV HV Coupling Connectors

Select the Euromold the ordering part number which gives you the best centring of your core insulation diameter and substitute X using table X, according to the conductor size (sqmm) and type (copper or aluminium). Order Euromold MT connector kit to enable termination of copper tape screened MV-HV cables in voltage range 11kV (12kV) to 42kV – suitable for copper wire screened cables.

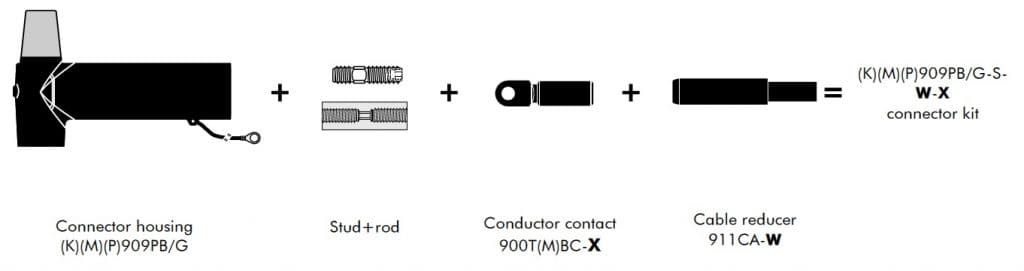

The complete Euromold 909PB coupling connector kit comprises the following components – cable lubricant, field control mastic, gloves, roll adhesive tape, installation instructions and crimp chart.

Kit Contents for Euromold 909PB Connectors
