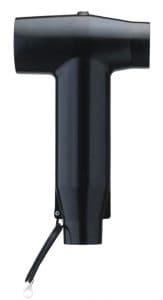

Euromold 944TB is a screened separable tee connector specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV
  • 18/30 (36) kV
  • 19/33 (36) kV
  • 20.8/36 (42) kV

The Euromold 944TB tee connector with 2500A current rating is designed for Interface F and covers voltages from 12kV to 42kV with a maximum conductor size of 800sqmm.

Euromold 944TB plug-in tee connectors can be supplied with coupling connectors (909PB) and are compatible with plug-in type epoxy bushings – all suitable for use with Interface F Compact type bushings on SF6 gas-insulated switchgear.

Euromold 944TB separable tee connectors are designed to connect all polymeric screened cables to suit CENELEC Interface Type F (2500amp) equipment bushings up to 42kV.

Designed to connect polymeric insulated cables with a copper wire screen but can be used on wire armoured, copper tape screen cables with the use of additional screen earth kits and accessories.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type F Compact interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface F
  • Maximum Operating Current – 1250A or 2500 (Amps)
  • Voltage Classes – 12kV 24kV 36kV 42kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Conductor Cross Section Sizes – 95-800sqmm
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

Euromold 944TB Tee Connector 11kV 33kV 42kV

Euromold 944TB Tee Connector 11kV 33kV 42kV

EUROMOLD 944TB Specification

Euromold separable
connector
type
Voltage
Um
(kV)
Current Ir (A) Conductor sizes (sqmm)
min max
944TB/G 11kV 12kV 2500 Amps 95 800
K944TB/G 11kV 24kV 2500 Amps 95 800
M944TB/G 11kV 24kV 36kV 2500 Amps 95 800
P944TB/G 11kV 24kV 36kV 42kV 1250 Amps 95 800
Euromold 944TB Tee Connector 11kV 33kV 42kV - Design

Euromold 944TB Tee Connector 11kV 33kV 42kV – Design

Separable tee connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer moulded between the insert and the jacket.
  4. Type F interface as described by CENELEC EN 50180 and 50181.
  5. Conductor connector.
  6. Clamping screw.
  7. Cable reducer.
  8. Basic insulating plug (with VD point), type C interface as described by CENELEC EN 50180 and 50181.
  9. Conductive rubber cap.
  10. Earthing lead.

The thick conductive EPDM jacket provides a safe to touch screen which ensures safety for personnel, cables and electrical equipment in medium/high voltage installations. The screen break design enables cable outer sheath testing without removing or dismantling the connector.

Euromold 944TB Selection Table

For Screened MV HV Tee Connectors

Select the Euromold the ordering part number which gives you the best centring of your core insulation diameter and substitute X using table X, according to the conductor size (sqmm) and type (copper or aluminium). Order Euromold MT connector kit to enable termination of copper tape screened MV-HV cables in voltage range 11kV (12kV) to 42kV – suitable for copper wire screened cables.

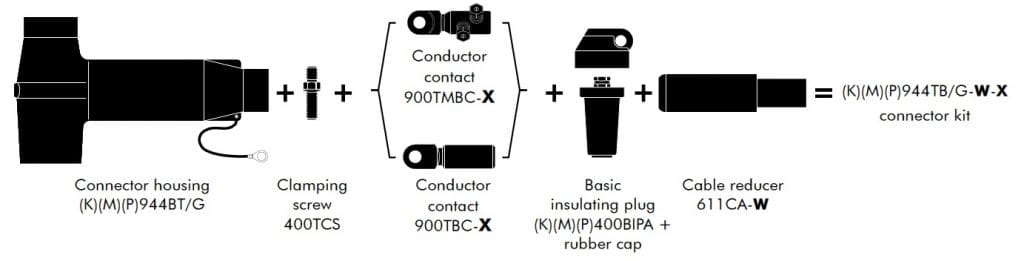

The complete Euromold 944TB tee connector kit comprises the following components – cable lubricant, wipers, installation instructions and crimp chart.

Kit Contents for Euromold 944TB Connectors

Kit Contents for Euromold 944TB Connectors



Euromold 944TB
Part Number
Dia. over core insulation (mm)
min max
944TB/G-15-X 16.0 22.0
944TB/G-19-X 20.0 26.5
944TB/G-22-X 23.5 31.0
944TB/G-27-X 28.5 37.5
944TB/G-32-X 34.0 42.5
944TB/G-37-X 39.0 48.5
944TB/G-43-X 45.5 56.0



Conductor
sizes
(sqmm)
Aluminium Cable Aluminium & Copper Conductor Copper Cable
DIN Hexagonal Crimp Deep Indent Crimp Bolted DIN Hexagonal Crimp
95sqmm 95AL2 95AL1 95.150UN5 95.240UN5 95CU2
120sqmm 120AL2 120AL1 95.150UN5 95.240UN5, 120.300UN5 120CU2
150sqmm 150AL2 150AL1 95.150UN5 95.240UN5, 120.300UN5 150CU2
185sqmm 185AL2 185AL1 95.240UN5, 120.300UN5, 185.400UN5 185CU2
240sqmm 240AL2 240AL1 95.240UN5, 120.300UN5, 185.400UN5 240CU2
300sqmm 300AL2 300AL1 120.300UN5, 185.400UN5 300CU2
400sqmm 400AL2 400AL1 185.400UN5, 400.630UN5 400CU2
500sqmm 500AL2 500AL1 400.630UN5 500CU2
630sqmm 630AL2 630AL1 400.630UN5 630CU2
800sqmm N/A N/A N/A 800CU2
