Battery Powered Cable Cutting Tool 32mm Dia – Klauke ES 32 ISM VDE
Klauke ES 32 ISM VDE
Insulated Battery Powered
Cable CUtting Tool
Klauke ES 32 ISM VDE | Electrical Safety Tools
Orange Tools with Insulated Protection for Cutting & Crimping Cables

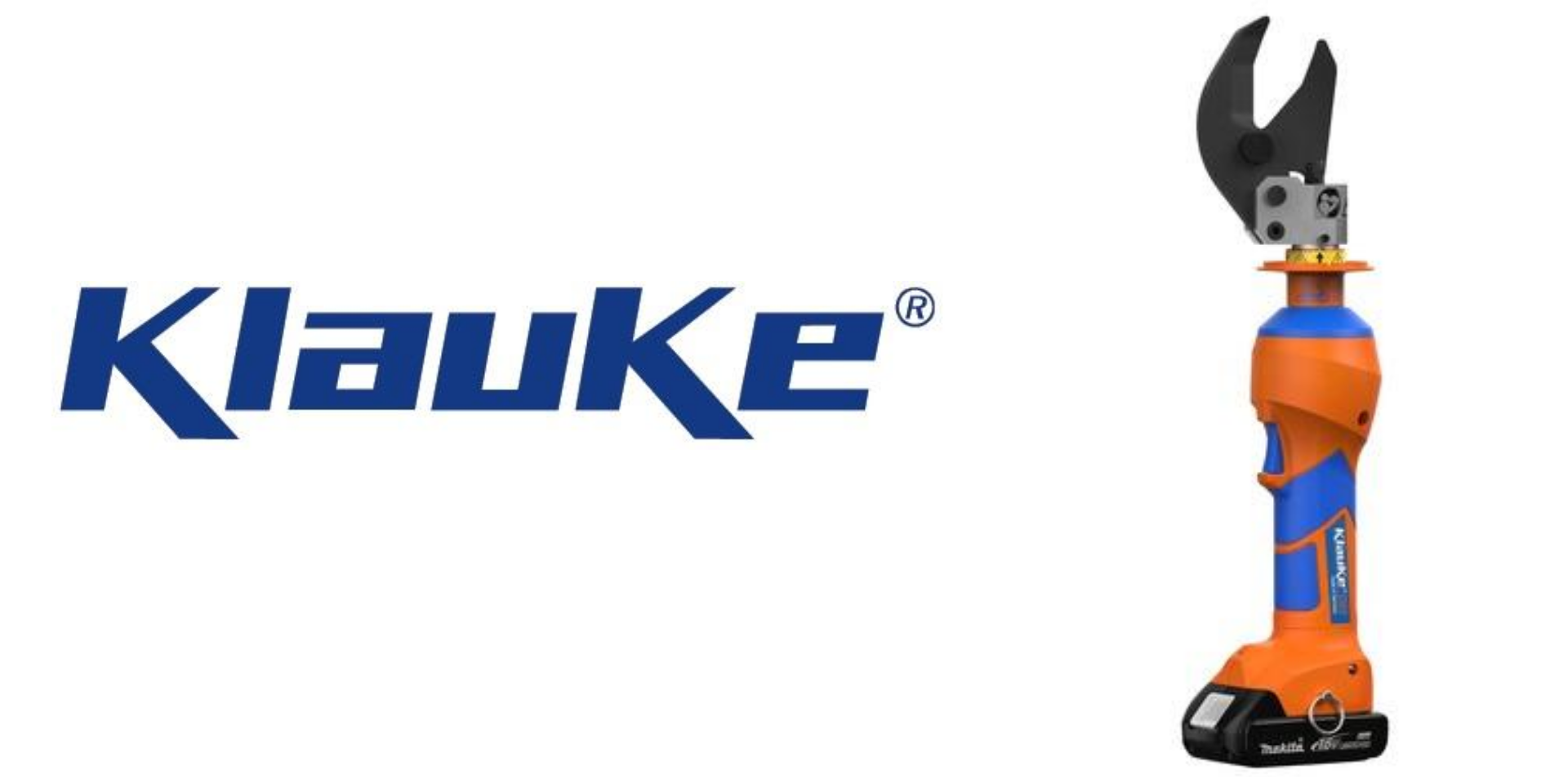

The Klauke ES 32 ISM VDE is a battery powered cutting tool that has a maximum diameter range for cable lugs and connectors of 32mm – suitable for cutting multi-stranded copper and aluminium cables. The Klauke ES32 has a slim cutting head ideal for work in confined spaces.
The ES 32 is part of the Klauke Orange Tool range insulated and VDE certified to 1000 V for increased safety when working on potentially voltage-carrying electrical equipment or crimping conductors to facilitate the installation of joints and terminations.
The orange housing of the battery powered cable crimping tool makes it easily differentiated from standard crimping tools and the built-in display allows user to view all tool data instantly.
➡ See also: Battery Operated Cable Cutting Tools & Battery Operated Cable Crimping Tools
KLAUKE ES 32
CABLE CuttING TOOL
- Open head, rotatable
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- Simple and safe: Automatic retraction when operation is complete
- Manual retract stop (MRS) for efficient operations
- Always ready-to-use thanks to battery charge and service display
suitable for
- Stranded Cu and Al cables
Klauke ES 32 ISM VDE
TECHNICAL SPECIFICATION
The following table outlines the performance specification of the Klauke ES 32 ISM VDE cutting tool:
| Head type | Cutter open |
| Cable cutting range | max. 32 mm dia. (depending on cable/wire type) mm |
| Cable cutting force |
15 kN |
| Cutting time | 8 s to 10 s (depending on material thickness) |
| Battery voltage | 18 V |
| Battery capacity | 1.5 Ah, Li-Ion |
| Charging time | 15 min |
| Weight incl. battery | 2.1 kg |
| Ambient temperature | -10°C to +40°C |

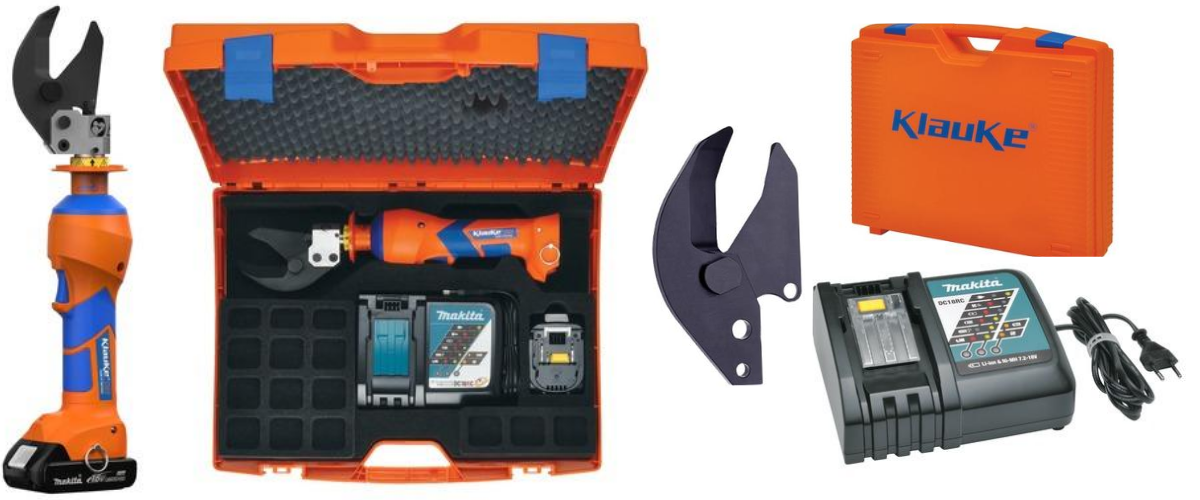

Klauke ES 32 ISM VDE – Orange Tools
CABLE TOOLS
Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.
Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
View the complete range of Cable Crimping & Cable Cutting Tools
