N2XCH Cable
0.6/1kV Armoured LSZH Power & Solar Cable

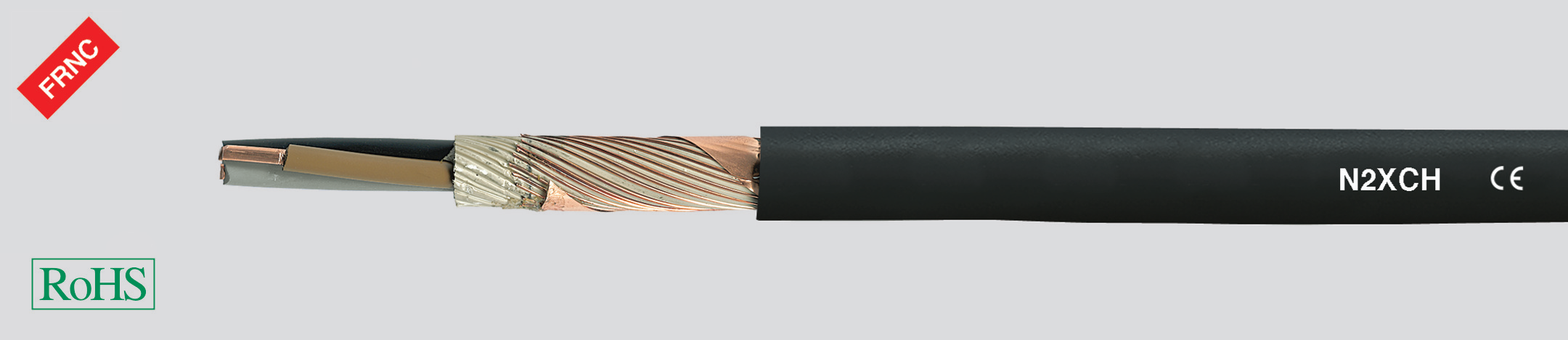

The N2XCH Power & Solar Cable from HELUKABEL is a halogen-free, flame-retardant armoured power and control cable with concentric copper conductor, designed for safe and reliable energy transmission. Engineered for environments demanding low smoke emission and zero halogen release, this cable is ideal for critical infrastructure such as power stations, industrial sites, hospitals, airports, and tunnels.
N2XCH is suitable for fixed installation indoors, outdoors, underground (in conduits), or embedded in concrete or plaster, where mechanical stress is anticipated and fire protection is a priority. The concentric conductor may be used as a PE, PEN conductor, or screen.
Helukabel | Electric Power Cables MV HV 11kV 33kV | Low Medium High Voltages
N2XCH Cable Key Features
-
Voltage Rating: 0.6/1 kV
-
Conductor: Bare copper, class 1/2 (solid or stranded), IEC 60228
-
Core Insulation: Cross-linked polyethylene (XLPE), type 2XI1
-
Cable Sheath Material: LSZH polyolefin (HM4), black, halogen-free
-
Armour: Concentric copper wires
-
Flame Retardance: IEC 60332-3-24, EN 60332-3-24
-
Smoke Emission: IEC 61034-1/2
-
Gas Emission: IEC 60754-1/2 (halogen-free, low corrosivity)
-
Temperature Rating: -30°C to +90°C (fixed); -5°C to +50°C (installation)
-
Minimum Bending Radius: 12x cable Ø
-
Radiation Resistance: up to 100 Mrad
-
Test Voltage: 4 kV
Cable Applications
N2XH cable is used in:
-
Power stations and process control centres
-
Commercial buildings, airports, hospitals, schools
-
Underground and conduit installations
-
Public areas requiring reduced flame propagation and toxic gas emission
N2XCH Cable – 2-CorE to 4-core Technical Specifications
| Part No. | No. of Cores × Cross-Section (mm²) | Outer Ø (mm) | Cu Weight (kg/km) | Total Weight (kg/km) | AWG No. |
|---|---|---|---|---|---|
| 53200 | 2 x 1.5 / 1.5 re | 12.0 | 53.0 | 250.0 | 16 |
| 53201 | 2 x 2.5 / 2.5 re | 13.0 | 81.0 | 280.0 | 14 |
| 53202 | 2 x 4 / 4 re | 14.0 | 122.0 | 320.0 | 12 |
| 53203 | 2 x 6 / 6 re | 15.0 | 183.0 | 400.0 | 10 |
| 53204 | 2 x 10 / 10 re | 16.0 | 311.0 | 560.0 | 8 |
| 53205 | 2 x 16 / 16 re | 19.1 | 490.0 | 780.0 | 6 |
| 53206 | 3 x 1.5 / 1.5 re | 13.0 | 67.0 | 250.0 | 16 |
| 53207 | 3 x 2.5 / 2.5 re | 14.0 | 104.0 | 320.0 | 14 |
| 53208 | 3 x 4 / 4 re | 16.5 | 161.0 | 400.0 | 12 |
| 53209 | 3 x 6 / 6 re | 18.0 | 242.0 | 500.0 | 10 |
| 53210 | 3 x 10 / 10 re | 20.0 | 408.0 | 750.0 | 8 |
| 53211 | 3 x 16 / 16 re | 22.5 | 643.0 | 1000.0 | 6 |
| 53212 | 3 x 25 / 16 rm | 27.0 | 902.0 | 1600.0 | 4 |
| 53213 | 3 x 35 / 16 rm | 27.5 | 1190.0 | 1900.0 | 2 |
| 53214 | 3 x 50 / 25 rm | 32.3 | 1723.0 | 2400.0 | 1 |
| 53215 | 3 x 70 / 35 sm | 35.6 | 2410.0 | 3060.0 | 2/0 |
| 53216 | 3 x 95 / 50 sm | 39.0 | 3296.0 | 4200.0 | 3/0 |
| 53217 | 3 x 120 / 70 sm | 42.0 | 4236.0 | 5207.0 | 4/0 |
| 53218 | 3 x 150 / 70 sm | 43.5 | 5100.0 | 5700.0 | 300 kcmil |
| 53219 | 3 x 185 / 95 sm | 47.4 | 6383.0 | 7150.0 | 350 kcmil |
| 53220 | 3 x 240 / 120 sm | 53.5 | 8240.0 | 9250.0 | 500 kcmil |
| 53221 | 4 x 1.5 / 1.5 re | 13.5 | 81.0 | 300.0 | 16 |
| 53222 | 4 x 2.5 / 2.5 re | 14.5 | 129.0 | 380.0 | 14 |
| 53223 | 4 x 4 / 4 re | 17.5 | 202.0 | 480.0 | 12 |
| 53224 | 4 x 6 / 6 re | 19.0 | 297.0 | 600.0 | 10 |
| 53225 | 4 x 10 / 10 re | 21.5 | 504.0 | 850.0 | 8 |
| 53226 | 4 x 16 / 16 re | 24.5 | 797.0 | 1200.0 | 6 |
| 53227 | 4 x 25 / 16 rm | 29.0 | 1142.0 | 1800.0 | 4 |
| 53228 | 4 x 35 / 16 rm | 29.5 | 1528.0 | 2100.0 | 2 |
| 53229 | 4 x 50 / 25 sm | 32.5 | 2203.0 | 2800.0 | 1 |
| 53230 | 4 x 70 / 35 sm | 38.0 | 3082.0 | 3800.0 | 2/0 |
| 53231 | 4 x 95 / 50 sm | 43.5 | 4208.0 | 5100.0 | 3/0 |
| 53758 | 4 x 120 / 70 sm | 50.5 | 5388.0 | 6556.0 | 4/0 |
| 53759 | 4 x 150 / 70 sm | 52.1 | 6540.0 | 7600.0 | 300 kcmil |
| 53760 | 4 x 185 / 95 sm | 57.2 | 8159.0 | 9370.0 | 350 kcmil |
| 53761 | 4 x 240 / 120 sm | 62.6 | 10546.0 | 11611.0 | 500 kcmil |
N2XCH Cable – 7-Core to 30-Core Specifications
| Part No. | No. of Cores × Cross-Section (mm²) | Outer Ø (mm) | Cu Weight (kg/km) | Total Weight (kg/km) | AWG No. |
|---|---|---|---|---|---|
| 53232 | 7 x 1.5 / 2.5 re | 15.0 | 132.0 | 320.0 | 16 |
| 53239 | 7 x 2.5 / 2.5 re | 15.5 | 200.0 | 400.0 | 14 |
| 53246 | 7 x 4 / 4 re | 18.1 | 316.0 | 580.0 | 12 |
| 53233 | 10 x 1.5 / 2.5 re | 17.2 | 177.0 | 420.0 | 16 |
| 53240 | 10 x 2.5 / 4 re | 18.9 | 287.0 | 550.0 | 14 |
| 53234 | 12 x 1.5 / 2.5 re | 18.4 | 204.0 | 460.0 | 16 |
| 53241 | 12 x 2.5 / 4 re | 19.2 | 335.0 | 610.0 | 14 |
| 53247 | 12 x 4 / 6 re | 22.6 | 528.0 | 910.0 | 12 |
| 53235 | 16 x 1.5 / 4 re | 20.0 | 275.0 | 686.0 | 16 |
| 53242 | 16 x 2.5 / 6 re | 20.9 | 450.0 | 805.0 | 14 |
| 53236 | 21 x 1.5 / 6 re | 22.6 | 370.0 | 766.0 | 16 |
| 53243 | 21 x 2.5 / 6 re | 25.2 | 572.0 | 1015.0 | 14 |
| 53237 | 24 x 1.5 / 6 re | 23.2 | 412.0 | 800.0 | 16 |
| 53244 | 24 x 2.5 / 10 re | 26.1 | 695.0 | 1100.0 | 14 |
| 53238 | 30 x 1.5 / 6 re | 24.3 | 500.0 | 930.0 | 16 |
| 53245 | 30 x 2.5 / 10 re | 28.0 | 842.0 | 1290.0 | 14 |
