Pfisterer 827 186 213 test connecting parts are suitable for electrical testing of CONNEX Size 3 42kV 800A bushings integral to medium/high voltage MV-HV electrical equipment.

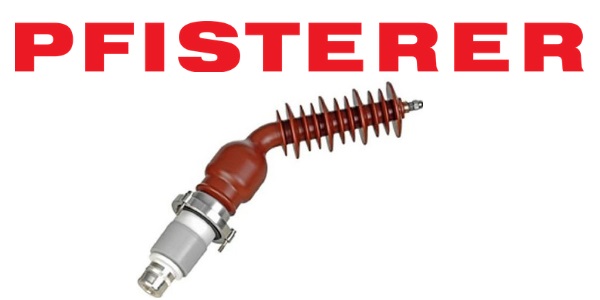

CONNEX 827 186 213 test connecting part is designed with a 45° angle to fulfill multiple usage requirements – the test connecting parts are used as transitional connecting parts when transformers that are equipped with CONNEX bushings are connected to blank (overhead) lines up to 42kV.
To support the installation of medium/high voltage power cables and overhead line conductors on MV-HV substation and grid projects we stock and distribute surge arresters, bushings and CONNEX inner cone plug terminations manufactured by Pfisterer for the connection of 11kV/33kV/66kV voltage cables into SF6 gas insulated switchgear bushings (GIS).
- Pfisterer Part Number: 827 186 213
- CONNEX Test Connecting Parts Size 3
- Max. system voltage – 42kV
- Rated lightning impulse withstand voltage (BIL) – 200kV
- Rated power frequency withstand voltage – 95kV
- Nominal current INÂ (A) – 800Amps
- DC voltage test – 125kV
- Thread – M12
Pfisterer 827 186 213
Technical Data
| Test Connecting Part | Bushing Size 3 | |
|---|---|---|
| Max. system voltage | Um (kV) | 42kV |
| Rated lightning impulse withstand voltage (BIL) | (kV) | 200Â BIL |
| Rated power frequency withstand voltage | 1 min (kV) | 95kV |
| Nominal current | INÂ (A) | 800Amps |
| DC voltage test | 15 min 6 x U0Â (kV) | 125kV |
| Thread | G | M12 |
Pfisterer 827 186 213 – Test Leads
