Pfisterer 827228002 Cable Joint

Pfisterer 827 228 002 CONNEX Cable Joint

MV Cable Joint | Connex

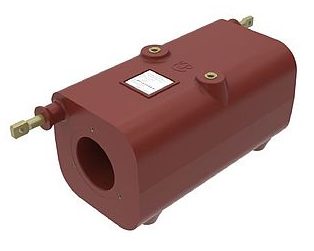

Pfisterer 827 228 002 is a medium voltage cable joint used for the connection of MV cables in underground applications – for use underground or offshore cable installations, the bell flanges of the separable connectors must be made of a special material. Single-pole, resistant to outdoor, soil-resistant, offshore-proof, plug-in type MV joint. The single-pole connection joint is supplied as factory-built by Pfisterer, the contact bushings are integrated into the soil-resistant insulating body. The connection is established by inserting the CONNEX separable connector.

• Cable Joint Size | Size 3
• Joint Voltage | MV Medium Voltage up to 52kV
• Application | Connection & Jointing of Outdoor Offshore Underground Cables

The screen connection inside of the joint represents a cable screen up to max. 95 mm². Soil sensitivity cannot be eliminated at size 3 (Shrinking on a heat-shrink tubing is not possible with a size 3 joint).

The connecting rail of the cable screen in the joint is insulated from the joint shield and thus insulated from the bell flange. For cable sheath fault testing, a test voltage can be applied between the cable screen and earth potential/joint shield.

Pfisterer 827 228 002

Technical Data

Pfisterer CONNEX and SEANEX brand of Medium Voltage connectors and cable accessories are designed to connect, joint or “plug-in” polymeric insulated cables (XLPE EPR) into gas insulated switchgear (GIS), ring main units RMUs), circuit breakers, motors, transformers, transducers and sealing boxes. Thorne & Derrick stock CONNEX cable terminations for high voltage cable connections into metal-enclosed switchgears with inner cone bushings, 11kV/33kV/52kV.

Pfisterer CONNEX | Cable Joints | Pluggable | MV Medium Voltage 33kV 52kV
