Pfisterer Sicon 332 605 010 shearbolt cable lugs are suitable for the conductor termination of 95-400sqmm LV, MV and HV cables 11kV-33kV – compatible with all types of Coldshrink and heatshrink MV HV cable joints.

  • Order Reference – Pfisterer Sicon 332 605 010
  • Solid Circular Cables – 95-400sqmm
  • Stranded Circular Cables – 95-300sqmm
  • Solid Sector Cables – 95-240sqmm
  • Stranded Sector Cables – 95-240sqmm
  • Compacted Circular Cables – 95-300sqmm
  • Stud Hole – M12
  • Hexagon Size – SW8
  • Number of Bolts – 2
  • Overall Length – 120mm
  • Barrel Diameter – 38mm
  • Internal Bore – 24mm
  • PADS Number Network Rail Approved Cable Lug Connectors – 054/212163
  • Compatible with MV-HV Cold Shrink and Heat Shrink Joints & Terminations
  • See also: Cable Crimps, Lugs & Connectors
Shearbolt Cable Lugs 95-400sqmm Cables 11kV-33kV

Shearbolt Cable Lugs 95-400sqmm Cables 11kV-33kV

PFISTERER SICON SELECTION TABLE
Pfisterer Sicon Order Reference Solid Circular sqmm Stranded Circular sqmm Solid Sector sqmm Stranded Sector sqmm Compacted Circular sqmm Stud Hole Hexagon Size Number of Bolts Overall Length Barrel Diameter Internal Bore Network Rail PADS Number
332/605/010 95-400sqmm 95-300sqmm 95-240sqmm 95-240sqmm 95-300sqmm M12 SW8 2 120.0 38.0 24.0 054/212163



Cable Connectors For Joints or Terminations

➡ For jointing 11kV-33kV conductors using mechanical cable connectors please ensure the physical dimensions of the connector are compatible with the proposed cold shrink, heat shrink or push-on cable joint – MV HV cable connectors are available for termination, straight and branch jointing of MV-HV cables.

Thorne & Derrick distribute Pfisterer CONNEX Connectors for medium and high voltage cable connection and termination to electrical systems – we provide competitive prices for Pfisterer CONNEX connectors used to terminate and connect polymeric insulated MV-HV cables into gas insulated switchgear and electrical equipment from extensive stocks to UK and international destinations.

Pfisterer Sicon 332 605 010Pfisterer

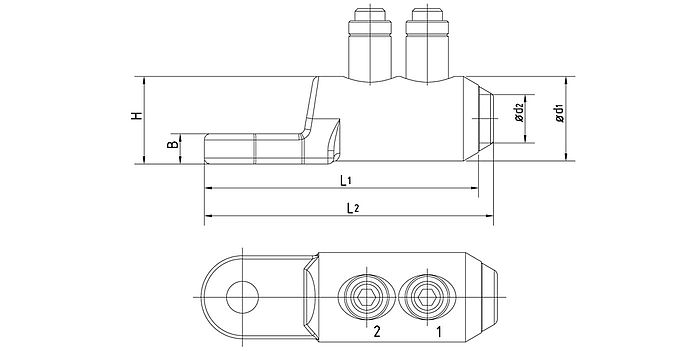

Cable connector Dimensions
  • Diameter D1 ø d1 (mm) 38
  • Diameter D2 ø d2 (mm) 24
  • Diameter L1 ø L1 (mm) 120
  • Diameter L2 ø L2 (mm) 123

Pfisterer Sicon 332 605 010 Shearbolt Cable Lugs











Pfisterer CONNEX Inner Cone Cable Plugs

T&D also stock Pfisterer CONNEX Inner Cone Plugs providing a screened separable connector for HV cable terminations on gas insulated switchgear (GIS) up to 33kV
