Prysmian 382AA01 13-18mm Ranger Single Cable Cleat
bicon 382AA01
Ranger Single Cable Cleat
Prysmian 382AA01 Ranger plastic cable cleats are made from ABS providing excellent oil and chemical resistance – Ranger 382 cleats are part of the Prysmian BICON range of single way cable cleats.
Prysmian 382AA01 cable cleats with single bolt fixing and ‘C’ section channel location aiding fixing and stacking are suitable for LV, MV, HV cables up to 18mm outer sheath diameter.
Prysmian 382AA01 cable cleat
Technical Specification
- Manufacturer Prysmian
- Cable Cleat Brand BICON
- Plastic Cable Cleats
- Two Piece, Single Bolt Fixing
- Single Way Cable Cleats
- Cable Cleat Diameter Min 13mm
- Cable Cleat Diameter Max 18mm
- SWL (Safe Working Load) FO52 300 (kgfl)
- Plastic, Stainless Steel or Aluminium – view complete range of Cable Cleats
Prysmian BICON Ranger 382AA01

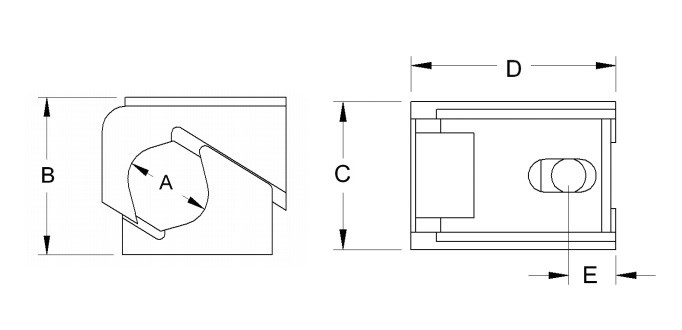

prysmian 382AA01 Cleat Dimensions
- B Max 35.5mm
- C 47mm
- D 49mm
- E 18mm
- Weight 51g
SINGLE CABLE CLEAT SELECTION TABLE
Specification details for Prysmian 382AA01 cable cleat for single cable applications:
| Prysmian Ranger Cable Cleat Selection | Prysmian Ranger Cable Cleat Details | |||||||
| Prysmian BICON Order Code | Cable Diameter | Dimensions (mm) | SWL FOS2 (kgfl) | Weight (g) | ||||
| A (mm) | B | C | D | E | ||||
| Min | Max | |||||||
| 382AA01 | 13 | 18 | 35.5 | 47 | 49 | 18 | 300 | 51 |
Call T&D for technical advice about selecting cable cleats for LV-HV cables, this includes fire resistant and trefoil cable cleats for clamping single core power cables operating at LV, 11kV and 33kV medium/high voltages.
Single Way Cable Cleats – plastic, stainless steel and aluminium cable clamps are available for clamping LV, MV & HV cables.
Cable cleats, joints, glands and jointing tools for low, medium and high voltage cables, including 11kV and 33kV visit Prysmian.
