Prysmian Orion Trefoil Cable Cleats (Aluminium) LV MV HV

Cable Cleats

Prysmian Orion are trefoil cable cleats made from aluminium alloy and are used to clamp, support and retain LV, HV & HV cables (including 11kV-33kV cables) in trefoil formation where single core power cables require adequate protection against high short circuit faults.

Prysmian orion cleats are part of the Prysmian BICON trefoil range of cable cleats suitable for clamping LV, MV, HV cables with diameters 62 to 186m featuring deep cast bases to aid easy cable installations.

Epoxy coated versions are available for harsher environments.

Prysmian Orion Features & Benefits

  • Orion cleats are suitable for clamping LV, MV, HV cables with diameters 62 to 186mmPrysmian Orion Trefoil Cable Cleats (Aluminium) LV MV HV
  • All Prysmian Orion cleats are manufactured from aluminium alloy
  • Aluminium cable cleats with single or two bolt fixing
  • Designed for use with larger diameter single core cables laid in trefoil formation
  • Deep section cast bases aid cable installation
  • Can be supplied with rubber liners
  • Profiled versions are available to meet specific design requirements
  • Tested in accordance with EN 50368:2003

Prysmian Orion Cleats Performance Data

Aluminium Cable Cleats

BS EN 61914 Clause Classification
Type 6.1.1 Composite
Operating Temperature 6.2 -40ºC to +105ºC
Impact Resistance 6.3 Heavy
Needle Flame 10.1 > 120 seconds
Resistance To Short Circuit 6.4.4 (2 short circuit) (HV Cable used) 31kA rms, 80kA peak
Corrosion 6.5.2 High, Outdoor – Wet conditions (coating required for marine locations)

Also from Prysmian ➡  Fire Resistant Cable Cleats | Single Way Cable Cleats

Aluminium Cable Cleats

Aluminium steel cable cleats are designed to fix, retain and support low and high voltage cables.

➡ Prysmian have a range of aluminium cable cleats providing cable support and protection for larger cable (51mm to 159mm) diameters providing cable support for all types of cable routes with operating temperatures -60°C to +105°C.

Prysmian Orion – Standard

Cable and Cleat Selection Cable Cleat Details
Prysmian BICON 376 Orion Cable Cleats Cable Diameter Dimensions (mm) Weight (kg) Stud Size
A C B
Standard Cable Cleat Epoxy Coated Cable Cleat Min Max
376TR06 376TE06 62 75 260 216 80 2.484 M12
376TR07 376TE07 75 90 295 251 80 3.326 M12
376TR08 376TE08 90 107 340 296 100 4.168 M12
376TR09 376TE09 107 129 390 346 100 4.951 M12
376TR10 376TE10 129 155 450 406 125 9.500 M12
376TR11 376TE11 155 186 525 481 150 11.536 M12

Prysmian Orion Trefoil Cable Cleats (Aluminium) LV MV HV

Installing Orion Cable Cleats In Trefoil For LV-HV (11kV-33kV) Cable Clamping & Support

Prysmian Orion Cleats all have the facility for single or two bolt fixing hole for a M12 bolt. If 2 bolt fixings are used a minimum grade of 8.8 must be selected. 376TR11 and 376TE11 have four fixing bolts. Dimension C as above with 70mm between the bolts.

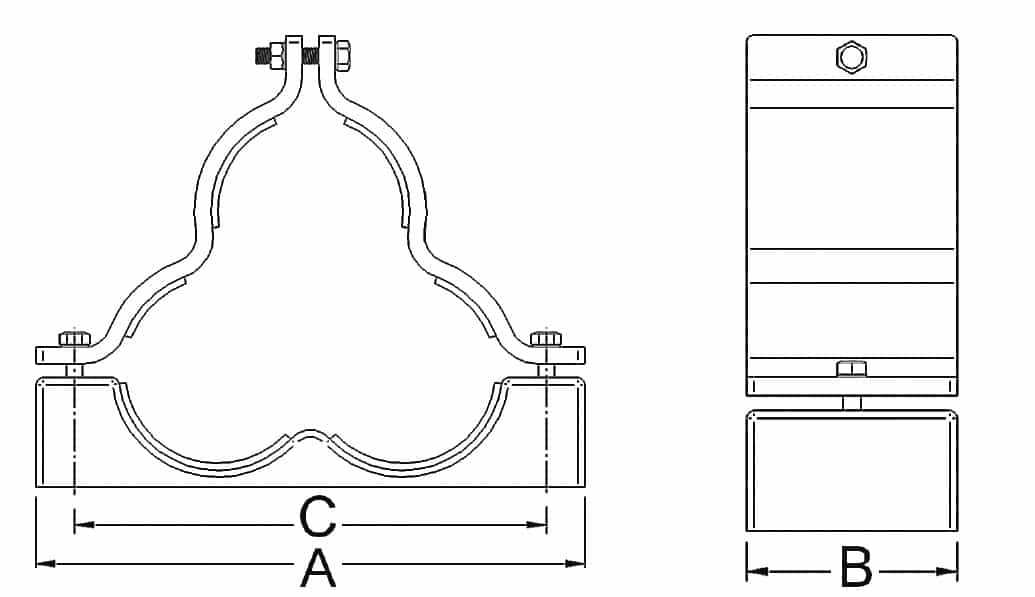

Also available are Prysmian Orion Shaped Cleats which feature deep cast bases to aid in easy cable installation.Prysmian Orion Shaped Trefoil Cable Cleats (Aluminium) LV MV HV

Cable and Cleat Selection Cable Cleat Details
Prysmian BICON 376 Orion Cable Cleats Cable Diameter Dimensions (mm) Weight (kg) Stud Size
A C B
Standard Cable Cleat Epoxy Coated Cable Cleat Min Max
376SR05 376SE05 85 95 320 260 100 3.4 M12
376SR06 376SE06 95 105 340 280 110 4.2 M12
376SR07 376SE07 105 115 360 300 120 4.9 M12
376SR08 376SE08 115 125 380 324 130 5.5 M12
376SR09 376SE09 125 135 400 344 140 6 M12
376SR10 376SE10 135 145 420 370 150 6.7 M12
376SR11 376SE11 145 155 450 390 150 7.6 M12

Prysmian Orion Shaped Trefoil Cable Cleats (Aluminium) LV MV HV

Trefoil Cable Cleats

Prysmian cable cleats for trefoil cable clamping single core power cables
