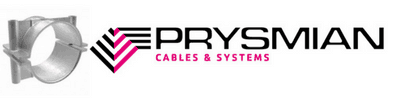

Prysmian Two Bolt Cleat (Cast Iron Fire Resistant Cable Cleats)

Cable Cleats

Prysmian Two Bolt Cleats are two piece, two fixing cable cleats which are LUL approved and is suitable for all types of cable routes and environments with operating temperatures -60°C to +105°C. Prysmian Two Bolt Cleats are able to withstand a 2 hour excursion to 1,000ºC.

Prysmian two bolt cable cleats are part of the Prysmian fire resistant range of cable cleats with two bolt fixing are suitable for supporting cables with 51mm to 89mm outer sheath diameter.

Prysmian Two Bolt Cleats Features & Benefits

• Suitable for cleating cables with diameters 51 to 89mm
• Hot dip galvanised finish on cast iron
• Two-piece, two fixing design
• Can be double stacked on common fixings
• Operating temperature -60ºC to +105ºC
• Can withstand a 2 hour excursion to 1,000ºC
• Can be used for all types of cable routes
• Suitable for all environments
• LUL APR Product ID 1961
• Allows fire performance cables to meet the requirements of BS 6387:1994, BS 5839-1:2002, BS7346-6:2005 & BS8491:2008

Two Bolt Cable Cleats

Cable cleats with two bolt fixing design are available in aluminium, plastic, cast iron and high specification LSOH polymer material.

➡ Prysmian also have a range of plastic two bolt cable cleats manufactured from black nylon 66 with two piece, two fixing cable cleats for 50-94mm cable diameters. A Low Smoke Zero Halogen version is also available for use with Prysmian Draka Saffire OHLS and Afumex cables.

➡ View the complete range of Fire Resistant Cable Cleats.

PRYSMIAN Two Bolt CLEATS Performance Data

• Type – 6.1.1 Metallic
• Impact Resistance – 6.2.5 V.Heavy
• Lateral Load – 3.7 -> 8.2 kN
• Axial Load – 1.332 -> 5.855 kN
• Needle Flame – > 120 seconds

LUL Approved (London Underground) Cable Cleats Product ID 1961.

BS EN 50368:2003 Cable Cleats for Electrical Installations has been withdrawn and replaced by BS EN 61914:2009.

Installing Two Bolt CLEATS

The cable cleat should be mounted on suitable fixings. When mounting directly on channel, adaptor plates 380AG02 should be used.

➡ For further information, specification and selection details about Prysmian Two Bolt Cleats refer to the product sections below – see Prysmian Cable Cleats to view cable support clamps for LV, MV & HV cables including short-circuit protection for 11kV and 33kV cables.

View the complete Prysmian range of Single Way Cable Cleats.

See more: Prysmian Cable Cleats, Joints, Glands & Jointing Tools

Prysmian – mv hv 11kv 33KV CABLE ACCESSORIES

Prysmian manufacture the BICON range of electrical cable accessories including cable joints, terminations, glands and cleats to enable the installation of LV-HV power cables; contact T&D to discuss your 11kV-33kV requirements for jointing, terminating, cleating and glanding of medium voltage and high voltage cables.
