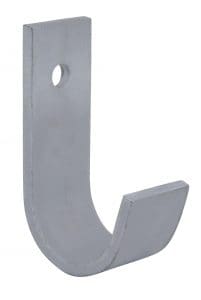

SHA3 Cable Hooks – Type A Up To 100mm Cable Diameters

Cable Hooks

Ellis Patents SHA3 are suspension cable hooks manufactured from mild steel and hot dipped galavnised –  the cable hooks are used to hang or suspend LV MV HV cables on walls or support structures where the maximum cable diameter is 100mm.

➡ Thorne & Derrick distribute a comprehensive range of steel cable hooks in accordance with the 18th Edition of the IET Wiring Regulations (BS7671) – also available from Ellis Patents are galvanised steel or non-metallic J type cable hangers and cable cleats to provide short circuit restraint to all type of LV (Low Voltage), MV (Medium Voltage) and HV (HIgh Voltage) cables.

SHA3 Cable Hooks

• Ellis Patent Cable Hooks
• Cable Hook Part Number – SHA3
• Cable Hook Type – A
• Cable Dia (mm) – Up to 100
• Dimensions T (mm) – 155
• Dimensions U (mm) – 25
• Dimensions V (mm) – 13
• Material Size W (mm) – 50
• Weight (g) – 1300
• SWL (kg) – 250

Cable Hooks – LV MV HV Cable Suspension Hooks – Dimensions

Cable Hooks – LV MV HV Cable Suspension Hooks
