Sheath Voltage Limiters

Ensto RNL HC are sheath voltage limiters suitable for 0.6kV – 4.8kV cable sheaths for connection to single point bonded sections dedicated to the protection of DC powered equipment in substations or on trains. HC surge arresters are designed for overvoltage protection of Power Transmission & Distribution underground cable sheaths.

The design of Ensto RNL HC sheath voltage limiters (SVL’s) are in accordance with CIGRE recommendations and IEC 60099-4 principles.

  • Part Number : ENSTO 7250013
  • Sheath Voltage Limiters SVL : ENSTO RNL HC
  • Rated voltage Ur : 1 kV up to 18 kV
  • Nominal discharge current : 10 kA
  • High current impulse withstand : 65 kA
  • Long duration current impulse withstand : 150 A
  • High resistance to climatic stresses
  • Optimized electrical performance
  • Long creepage distance
  • Maintenance-free Sheath Voltage Limiters SVL

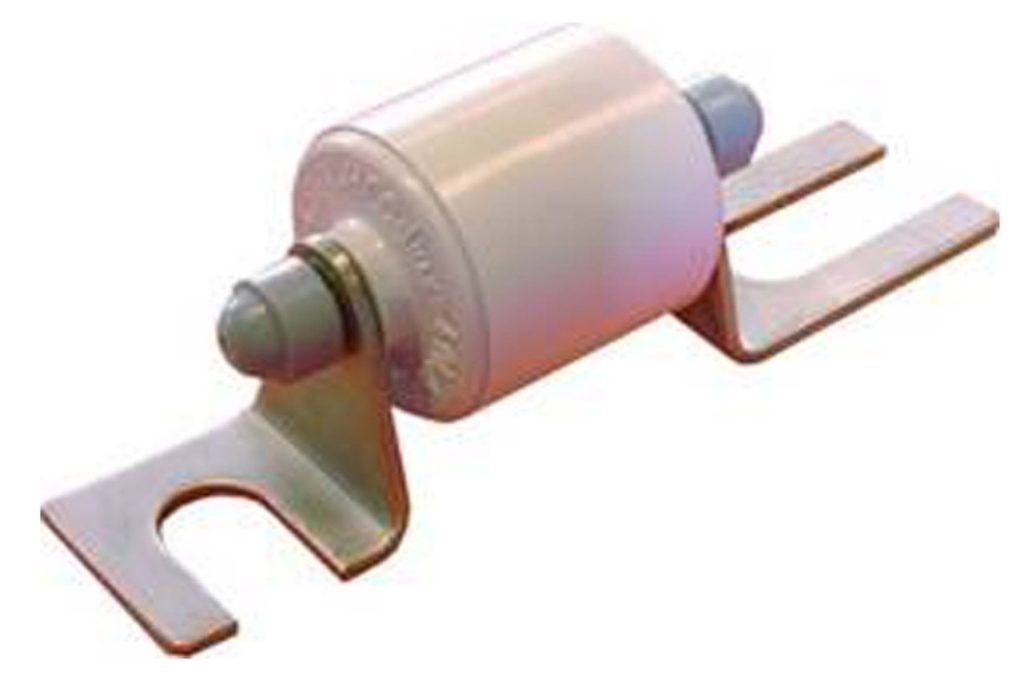

Ensto RNL HC 0.6kV – 4.8kV

Ensto RNL HC 0.6kV – 4.8kV


RNL HC Sheath Voltage Limiter

Technical Specification

Temperatures

Max. operating temperature: +60 °C
Ambient temperature : -40°C to +40°C
Humidity: 100% at 25 °C (max)
Storage temperature: -40 … +60 °C



Electrical Values

Operating voltage: 0.8 to 4,8kV
Rated discharge current: 10 kA
Dry lightning impulse withstand voltage: 10 … 25 kV
Wet power frequency withstand voltage: 4 … 10 kV



Mechanical

Tightening torque: 9 N.m
Max. continuous load: 50 N
Highest permitted load in use: 0.1 kN



Ratings

Rated voltage: 1 … 6 kV
Degree of protection: IP67
Rated frequency: 50-60Hz
Fire resistance class: V0 / UL94



Short-circuit Characteristics

Rated short time withstand current: 1 kA rms / 0,2 s



Sheath Voltage Limiters SVL Specification HC1 HC2 HC3 HC6
Rated voltage Ur 1 2 3.3 6
Continuous operating voltage Uc 0.8 1.6 2.7 4.8
Nominal discharge current In (kA 8/20) 10 10 10 10
High current impulse withstand (kA 4/10) 65 65 65 65
Long duration current withstand (A 2000 µs) 150 150 150 150
 Maximum residual voltage (at 10 kA 8/20) 3 6 10 18

Ensto Varisil HC Sheath Voltage Limiters Dimensions

Ensto RNL HC Dimensions

Ensto RNL HC Dimensions

Mounting Options:

b0: Medium Brackets
b1: Short Brackets
b2: Long Brackets
b3: Asymmetrical Brackets

Dimensions HC1 HC2 HC3 HC6
L1 (± 1,5 mm) 31.5 39.5 51 63
L2 (± 2 mm)    b0 69.5 77.5 89 101
b1 55.5 63.5 75 87
b2 106.5 114.5 126 138
b3 81.5 89.5 101 113
d x L (mm)       b0 14 x 18
b1 13 x 26
b2 10 x 25
b3 18 x 38
L2 (± 2,5 mm) b0 107.5 115.5 127 139
b1 91.5 99.5 111 123
b2 143.5 151.5 163 175
b3 139.5 17.5 159 171
H (mm) b0/b1/b2/b3 59
80
P (mm) b0/b1/b2/b3) 48
40
e (mm) b0/b1/b2/b3 2
3
Ensto RNL HC

Ensto RNL HC

  1. End stud
  2. Locking nut
  3. Synthetic housing
  4. Contact disk
  5. Metal oxide resistor

Selecting the correct Sheath Voltage Limiter

The choice of the Sheath Voltage Limiters SVL’s must be made according to the application:

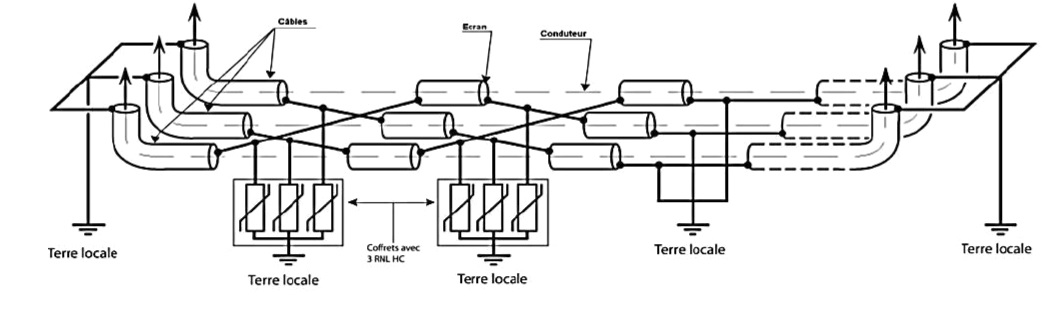

  • ENSTO RNL HC range for the mounting in cabinets with cross bonding
  • ENSTO VARISI HC for mounting at ends of single point bonded sections

The selection of the appropriate Sheath Voltage Limiters within the range is based on two considerations having opposite impacts :

  • The 1.2/50 lighting impulse withstand level of the sheath, which depends on the external insulation of the cable tends to minimise the required protective level
  • The voltage induced at the connecting point of device in case of short circuit on the main conductor, which depends on the short circuit power and on the length of the cable to be protected, leads to maximize the rated voltage

A protective margin greater than 20% is recommended between the protective level of the surge arrester (Up) and the lightning impulse withstand level of the sheath (Uw).

On the other hand, the level/time values (Usc/T) of the voltage induced on the sheath in case of short circuit must be below the minimum voltage vs time characteristic curve of the surge arrester.

Whenever several references meet both requirements, the final choice will be made by the user with respect to operation requirements and priorities.

Basically, the surge arrester with lower rated voltage will provide improved protection whereas the surge arrester with higher rated voltage will better withstand short circuit stresses. Any surge arrester in-between will be a compromise.

Should no reference fulfil both requirements, the protection should be achieved at shorter intervals so as to allow the use of a surge arrester having a lower rated voltage.

Example : Cable features:

  • Single point bonded cable
  • Uw = 55 kV
  • usc = 300 V/kA/km
  • sc = 31.5 kA / T = 1 s
  • L = 1.8 km

Selection of Sheath Voltage Limiter :

  1. VARISIL™ HC
  2. 20% protective margin : Up < Ut/1.2 thus Up < 46 kV
  3. Voltage withstand under short circuit conditions : Ucs = usc x lcc x L = 17 kV and U (T = 1s) = 1.2 x Ur gives 1.2 x Ur > 17 so that Ur > 14.2 kV

Here, the calculation leads to VARISIL™ HC 15 model.
