6.6kV 7.2kV Cable Termination Kits Single Core 240-300sqmm SPS 1TIS-7.2X-C

Cable Termination Cable Joints - Heat Shrink MV HV

6.6kV cable termination kits using heat shrink technology are suitable for terminating medium/high voltage (MV-HV) single core polymeric cables (XLPE EPR)  – this includes cables with copper wire/tape screen and armoured (wire armoured/braided) or unarmoured cable for indoor termination of 6.6kV cables, outdoor version also available.

SPS 1TIS-7.2X-C cable termination kit suits 6.6kV 7.2kV cables with 240sqmm, 300sqmm single core conductors.

6.6kV 7.2kV Cable Termination

HV High Voltage – indoor

  • Cable Termination Type – Heat Shrink
  • Termination Location – Indoor (Cable Box, Substation, Switchgear, Transformer, Motor)
  • Number of Cores – Single Core
  • Conductors – 240sqmm, 300sqmm
  • Cable Type – XLPE EPR (Polymeric)
  • Heat Shrink Standard Tail Length – 350mm
  • Termination Kit Order Code – SPS 1TIS-7.2X-C
  • Suit MV HV Power Cables – BS6622, BS7835, BS7870, BS6883, BS7917 & IEC60502-2

➡ High Voltage Cable Termination 6.6kV Kit List

➡ 6.6kV Cable Terminations | 3 Core Indoor XLPE | 3 Core Outdoor XLPE | 11kV Terminations

6.6kV 7.2kV Cable Termination Kits

6.6kV Cable Termination Bushing Boots | Cable Glands | Screen Earth Kits | Cable Lugs

Single Core XLPE 7.2kV INDOOR Terminations

6.6kV 7.2kV Cable Termination Kits

The following enables the termination kit selection for 6.6kV single core indoor cables:

 6.6kV/7.2kV Cable Termination Indoor  Cable Termination Kit Range 6.6kV/7.2kV Cable Termination Outdoor
1TIS-7.2X-A 25-50sqmm 1TES-7.2X-A
1TIS-7.2X-B 70-185sqmm 1TES-7.2X-B
1TIS-7.2X-C 240-300sqmm 1TES-7.2X-C
1TIS-7.2X-D 400-500sqmm 1TES-7.2X-D
1TIS-7.2X-E 630-1000sqmm 1TES-7.2X-E
Copper Wire & Copper Tape Screen MV HV Cable Terminations

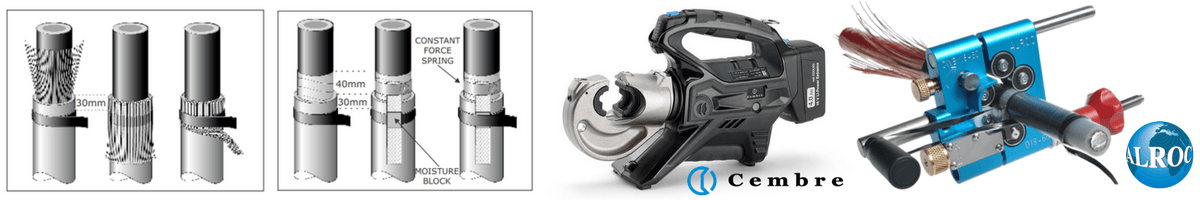

SPS 1TIS-7.2X-C heat shrink cable terminations are suitable to terminate medium/high voltage single core polymeric insulated cables with XLPE or EPR insulation – for copper wire screen cables the copper wires should be bent back by the jointer and pressed into the red mastic sealant 30mm below the cable sheath cut.

The screen wires of the MV-HV cable can then be twisted or plaited and bonded to suitable earth point. For copper tape screen cables earthing of the cable screen is achieved using a copper earth braid (solderless screen earth kit) secured to the screen using constant force spring.

Cable Terminations

Full range of Cable Tool to support MV HV cable termination installation | Cembre Cutting & Crimping Tools | Alroc Jointing Tools

Heat Shrink Cable Terminations 6.6kV 11kV 33kV

Cable terminations using heat shrink technology for MV-HV (6.6kV 11kV 33kV) cable connection to switchgear, transformers, overhead line and pole-mounted – see also Heat Shrink HV Cable Joints
