Voltage Detectors 25kV – Pfisterer KP-Test 5R For Catenaries

Voltage Detectors 25kV

Voltage Detectors

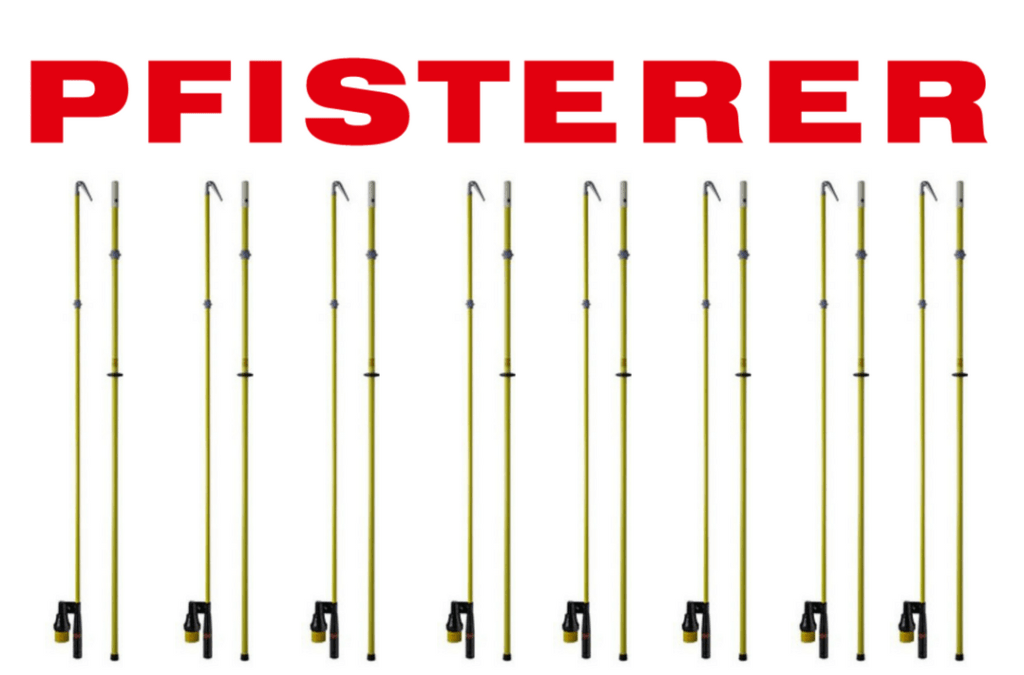

Pfisterer KP-Test 5R is a capacitive voltage detector designed for use on railway catenaries. The voltage detector presents the operating voltage when brought into contact with the conductor.

Other versions of the voltage detector for rail power systems with different languages or with other signal modes are available on request.

Voltage Detector

Technical Specification

• Bright LED’s for clear recognition
• Particularly loud, integrated audible signal
• Extensive self-test functions at switch-on
• Contact electrode in hook form with contect pin for optimum contact with the catenary
• For single-phase networks

➡ See also – Voltage Detectors Medium Voltage
                              Voltage Detectors High Voltage

♦ When using voltage detectors to establish presence of operating voltages on MV-HV power cables or overhead lines there may be a requirement to apply field equipment earths, portable earthing, to equipment which is working adjacent to Live conductors to discharge any induced voltages.

Pfisterer KP-Test 5R

Voltage Detector Technical Specification
