Cable Bridge

Cable Safety Equipment | Workplace Safety | UK & Export Sales

The CableSafe® Cable Bridge is used to improve safe working conditions where industrial cables and hoses are frequently used and where pedestrians, employees and/or contractor need to be kept safe.

The Cable Bridge is ideal when the walkway is used for small vehicles. The standard cable bridges are designed to safely suspend cables and hoses during construction or maintenance over walkways and roads.

Thorne & Derrick supply the complete range of Safety Tools & Equipment to enable safe working in sectors such as the construction, renewables, data centres, rail, manufacturing and oil, gas, petrochemical industries.

With welding and installation efforts being the company’s daily operation, the cable bridges are constantly in use. The operators indicate that the cable bridge saves a lot of time for temporary measures to be set up and is an approved cable management system.

The Cable Bridge can be used for all your company cable and hose requirements. This promotes good housekeeping and eliminate slip and trip hazards in the workplace.

More from CableSafe‘s range of Safety Tools & Equipment ➡

Improve safe working conditions

Cable Guard Alternative

The CableSafe® Cable Bridge eliminates cables routed on the walkway and therefore will reduce the need for Cable Guards on the floor with the ability to hold up to 1000kg.

The beauty of the Cable Bridge is that the cables are managed on the bridge unlike the Cable Guards that are on the floor. This was the cables routed on the walkway are eliminated, meaning there is less need for guards on the floor.

The Cable Bridge has also been designed in a way such that any small vehicles such as bikes, pallet wagons and forklifts can pass through safely. This bright yellow cable bridge can be spotted from a mile away and helps to save a lot of time for setting up especially for temporary measures.

Suspends cables over a longer distance
Prevents slip, trip and fall accidents
Provides a clean work environment and therefore improves housekeeping

The Cable Bridge is ideally used in combination with CableSafe Safety Hooks. Average height 2.25 meter width up to 2 meter. Can be extended up to 5 meter in length

The Cable Bridge is ideally used in combination with CableSafe® Safety Hooks. Average height 2.25m width up to 2m. Can extend to up to 5m in length.

Cable Bridge Characteristics

Tested method to suspend cables and wires
Provide a clean walkway or work location
Holds up to 500 kg cable weight – tested with 1.000 kg
Material: constructed with standard steel
Powder coated yellow, optional hot dip galvanized for use outside
Height 2.25 meter; 2 meter length; 1.20 meter width [7.3 x 6.5 x 3.9ft]
Weight approximately 85 kg [190 lbs]
Transported on standard pallets [1.2 m x 0.8 m]
Custom sizes available on request

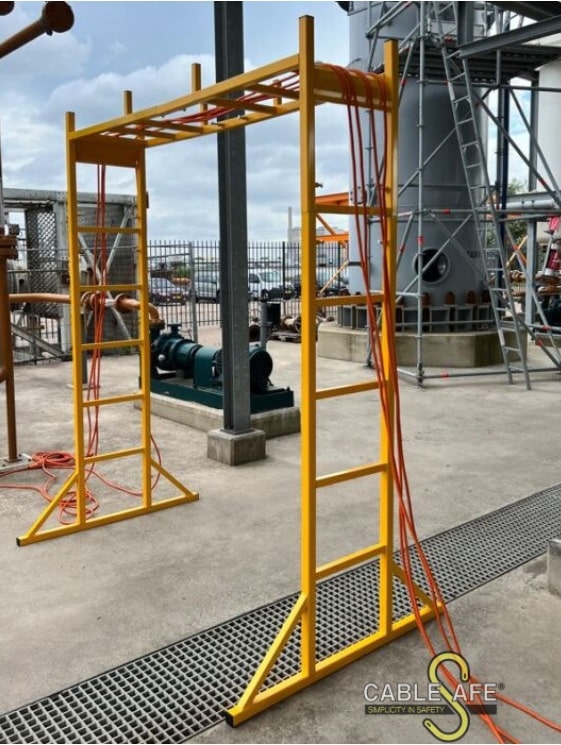

Bridge to suspend cables over a walkway

Cable Safety Equipment

CableSafe® Safety solutions are critical cable essentials and are well proven construction safety products. The CableSafe® range of cable hooks can be used during maintenance, turnaround, outages, shutdowns, construction work to suspend cables and hoses and other work gear and equipment from the working space.
