Removing LC Shield MV Medium Voltage Cables – Alroc PF3/06

Published 22 Mar 2018

Removing LC Shield

Jointers Cable Tools | Low Medium High Voltage | LV MV HV 11kV 33kV 66kV 132kV

  • Uploaded By Chris Dodds – Thorne & Derrick Sales & Marketing Manager

Cable Stripping Tool

Remove LC Longitudinally Corrugated Copper Tape Shield From High Voltage Cables

Alroc PF3/06 cable jointing tools are used by cable jointers to remove the copper tape shield from MV-HV medium/high voltage power cables.

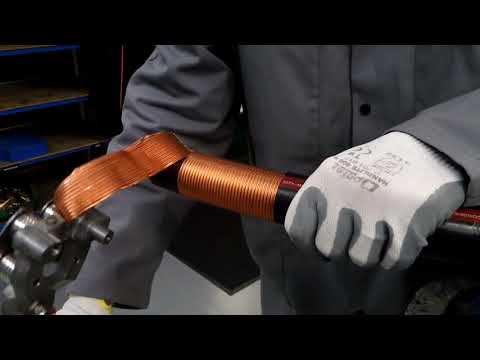

The video demonstrates removing LC shield without scoring into the semi-conductive screen layer below the copper tape shield – the Alroc PF3/06 cable jointers tool features grooved bushings so that the cable cutting blade sits on the highest point of the LC shield.

The scoring depth is set to .3 mm to guarantee reliable cutting without accidental screen cutting or deep scoring.

Safe for the cable. Safe for the hands.

T&D stock Alroc cable jointing tools to enable the removal of outer cable sheath, XLPE insulation and semi-conductive screens (bonded and strippable).

Associated Cable Jointing Tools

♦ Alroc PG HTA Sheath Stripping Pliers – see remove cable sheath



Alroc PG HTA Sheath Stripping Pliers

♦ Alroc LH Insulation Stripping Tools – see remove cable insulation

Alroc LH Insulation Stripping Tools



♦  Alroc 8YR0-LHM Peelable Semicon Screen Removal Tools – see remove semicon screen

Alroc 8YR0-LHM Peelable Semi-Conductor Screen Removal Tools
