Street Lighting Cut Outs
uploaded by Chris Dodds - Thorne & Derrick Sales & Marketing Manager
Lucy Zodion street lighting cut-outs are approved for use on every UK DNO Network.
Thorne & Derrick together with Lucy Zodion can offer a range of SLF street lighting cut-outs (SLCOs) which are now approved for use by every Distribution Network Operator (DNO) in the UK.
The high level of specification status of their cut-outs for street lighting applications on both the UKPN and WPD networks is a clear demonstration of Lucy Group’s commitment to keeping LV electrical connections safe and reliable.
The Lucy Zodion SLF range of street lighting cut outs use high quality materials and provide a wide range of features that help ensure robust and reliable protection and isolation across a number of street lighting network types and applications.
Additionally, the Lucy Zodion brand of Fortress type feeder pillars are extensively specified and installed throughout the UK DNO LV Electricity Distribution network.
âž¡ For further information about how Lucy Zodion provide control and power distribution products for street lighting applications, please review the Lucy Titan (Cut-outs) and Lucy Trojan (Isolators) ranges of products.
Here is the current street lighting cut out approval listing according to UK DNO designation:
| DNO Approved Products | DNO Area | ||
| DNO | Lucy Zodion Code |
Cut Out Description | |
| WPD* | THM0048847 | SLF IPC Type 1 HEX Drive Clear Cover (SNE) |
 |
| THM0041767 | SLF IPC Type 2 HEX Drive Clear Cover (CNE) |
||
| ENW | 0260009009 | SLF 25A SLCO Type 1 (SNE) |  |
| 0260010009 | SLF 25A SLCO Type 2 (CNE) | ||
| NPG | THM0001978 | SLF 25A SLCO TYPE 2(CNE) POLYCARBONATE |  |
| THM0001979 | SL DNO DP 25A SLCO (CNE) POLYCARBONATE | ||
| THM0001970 | SLF 25A Single Pole SNE | ||
| SPEN | 0260009009 | SLF 25A SLCO Type 1 (SNE) |  |
| 0260010009 | SLF 25A SLCO Type 2 (CNE) | ||
| SSE | 0260009009 | SLF 25A SLCO TYPE 1 (SNE) |  |
| 0260010009 | SLF 25A SLCO TYPE 2 (CNE) | ||
| 0260026007 | SL DNO DP 25A SLCO (CNE) | ||
| UKPN* | 0260011007 | SLF 25A SLCO TYPE 1 (SNE)3mm HEXDRIVE |  |
| 0260012009 | SLF 25A SLCO TYPE 2 (CNE)3mm HEXDRIVE | ||
*sole supplier status
Street Lighting | House Service | DNO | Heavy Duty – complete range of Cut Outs
LVÂ ♦ MVÂ ♦ HV
T&D distribute the most extensive range of LV, MV & HV Cable Jointing, Terminating, Cable Pulling & Installation Equipment – we service UK and international clients working on underground cables, overhead lines, substations and electrical construction at LV, 11kV, 33kV and EHV transmission and distribution voltages.
LV – Low Voltage Cable Joints, Glands, Cleats, Lugs & Accessories (1000 Volts)
MV HV – Medium & High Voltage Cable Joints, Terminations & Connectors (11kV 33kV EHV)
Cable Laying – Underground Cable Covers, Ducting, Seals & Cable Pulling Equipment
T&D, CATU Electrical Safety & Arc Flash Protection Specialists for SAP’s, Linesmen, Jointers & Electrical Engineers – Largest UK Stockist
Street Lighting Cut Outs
Uploaded By - Chris Dodds (Thorne & Derrick Sales & Marketing Manager)
Press Release: Lucy Zodion
Lucy Zodion Ltd have secured sole approval for street lighting cut outs in the Western Power Distribution (WPD) Network – the Lucy SLCO cut outs are now approved by all UK Distribution Network Operators (DNO’s).
Lucy Zodion Ltd, leading UK manufacturer of cut-outs, controls, feeder pillars and street lighting isolators, is pleased to announce its street light cut outs (SLCOs) are now part of the G81 specification framework, won by Lucy Group for industrial and commercial underground connected loads up to and including 11kV.
WPD exclusively specifies a number of Lucy Group secondary power distribution solutions throughout the East and West Midlands, South West and Wales regions.
The updated specification means that Lucy Zodion’s street lighting cut-outs are now approved by every Distribution Network Operator (DNO) throughout the UK – the Lucy Titan range of cut outs include several market-leading design features such as the cam lever handle that enables effortless release of the fuse carrier in one movement or the generous cabling space to terminate a wide variety of conductor types and sizes. Where dual or triple cable entries are required, a choice of either insulated or brass cable gland plates is available, the latter being specifically provided for the termination of armoured SWA cables.
âž¡ For further information about how Lucy Zodion provide control and power distribution products for street lighting applications, please review the Lucy Titan (Cut-outs) and Lucy Trojan (Isolators) ranges of products.
Should you require any technical support or have any commercial requirements about G81 Approved 11kV/33kV Cables & Accessories please do not hesitate to contact Thorne & Derrick Sales Team.

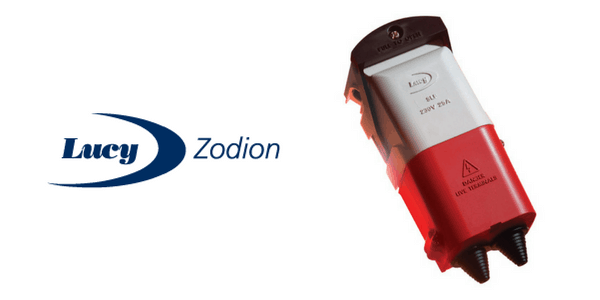

Lucy Titan2 Street Lighting Cut Outs
Furthermore, Western Power Distribution (WPD) specifies Lucy Zodion SLCOs onto contract for exclusive use within their region.
The G81 standard included cut-outs for street lighting control are:
Lucy Zodion is one of the UK’s leading manufacturers of street lighting cut outs and is dedicated to adhering to industry standards, as well as its own quality procedures.
Lucy Zodion’s SLCOs are compliant with BS7654, which covers all aspects of the cut out from the materials in which it is manufactured, to a series of tests relating to temperature, ingress protection, current and mechanical strength.
Other features of the approved products include clear covers, enabling quick and safe inspections, Insulating Piercing Connectors (IPC) to protect against insulation shrink back, as well as many more high quality benefits associated with the Lucy Zodion SLF range.
Street Lighting Cut Outs | Isolators | Feeder Pillars
T&D are Specialist Distributors to UK Distribution Network Operators (DNO’s), NERS Registered Service Providers, ICP’s and HV Jointing Contractors of an extensive range of LV, MV & HV Jointing, Earthing, Substation & Electrical Eqpt – this includes 11kV/33kV/66kV cable joints, terminations and connectors for both DNO and private network applications.
Contact our UK Power Team for competitive quotations, fast delivery from stock and technical support or training on all LV-HV products.
Key Product Categories: Duct Seals | Cable Cleats | Cable Glands | Electrical Safety | Arc Flash Protection | Cable Jointing Tools | Cable Pulling | Earthing | Feeder Pillars | Cable Joints LV | Joints & Terminations MV HVÂ
